Counting Chamber Neubauer
Product Code : LSK-CL-11234

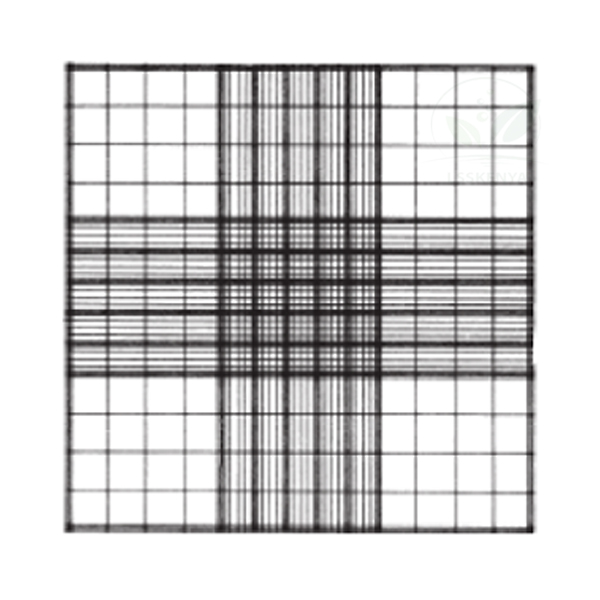

Counting Chamber Neubauer (SKU LSK-CL-11234), also called a haemocytometer, is a glass counting chamber with an improved Neubauer double grid, a chamber depth of 0.1 mm and a counting area of approximately 9 mm³. It is used for counting cells under the microscope in clinical laboratories with basic diagnostic activity, and it suits haematology practicals in DMLT, BMLT and B.Sc. courses. Science Lab Supplies can dispatch it from Ambala, India, to hospital laboratories, medical colleges and laboratory equipment dealers.
Specifications
The improved Neubauer chamber is specified line by line in the table. Put simply, it is a glass slide-type chamber carrying two ruled counting grids, with a 0.1 mm depth between grid and cover and a counting area of approximately 9 mm³, intended for cell counting in a basic clinical laboratory.
| Specification | Value |
|---|---|
| SKU | LSK-CL-11234 |
| Also known as | Haemocytometer |
| Material | Glass |
| Grid pattern | Improved Neubauer |
| Number of grids | Double grid |
| Chamber depth | 0.1 mm |
| Counting area | Approximately 9 mm³ |
| Intended use | Cell counting |
| Application | Clinical laboratory with basic diagnostic activity |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Neubauer Counting Chamber
A diluted sample is drawn under the cover glass by capillary action, filling the 0.1 mm deep chamber over the improved Neubauer grid. Cells lying in the ruled squares are then counted under the microscope, and the count is converted to cells per unit volume from the dilution and the grid dimensions.
- DMLT and BMLT haematology: manual counts of red cells, white cells and platelets, viewed under a Compound Biological Microscope.
- Tallying cell types during counting practice with a Manual Differential Cell Counter.
- B.Sc. biology and microbiology: counting yeast cells, spores or other particles in suspension.
- Cross-checking manual counts against automated haematology results in teaching laboratories.
Clean the chamber and cover glass with care after each use and never scratch the ruled grid; treat blood samples as potentially infectious and handle them with gloves.
Standard Scope of Supply
The Counting Chamber Neubauer is supplied as one glass chamber with the improved Neubauer double grid, 0.1 mm depth and approximately 9 mm³ counting area. Cover glasses, diluting pipettes or a microscope for the same bench can be added to the quotation if required.
Packing, MOQ and Lead Time
You can request a quotation for one counting chamber or for one per student pair in a haematology laboratory. Each quotation spells out packing, delivery time and price for that quantity, and microscopes, cell counters or blood tubes can sit on the same quotation.
With its Importer-Exporter Code, Science Lab Supplies can ship to buyers in South Africa, Qatar, Sri Lanka, Vietnam, Malaysia and Peru. Chamber quantities can be sent through the contact page or listed in the enquiry cart; for a formal tender, start from the lab tender page.
Frequently Asked Questions
What does improved Neubauer double grid mean?
The glass chamber carries two ruled counting grids in the improved Neubauer pattern, so two samples, or two loadings of the same sample, can be counted on one chamber at 0.1 mm depth.
What is the chamber depth?
The depth between the grid and the cover glass is 0.1 mm. Together with the grid area, this depth gives the volume over each square that is used to calculate the cell count.
Is this the same as a haemocytometer?
Yes. A Neubauer counting chamber is a type of haemocytometer. The range also includes a Haemocytometer, Improved Neubauer Pattern, with two counting grids of 400 squares, shown in the list below.
Who supplies the Counting Chamber Neubauer?
Science Lab Supplies quotes and supplies the chamber from Ambala, India, and can pack it with microscopes, counters and other clinical laboratory equipment for a single delivery.
