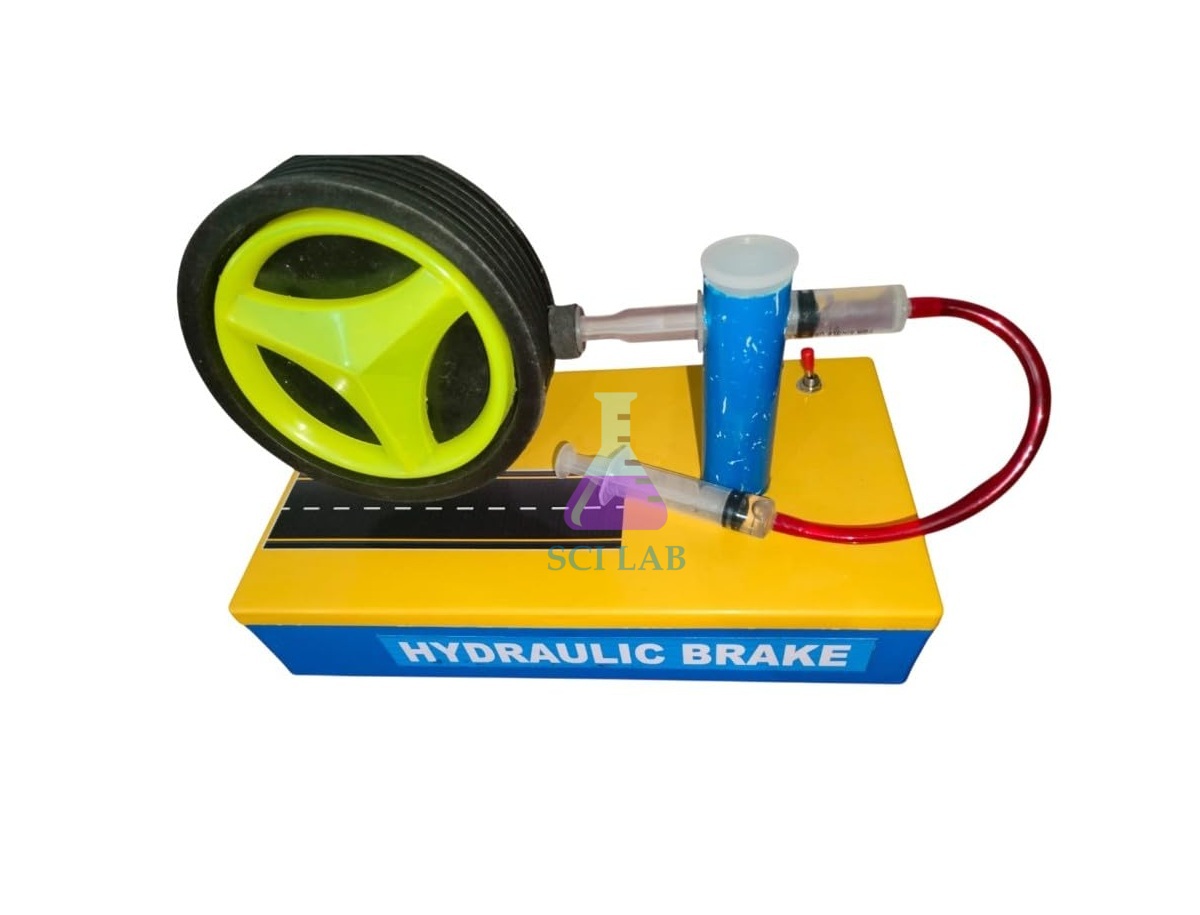

Hydrostatic Pressure Mechanical Brake Model
.jpg)
Product Code : SCL-SK-12141
Hydrostatic Pressure Mechanical Brake Model (SKU SCL-SK-12141) demonstrates how pressure in a confined fluid transmits force to operate a brake, applying Pascal’s law to a real mechanism. It suits school physics, polytechnic and engineering labs, and automobile and TVET workshops. Science Lab Supplies fabricates the model in its Saha, Ambala factory (Plot 448, HSIIDC Industrial Area, India) and supplies schools, colleges, training institutes, tender contractors and distributors from there.
Specifications
The table gives each specification of the hydraulic brake model. In short, an input lever or piston, a fluid line and a brake mechanism let learners follow force from the input through the fluid to the brake; pressure range, piston size, brake type and working fluid are confirmed on the quotation.
| Specification | Value |
|---|---|
| SKU | SCL-SK-12141 |
| Type | Hydrostatic pressure (hydraulic) brake demonstration model |
| Principle | Pascal’s law: pressure in a confined fluid is transmitted equally |
| Demonstrates | Hydraulic pressure transmission, force multiplication, brake actuation |
| Observations | Input force, fluid movement, brake response |
| Capacity | Not applicable (hydraulic/mechanical model) |
| Pressure limit, cylinder layout, piston size, brake type, working fluid, dimensions | Confirmed on the quotation |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Hydrostatic Pressure Brake Model
Learners can press the input slowly, watch the piston move and the brake engage, and relate the applied force to the braking effect. The model bridges the fluid-pressure chapter of senior secondary physics and brake-system lessons in automobile, mechanical and TVET courses.
- Class 11 physics (NCERT): Pascal’s law and its use in hydraulic brakes, after showing with the Fluid Pressure Apparatus (Spouting Cylinder) that pressure increases with depth.
- Diploma and B.Tech mechanical or automobile labs: hydraulic brake operation.
- ITI and TVET automotive training: how pedal force reaches the brake.
- Fluid mechanics demonstrations of force multiplication between pistons, and of how a Bourdon gauge reads pressure, using the Calibration of a Bourdon Pressure Gauge apparatus.
Standard Scope of Supply
The Hydrostatic Pressure Mechanical Brake Model is supplied as one demonstration unit as described above. Whether a pressure gauge, working fluid or activity guide is packed with it depends on the version offered; the quotation lists every part, and a gauge can be quoted separately if needed.
Packing, MOQ and Lead Time
A quotation can be raised for a single model for a lecture bench or several for workshop groups. It states packing, delivery time and price for that quantity, and STEM science kits in India such as engine or mechanics models can be added so one enquiry covers the automobile or physics lab.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Peru, Egypt, Iraq, Nigeria, Kenya and Ghana. Automobile and physics departments can raise an enquiry on the contact page, bundle items in the enquiry cart, or follow the tender procedure on the lab tender page.
Frequently Asked Questions
What principle does the brake model demonstrate?
Pascal’s law: pressure applied to a confined fluid is transmitted equally throughout it, so a force at the input piston is carried through the fluid to actuate the brake.
What pressure range and brake type does it use?
Both are confirmed on the quotation, together with the working fluid and piston size. Send an enquiry through the contact page, naming the course it is for, and the reply will cover these details.
Is Science Lab Supplies the manufacturer or a trader?
Brake models like this are built in the company’s factory at Saha, Ambala, India, so Science Lab Supplies is the manufacturer, and schools and institutes receive their quotation from that factory directly.
Is it safe for student practicals?
Yes, under instructor supervision. Stay within the stated pressure limit, use only the approved fluid, do not operate it with leaking tubing, and keep fingers away from moving brake parts.
Related Pascal’s Law and Hydraulics Apparatus
The brake model applies a principle that simpler physics apparatus demonstrates directly. These items from the physics, chemistry, TVET and Science Kit ranges add Pascal’s law demonstrators, hydraulic presses, a hydraulic trainer, a pressure gauge tester and an engine model, all of which can share one quotation.
- Pascal’s Law Demonstrator — 8 cm metal sphere with nozzles, attached to a tube with a tightly fitted piston.
- Simple Pascal Law Experiment (Pressure String) — water streams the same distance from each hole when the piston is pushed in.
- Demonstration Hydraulic Press — two connected fluid-filled cylinders showing pressure transfer from the smaller piston.
- Hydraulic Press Model — two cylinders of different diameters, normal operating pressure 2–2.2 MPa.
- Fluid Pressure Apparatus, Hydraulic Press — plated cylinders of different diameters with discs for loading masses.
- Hydraulic Trainer Kit — single-acting cylinder with a 4/3-way valve and relief-valve pressure setting.
- Dead Weight Pressure Gauge Tester — tests pressure gauges up to 25 kg/cm².
- Two-Stroke Compression Ignition Engine Model — piston movement, port timing and compression ignition in a two-stroke cycle.
Browse the full Science Kit range, the Fluid Mechanics range, or all educational lab equipment.
