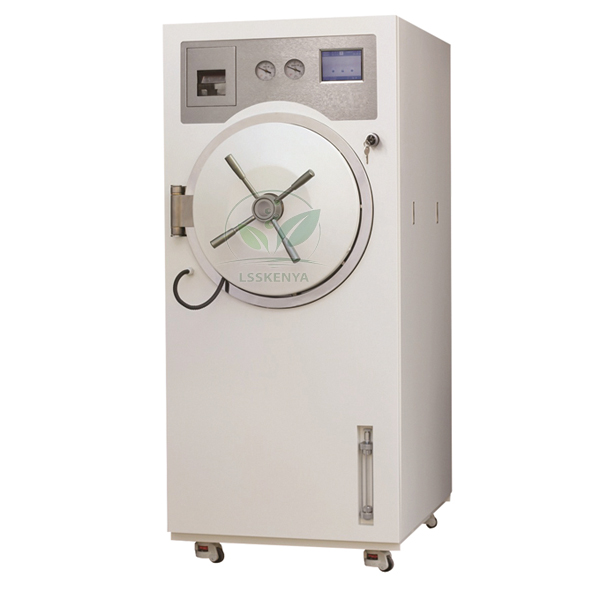

Horizontal Pulse Vacuum Autoclave
Product Code : LSK-A-11375
Horizontal Pulse Vacuum Autoclave (SKU LSK-A-11375) is a horizontal steam sterilizer with pulse vacuum and a built-in steam generator, offered in 100 L, 135 L, 185 L and 300 L sizes for wrapped or unwrapped instruments, dressing fabric, rubber tubes and liquids in medical institutions. Science Lab Supplies sources it and arranges quotation and dispatch from Ambala, India, for institutions, distributors and tender contractors.
Specifications
The table gives every specification of the four horizontal pulse vacuum sizes. In short, each has a 304 medical stainless steel chamber working at up to 0.23 MPa and 105–136 °C, a vacuum limit of −0.08 MPa, LCD status display, printer and multiple safety devices, running on 380 V, 50 Hz.
| Specification | Value |
|---|---|
| SKU | LSK-A-11375 |
| Type | Horizontal pulse vacuum steam autoclave |
| Capacity options | 100 L, 135 L, 185 L, 300 L |
| Chamber size | Ø400 x 850 mm; Ø500 x 710 mm; Ø500 x 950 mm; Ø632 x 1000 mm (100/135/185/300 L) |
| Chamber material | 304 medical stainless steel |
| Max working pressure | 0.23 MPa |
| Vacuum limit | −0.08 MPa |
| Working temperature | 105–136 °C |
| Temperature accuracy | ±0.1 °C |
| Sterilisation programs | Fabric, instrument, rubber, liquid, cavity |
| Test programs | B&D test, PCD test, leakage test |
| Display | LCD: temperature, pressure, time, running status, failure and warning codes |
| Steam source | Built-in steam generator |
| Control | Microcomputer temperature control |
| Drying | Residual humidity not more than 0.2% (instruments) and 1% (dressings) |
| Printer | Prints date, time and process parameters |
| Access control | Four-level authority management |
| Safety devices | Overheat auto protection, dual door safety lock, over-pressure relief valve, short-circuit and overpressure protection |
| Power consumption | 11 kW or 17 kW, depending on size |
| Power supply | 380 V, 50 Hz |
| External size | 1250 x 730 x 1660; 1110 x 750 x 1742; 1350 x 750 x 1742; 1400 x 890 x 1780 mm |
| Packaging size | 1450 x 1000 x 1950; 1370 x 890 x 2060; 1510 x 890 x 2060; 1700 x 1050 x 2090 mm |
| Gross weight | 310 kg; 470 kg; 540 kg; 830 kg |
| Loads | Solid, A-class cavity (dental hand-pieces, endoscopes) and implantable instruments, dressing fabric, rubber tubes |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Horizontal Pulse Vacuum Autoclave
Loads go into the horizontal chamber and the operator picks the fabric, instrument, rubber, liquid or cavity program. Pulse vacuum removes air before steam exposure, a drying stage follows, and the printer records date, time and process parameters, giving a written record of every cycle the autoclave completes.
- Instrument cycles, with items held in a covered Instrument Tray Stainless Steel, which can go into a steam sterilizer.
- Utensil loads such as the autoclavable Kidney Basin Polypropylene.
- Routine B&D, PCD and leakage test cycles run from the control panel.
Pressurised steam and hot surfaces are hazardous: have qualified technicians install it and let only trained staff operate it.
Standard Scope of Supply
The Horizontal Pulse Vacuum Autoclave is supplied as one sterilizer in the chosen capacity, fitted with its built-in steam generator, LCD controller, printer and safety devices as specified. Trays, consumables or installation support can be added to the same quotation on request.
Packing, MOQ and Lead Time
A quotation can cover one autoclave or several units for a group of facilities. It states packing, delivery time and price for the chosen capacity and quantity, and other laboratory instruments in India can be listed on the same order.
Under its Importer-Exporter Code, Science Lab Supplies can ship to buyers in Kenya, Ghana, Ethiopia, Tanzania, Uganda and the UAE. Send the capacity and quantity needed via the contact page or the enquiry cart; for a public tender, the lab tender page sets out the route.
Frequently Asked Questions
What test programs are included?
Besides the five sterilisation programs, the controller provides B&D test, PCD test and leakage test cycles, with status shown on the LCD and process data printed after each run.
What power supply does it need?
It runs on 380 V, 50 Hz; power consumption is 11 kW or 17 kW by size. Have a qualified electrician confirm that the site supply suits the unit before installation.
Who supplies the Horizontal Pulse Vacuum Autoclave?
Science Lab Supplies, based in Ambala, India, prepares the quotation for this sterilizer and arranges its packing and dispatch. Trays, basins and other laboratory items can be shipped in the same consignment.
