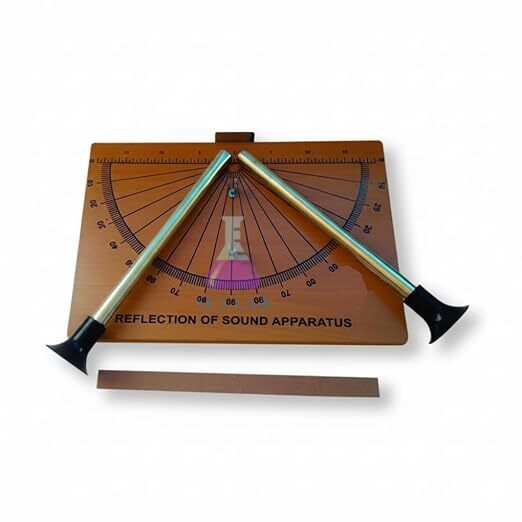

Law of Reflection of Sound Apparatus

Product Code : SCL-PL-12060

The Law of Reflection of Sound Apparatus is an educational physics experiment setup used for demonstrating and verifying the principles of acoustic wave reflection. Designed for high school science classrooms and university physics laboratories, this apparatus allows students to measure incident and reflective angles of sound waves to understand the fundamental laws of acoustics.

Product Description

The Law of Reflection of Sound Apparatus is engineered to provide a visual and auditory demonstration of how sound waves bounce off flat surfaces. The setup features a stable wooden or metallic base plate printed with a highly precise, large-format protractor scale. Two hollow tubes, typically made of lightweight plastic or metal, are mounted on pivot points, allowing users to adjust their angles relative to a central reflecting surface.

This apparatus serves as an essential piece of for educators looking to transition from theoretical acoustics to hands-on experimentation. By positioning a sound source at one tube's opening and a listener or sensor at the other, students can physically observe that the angle of incidence equals the angle of reflection. The rugged build quality ensures long-lasting durability in high-use educational environments.

Key Features

• Precision Protractor Scale: Features a clear, wear-resistant degree scale graduated from 0° to 180° for highly accurate angular measurements.
• Adjustable Wave Guides: Dual hollow tubes rotate smoothly on a central pivot to easily set precise angles of incidence and reflection.
• High-Density Reflecting Board: Equipped with a thick, smooth wooden or plastic reflection screen to maximize acoustic energy reflection.
• Stable Base Plate: Designed with a heavy, non-slip base to keep all components perfectly aligned during active laboratory experiments.
• Acoustic Compatibility: Accurately accommodates various sound sources, ranging from mechanical stopwatches to electronic frequency buzzers.

Technical Specifications

What's Included in the Kit

• 1 x Graduated Base Board with central pivot pin
• 2 x Hollow Sound-Guiding Tubes
• 2 x Tube Mounting Brackets with pointers
• 1 x High-Density Reflecting Barrier (Board)
• 1 x Sound Source Holder (suitable for stopwatches or small speakers)
• 1 x Detailed Instructional Manual with sample experiments

Applications / Uses

• Demonstrating the fundamental laws of sound wave reflection in middle and high school science classes.
• Conducting quantitative wave physics experiments in higher education labs using a wave and optics apparatus framework.
• Comparing how different barrier materials (wood, metal, foam) absorb or reflect sound waves.
• Introducing students to STEM concepts related to acoustics, architectural design, and sonar systems.

How to Use the Law of Reflection of Sound Apparatus

1. Place the apparatus on a flat, level laboratory table.
2. Set up the reflecting board vertically at the center point of the protractor scale.
3. Position the incident tube at a specific angle, such as 45°, using the printed protractor.
4. Place a steady sound source, like a ticking mechanical stopwatch or a small electronic buzzer, at the outer opening of the incident tube.
5. Position your ear or a microphone sensor at the outer opening of the second tube (the reflective tube).
6. Slowly rotate the reflective tube until the volume of the sound reaches its maximum intensity.
7. Read the angle indicated by the reflective tube's pointer; the angle of incidence should equal the angle of reflection.

Safety/Handling Note: Handle the hollow tubes gently to prevent misalignment of the pivot joints. Do not place high-decibel sound sources directly against the tubes to protect student hearing.

Care & Maintenance

• Dusting: Wipe the baseboard and guiding tubes with a dry, lint-free microfiber cloth after each use.
• Storage: Store the kit in a dry, dust-free storage cabinet away from direct sunlight to preserve the legibility of the protractor scale.
• Mechanical Care: Periodically check and tighten the pivot screws to prevent loose movement of the guiding tubes.

Why Choose Science Lab Supplies

Science Lab Supplies is a leading global manufacturer and exporter of educational and industrial laboratory instruments. With decades of manufacturing expertise, we specialize in producing high-quality school science kits that meet stringent international educational standards. Our state-of-the-art production facilities ensure that every piece of apparatus is built for durability, precision, and safe classroom use. We offer robust global supply capabilities, serving schools, colleges, and distributors worldwide.

Frequently Asked Questions

What sound source is best for this experiment?

A mechanical ticking stopwatch or an electronic buzzer emitting a constant high-frequency tone works best with this apparatus.

Can this apparatus be used to test sound absorption?

Yes, you can place different materials (such as foam, cardboard, or felt) in front of the reflecting board to study sound absorption and reflection characteristics.

Is the protractor scale durable?

Yes, the protractor scale is screen-printed with wear-resistant ink directly onto the laminated base, ensuring it remains highly legible after years of laboratory use.

Do the tubes lock into specific angles?

The tubes are designed to pivot smoothly and hold their position via friction, allowing you to measure any arbitrary angle accurately.

Is this apparatus suitable for university-level physics?

Yes, it is excellent for university physics labs as part of a comprehensive curriculum utilizing specialized acoustic laboratory instruments.
