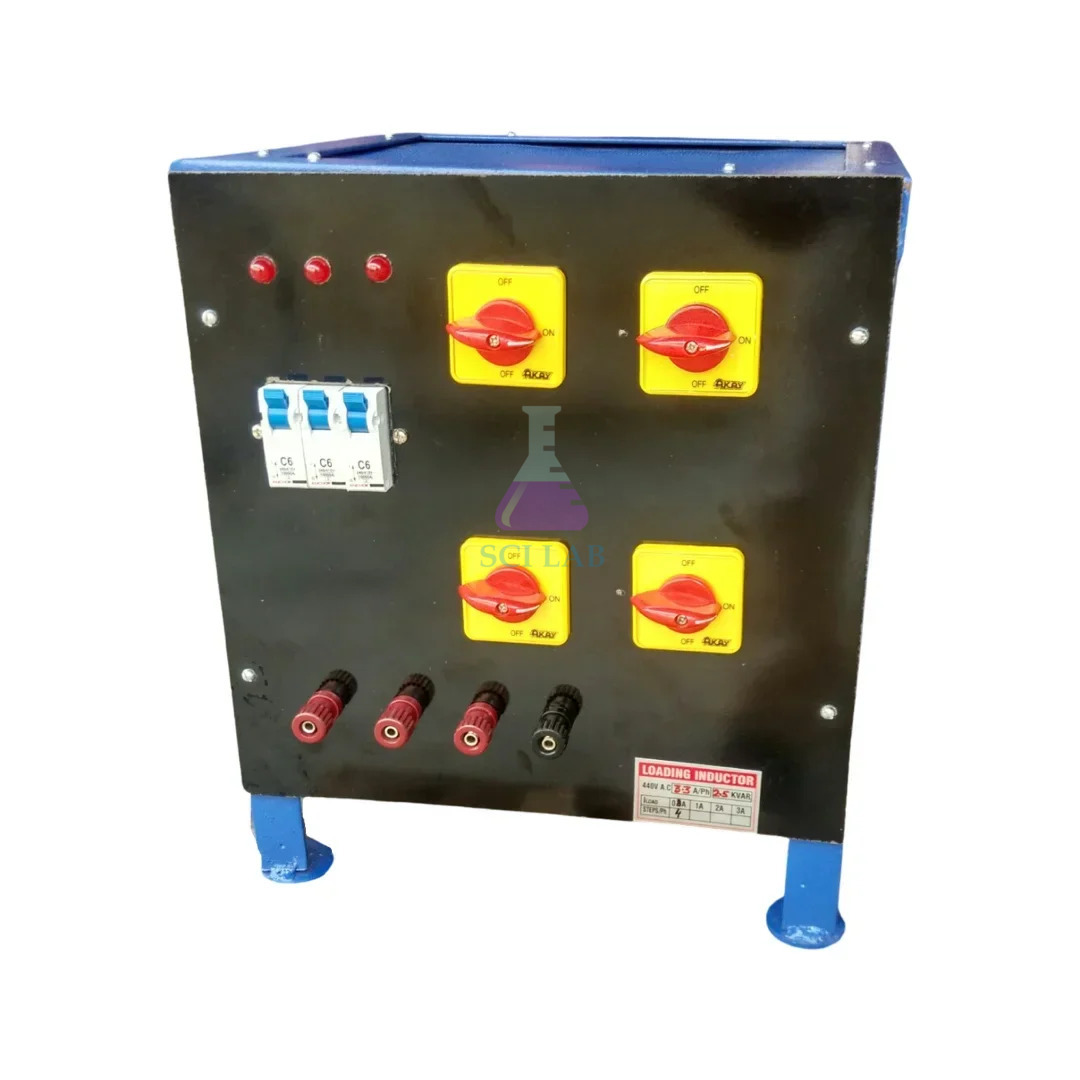

Electrical Inductor Loading Bank
Product Code : SCL-EAE-12049
The Electrical Inductor Loading Bank is a stationary electrical testing apparatus used for simulating lagging power factor conditions in electrical engineering laboratories. Designed for engineering students and laboratory instructors, this apparatus provides an adjustable reactive load to safely analyze transformer voltage regulation, alternator excitation, and power system stability metrics.
Product Description
The Electrical Inductor Loading Bank by Science Lab Supplies provides an exceptionally stable and precise platform for executing advanced electrical machinery experiments. This laboratory load bank consists of a balanced three-phase array of high-grade copper wire-wound inductors wrapped around low-loss laminated silicon steel cores. The internal magnetic cores are isolated structurally to reduce eddy current losses and prevent magnetic saturation during prolonged testing periods under full capacity.
The entire electrical grid is securely housed inside a thoroughly ventilated, powder-coated sheet steel enclosure, ensuring long-term physical durability and high resistance to thermal stress. The front panel interface features high-durability rotary selectors or independent toggle switches that permit balanced step-by-step changes to the inductive current across all three phases simultaneously. This industrial-grade console functions as an essential addition for modern technical institutions expanding their inventory of high-accuracy scientific laboratory instruments.
Key Features
- Balanced Three-Phase Reactance: Symmetrical step loading across all three lines maintains system phase equilibrium under full operations.
- High-Grade Copper Windings: Premium insulation class copper coils wound on low-loss laminated steel cores extend structural lifespan.
- Multi-Step Incremental Control: Outfitted with robust front panel switch steps to adjust reactive power consumption smoothly without wiring risks.
- Ventilated Metal Casing: Heavy-gauge, anti-corrosive steel frame uses passive convection vents for effective thermal regulation.
- Transient Surge Protection: Integrated metal-oxide varistors (MOVs) suppress high-voltage inductive arcs during step transitions under load.
- Insulated Shrouded Terminals: Shrouded 4mm safety sockets ensure absolute user electrical insulation during manual patching exercises.
Technical Specifications
|
Specification |
Detail |
|
Product Type |
Three-Phase Reactive Loading Apparatus |
|
Maximum Reactive Capacity |
3 kVAR (kilovolt-amperes reactive) continuous |
|
Operating Voltage Rating |
415V AC, 50Hz/60Hz three-phase |
|
Configuration Layout |
Internal star (wye) configuration with accessible neutral point |
|
Insulation Rating |
Class H insulation standard ($180^\circ\text{C}$ thermal boundary) |
|
Step Adjustment |
4 balanced discrete steps per phase line |
|
Input Termination Panel |
4mm shrouded safety banana sockets |
|
Quality Certifications |
CE compliant, ISO 9001:2015 certified manufacturing standard |
What's Included in the Kit
- 1 x Electrical Inductor Loading Bank master terminal enclosure
- 6 x High-current insulated patch cords with 4mm safety connectors
- 3 x Removable phase bridging copper links
- 1 x Comprehensive English operations manual detailing power calculations
Applications / Uses
- Alternator Vector Diagram Mapping: Allows students to apply lagging loads to educational alternators to plot excitation changes.
- Power Factor Correction Analysis: Functions as the primary inductive sink to demonstrate reactive compensation using parallel capacitor banks.
- Three-Phase Transformer Testing: Used to observe voltage regulation curves when loading transformer secondary windings with reactive current.
- Curriculum-Aligned Engineering Training: Functions as a core training component within advanced university science kits.
How to Use the Electrical Inductor Loading Bank
- Place the load bank enclosure on a flat, level, and well-ventilated laboratory floor or workbench surface.
- Confirm that all individual front panel load toggle switches are flipped to their absolute OFF positions prior to wiring.
- Wire the incoming three-phase supply lines from your source under test directly to the $L_1, L_2$, and $L_3$ safety input sockets, ensuring the neutral terminal is properly connected.
- Energize the primary three-phase supply to 415V AC and sequentially turn on the switch steps to introduce inductive current.
- Integrate the device into comprehensive lab experiment setups and monitor phase parameters to calculate total reactive power consumption using the equation:
$$Q = \sqrt{3} \cdot V_L \cdot I_L \cdot \sin\theta$$
Safety Handling Note: Never disconnect input patch cords while a load switch step is active. Breaking an active inductive loop can generate high-voltage electrical arcing across terminal nodes.
Care & Maintenance
- Dust Elimination: Clean out dust accumulation periodically from the ventilation grilles using dry compressed air or a soft microfiber cloth.
- Insulation Integrity Check: Routinely audit input terminal sockets for signs of localized heating, discoloration, or loose mechanical joints.
- Storage Environment: Store the unit inside a well-ventilated, dry storage bay to prevent winding oxidation and maintain dielectric performance.
