Flow Through Helical Coil
Product Code : LSK-TWL-10815

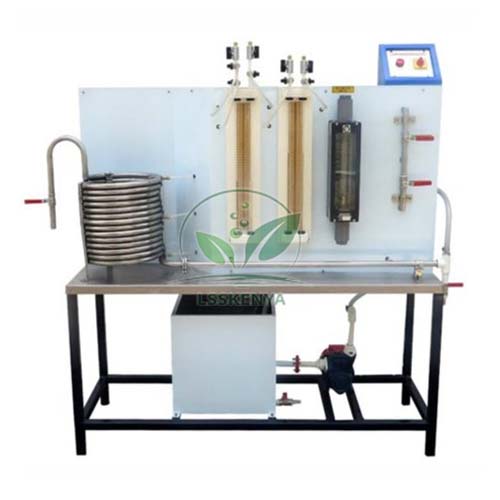

Flow Through Helical Coil (SKU LSK-TWL-10815) is a closed-loop water rig for studying flow through a 15-turn stainless steel coil, with a rotameter for flow rate and two manometers for pressure readings. It is used in fluid mechanics and chemical engineering laboratories at degree and diploma level. Science Lab Supplies manufactures the rig at its factory at Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, and sells it direct to institutions, tender contractors and distributors.
Specifications
The coil is wound from stainless steel tube of about 21 mm OD and 17 mm ID to a 12-inch coil diameter. A fractional horsepower pump circulates water from a 50-litre sump through GI and PVC piping, and the whole set-up sits on a painted structure with a control panel.
| Parameter | Value |
|---|---|
| SKU | LSK-TWL-10815 |
| Number of turns | 15 |
| Coil tube | OD 21 mm, ID 17 mm (approx.) |
| Coil material / diameter | Stainless steel / 12 in (about 305 mm) |
| Water circulation | FHP pump, Crompton or Sharp make |
| Manometers | 2 nos |
| Sump tank | Stainless steel or PVC, 50 litres |
| Flow measurement | Rotameter |
| Piping | GI and PVC |
| Control panel | On/off switch, mains indicator |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Flow Through Helical Coil
Students set a flow rate on the rotameter and read the two manometers to see how pressure changes as water passes through the coil. Repeating this over a range of flows shows how a curved, coiled path affects flow compared with a straight pipe, a standard topic in fluid mechanics lab experiments.
- B.Tech/B.E. chemical engineering: fluid flow operations laboratory.
- Mechanical and civil engineering fluid mechanics labs: pressure drop in coiled tubes.
- Polytechnic diploma practicals: using a rotameter and manometers on a flow rig.
Standard Scope of Supply
The rig is supplied as one unit on its painted structure, with the 15-turn stainless steel coil, FHP circulation pump, 50-litre sump tank, rotameter, two manometers, GI and PVC piping and the control panel with on/off switch and mains indicator. Water and electricity are connected on site.
Packing, MOQ and Lead Time
You may request a price for a single rig or for a full fluid mechanics lab. The quotation sets out packing, delivery time and price for that quantity, and other flow benches from the Training Workshop Labs range can be added to it.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Rwanda, South Africa, Qatar, Sri Lanka, Vietnam and Malaysia. Enquire via the contact page or enquiry cart; see also the lab tender page.
Frequently Asked Questions
What is the coil made of and how big is it?
The coil is stainless steel tube, about 21 mm OD and 17 mm ID, wound in 15 turns to a coil diameter of 12 inches.
How are flow and pressure measured?
Flow rate is read on a rotameter and pressure on two manometers. Water is recirculated from a 50-litre sump by an FHP pump, so no continuous water supply is needed during the test.
Is Science Lab Supplies the manufacturer or a trader?
Science Lab Supplies is the manufacturer. The rig is fabricated at its own factory in Saha, Ambala, India, and quotations are sent directly from the factory.
Can it be combined with other items in one order?
Yes. Several flow benches can go on one quotation; send your list and delivery location through the contact page.
Related Fluid Flow Apparatus
These four items from the same range complete a fluid flow bench: two classic fluid mechanics experiments, a flotation study and a coiled-tube reactor that uses the same helical geometry for reaction studies.
- Reynolds Apparatus — laminar and turbulent flow with dye injection.
- Bernoullis Theorem Complete with Collecting Tank — energy balance along a duct.
- Metacentric Height Apparatus — stability of floating bodies.
- Plug Flow Reactor (Coiled Tube Type) — reactions in a helical coil.
Browse the full Training Workshop Labs range or all TVET lab equipment.
