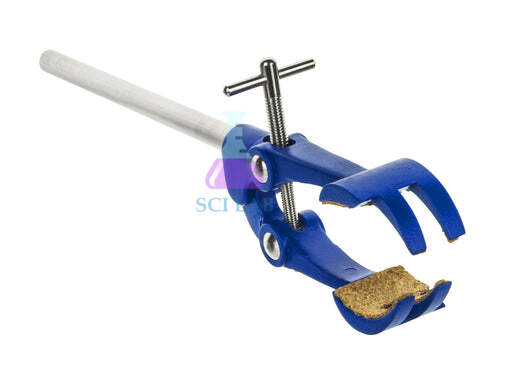

Four Prong Laboratory Clamp

Product Code : SCL-CL-12014

The Four Finger Clamp is a multi-prong, dual-adjustable laboratory holding device used for securing irregular or large cylindrical vessels onto a retort support framework. Engineered for research chemists, laboratory technicians, and educators, this heavy-duty extension clamp provides a stable, non-slip grip to ensure optimal safety when handling fragile laboratory glassware during complex setups.

Product Description

The Four Finger Clamp from Science Lab Supplies delivers exceptional clamping stability and structural reliability for high-activity testing and research environments. Fabricated from a premium-grade die-cast aluminum alloy body attached to a solid stainless steel extension rod, this instrument withstands significant mechanical loads without flexing or slipping. The unique 4-prong design features two independently adjustable sides, allowing operators to customize the grip profile around asymmetrical glass shapes, large distillation columns, and wide-necked flasks.

This professional-grade laboratory hardware component is equipped with high-durability vinyl/PVC finger sleeves that provide a cushioned physical buffer. The polymer coating absorbs sudden structural vibrations and prevents dangerous point-pressure fractures caused by the thermal expansion of heated glass vessels. An indispensable safety asset for high-temperature and vacuum distillation procedures, this reusable clamp enables industrial testing labs and academic chemistry departments to maintain stable, secure, and stress-free experimental configurations.

Key Features

• Dual-Adjustable Jaws: Features two independent thumb screws that control separate prong pairs, offering a perfectly centered grip on irregular or tapered objects.
• Heavy-Duty Construction: Forged with a die-cast metal alloy body and a rugged stainless steel extension rod to prevent mechanical bending under heavy weight loads.
• Protective Vinyl Sleeves: Tipped with heavy-walled PVC coatings that shield delicate glass surfaces from direct metal contact and minimize structural slippage.
• Wide Clamping Capacity: The flexible four-finger layout accommodates an expansive array of laboratory vessels ranging from 15 mm up to 85 mm in diameter.
• Excellent Chemical Resistance: The powder-coated body finish and stainless steel rod are highly resistant to corrosive acid fumes, alkaline splashes, and organic solvents.
• Enhanced Safety Reach: The 200 mm overall extension shaft creates an optimal physical distance between the glassware setup and the primary retort stand axis.

Technical Specifications

What's Included in the Kit

• 2 x Heavy-Duty Four Finger Clamp Units
• 4 x Replacement Vinyl Finger Sleeves
• 1 x Precision Apparatus Setup and Alignment Guide

Applications / Uses

• Suspending large Liebig, Graham, or Allihn condensers securely within fractional distillation setups.
• Stabilizing heavy Soxhlet extraction tubes and reaction columns vertically above heating mantles.
• Functioning as a high-durability structural holding component within advanced university chemistry science kits.
• Gripping large-capacity laboratory glassware items, such as separation funnels and round-bottom flasks, to eliminate wobble.
• Supporting customized chemical containment configurations safely over active laboratory heating instruments.

How to Use the Four Finger Clamp

1. Mount the stainless steel extension rod of the four-finger clamp into a standard right-angle boss head clamp attached to a secure retort stand.
2. Rotate both threaded thumbscrews counter-clockwise to open the four vinyl-coated fingers wide enough to clear your target vessel.
3. Bring the clamp horizontally toward the glassware, ensuring the vessel sits perfectly aligned within the center of the four prongs.
4. Turn each thumbscrew clockwise alternately to close the jaws symmetrically around the vessel walls until all four fingers make uniform contact.
5. Tighten the screws gently until the glassware is held firmly in place, double-checking that the vessel cannot slide vertically.

Handling Note: Never apply excessive torque to the thumbscrews once the jaws make solid contact with the glass. Over-tightening can crush the glass structure, especially when subjected to subsequent thermal stress.

Care & Maintenance

• Thread Lubrication: Apply a single drop of light machine oil or silicone lubricant to the threaded adjustment bolts periodically to ensure smooth open-close mechanics.
• Sleeve Inspection: Regularly check the vinyl finger coatings for tears, burns, or chemical degradation, replacing worn sleeves immediately to maintain a non-slip grip.
• Chemical Cleanup: Wipe the alloy body and stainless steel shaft with a damp cloth and mild neutral detergent after exposure to corrosive chemical vapors to prevent pitting.

Why Choose Science Lab Supplies

Science Lab Supplies is an internationally acclaimed manufacturer and expert exporter of premium scientific equipment, didactic training setups, and institutional hardware accessories. Drawing upon decades of precision engineering experience, we produce highly durable safety components that align strictly with international quality and industrial performance benchmarks. Our advanced global supply infrastructure ensures rapid, dependable distribution to commercial testing centers, research institutions, and school districts worldwide. In addition to metal support instruments, we offer a comprehensive selection of premium laboratory plasticware options to complement any modern research configuration.

Frequently Asked Questions

What is a Four Finger Clamp used for?

It is a specialized laboratory hardware tool used to secure large, heavy, or irregularly shaped glassware vessels to a retort stand. Its multi-prong, dual-adjustable layout provides a stable grip for operations like distillation or extraction.

What is the advantage of a 4-prong clamp over a standard 2-prong clamp?

A 4-prong (four-finger) design features two independently adjustable sides. This allows it to distribute clamping pressure more evenly and customize its shape around asymmetrical or wide-diameter glassware, offering superior stability for complex setups.

What material are the finger sleeves made of?

The fingers are coated with heavy-duty, non-slip vinyl (PVC) sleeves that cushion the glass, enhance friction to prevent sliding, and shield the vessel from direct, rigid metal contact.

Can this extension clamp be used for high-temperature heating?

Yes, the die-cast alloy body and stainless steel rod are fully flame-resistant. However, avoid exposing the vinyl-coated finger tips directly to continuous open flames to prevent the polymer sleeves from melting.

What size rods or stands does this clamp fit?

The 10 mm diameter stainless steel extension shaft is universally compatible with all standard laboratory boss head clamps, allowing it to mount seamlessly to any standard retort support stand.
