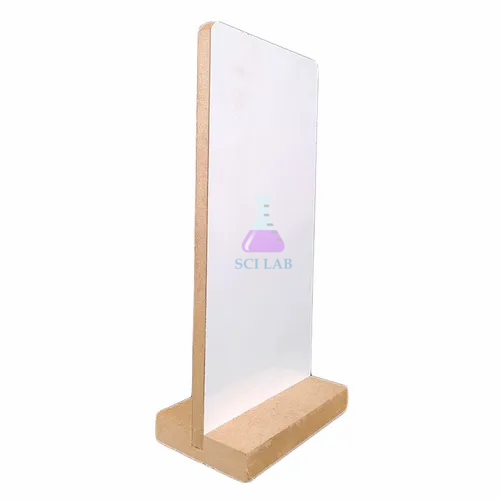

Laboratory White Viewing Screen

Product Code : SCL-LAO-12072

The Laboratory White Viewing Screen is a precision optical projection accessory used for capturing, visualizing, and measuring light patterns in wave mechanics and ray tracking. Engineered for physics students and lab technicians, it ensures a high-contrast, non-glare surface for accurate data collection.

Product Description

This projection screen features a matte white diffractive coating applied to a rigid steel plate to prevent warping or edge degradation over long-term laboratory operation. The specialized finish disperses incident light isotropically, ensuring a clear, parallax-free view of real images, diffraction fringes, and laser paths from any viewing angle within the room.

Designed as an essential addition to institutional inventories, this durable screen easily integrates onto standard optical tracks. It provides significant didactic value by providing an unblurred surface for precise measurement of focal points during complex geometric optics investigations.

Key Features

• Isotropic Light Diffusion: Features a specialized matte white coating that ensures even light scattering and eliminates hot spots.
• Heavy-Duty Steel Core: Constructed from structural steel plate to prevent bending, cracking, or breaking under daily classroom conditions.
• Universal Mount Design: Equipped with a standard 10mm stainless steel rod that fits securely into standard optical bench accessories.
• Integrated Measuring Scale: Includes a fine vertical metric scale printed directly on the white face for instant height alignment evaluations.
• Magnetic Utility Support: Ferrous metal core allows the attachment of magnetic indicators or tracking targets for complex light setups.

Technical Specifications

What's Included in the Kit

• 1 x Laboratory White Viewing Screen with 10mm mounting rod
• 1 x Adjustable thumb-screw locking collar
• 1 x Product instruction manual with optical alignment tips

Applications / Uses

• Visualizing real images formed by convex lenses and concave mirrors during student lab investigations.
• Measuring the fringe spacing of double-slit diffraction patterns on a stable projection plane.
• Executing precise focal length measurement procedures using the thin lens equation:

• Serving as a high-contrast tracking target within multi-beam laser arrays inside advanced optics experiment kits.

How to Use the Laboratory White Viewing Screen

1. Insert the 10mm stainless steel mounting rod of the screen into a compatible slider mount on your optical bench.
2. Position the screen down-beam from your lens, prism, or mirror assembly.
3. Tighten the slider mount thumb screw to secure the screen at a preliminary distance.
4. Adjust the location of your optical elements until a sharp, focused real image or fringe pattern resolves on the matte white field.
5. Utilize the direct metric scale to capture vertical displacement data or note the precise track position for mathematical tracking.

Safety Note: Avoid reflecting high-intensity laser beams off the screen without confirming that all student personnel are wearing wavelength-appropriate laser safety eyewear.

Care & Maintenance

• Cleaning: Dust the matte screen surface gently using a dry, lint-free microfiber cloth; do not apply abrasive industrial cleaners or acetone.
• Storage: Store the screen unit vertically inside a dry storage cabinet to prevent surface abrasions or contamination from loose chemical elements.
• Handling: Hold the assembly exclusively by the stainless steel rod or outer edges to prevent thumb oils from staining the white diffusion field.

Why Choose Science Lab Supplies

Science Lab Supplies is an established manufacturer and premier global exporter of robust laboratory instruments and didactic setups. With decades of manufacturing experience, we use high-grade structural components designed to withstand the constant handling typical of institutional physics labs. Our production facilities maintain rigid ISO 9001:2015 audits to ensure true geometric precision across all product lines. We rely on efficient global logistical networks to distribute science apparatuses safely to classrooms around the world.

Frequently Asked Questions

How does the matte surface prevent hot spots from lasers?

The screen is covered with an isotropic diffusion coating that scatters incoming light evenly in all directions, avoiding the blinding specular reflections common on semi-gloss surfaces.

Can I write on this viewing screen with dry-erase markers?

No, the screen features a specialized non-glare texturized coating that is not optimized for markers; use a separate white board if drawing is required.

Does this screen fit standard metric optical rails?

Yes, the integrated 10mm mounting rod interfaces perfectly with universal lens holders, sliders, and stands on standard optical benches.

Is the metal backing magnetic?

Yes, the screen features a robust ferrous steel core, which allows you to attach light sensors, filters, or magnetic indicators during advanced optics experiments.

What is the smallest interval on the built-in scale?

The integrated metric scale features precise 1 mm increments, enabling high-resolution alignment and height measurements.
