Power Factor Load Bank
Product Code : LSK-EPS-10534

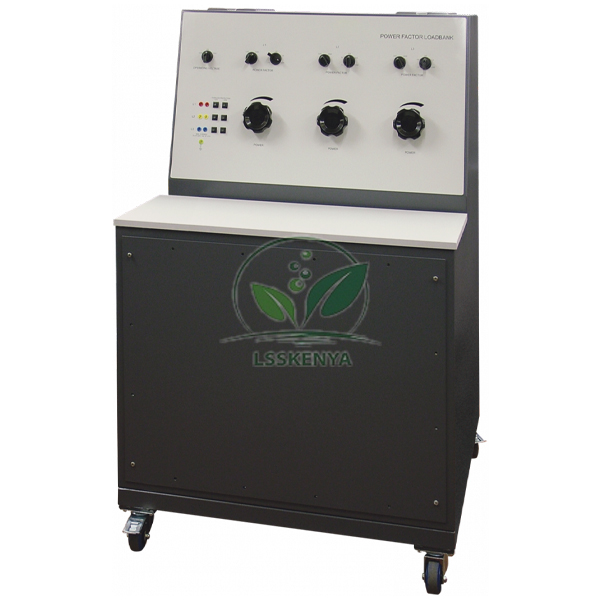

Power Factor Load Bank (SKU LSK-EPS-10534) is a free-standing, mobile load with separate resistive, inductive and capacitive banks, giving unity, lagging (inductive) or capacitive power factor for power systems experiments. It suits electrical machines and power systems laboratories in engineering colleges and polytechnics. For institutions, tender contractors and distributors that need a predictable test load, Science Lab Supplies arranges the quotation and dispatch from Ambala, India.
Specifications
Each feature of the R-L-C load bank appears as a separate row below. In short, three independent lines, each with resistive, inductive and capacitive banks, connect as a star or delta load and can be set to different values, while a voltage selector, small wheels and a worktop complete the free-standing unit.
| Specification | Value |
|---|---|
| SKU | LSK-EPS-10534 |
| Load banks | Three separate banks: resistive, inductive and capacitive |
| Load combinations | Banks used alone or combined |
| Power factor | Unity (resistive only), lagging (inductive) or capacitive |
| Inputs | Three separate lines: Lines 1, 2 and 3 |
| Circuits | Single-phase and three-phase |
| Line independence | Each line independent and set to its own value |
| Three-phase connection | Star or delta |
| Load balance | Balanced or unbalanced load tests |
| Voltage selection | Voltage-selector switch for different line voltages |
| Load characteristics | Predictable load and power factor characteristics |
| Demonstrates | Principle of a static VAr compensator |
| Construction | Free-standing, mobile unit |
| Worktop | On top, for additional instruments or recording results |
| Mobility | Small wheels |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Power Factor Load Bank
The load bank gives students a known, repeatable load for generators, transformers and transmission line models. By switching capacitive banks against inductive ones, they can also see how a static VAr compensator corrects power factor in industrial plants and large factories, all from one mobile unit.
- B.E./B.Tech electrical machines: loading alternators and transformers at set power factors; transformer theory itself is covered on the Single Phase Mobile Transformer.
- Balanced and unbalanced three-phase load tests in star and delta, with line currents checked on a Digital Clamp Meter.
- Power factor correction and the principle of static VAr compensation.
- Diploma power systems practicals: voltage regulation under changing load.
The unit carries mains-level voltages, so connect it with the supply switched off and supervise all tests.
Standard Scope of Supply
The Power Factor Load Bank is supplied as a single mobile unit containing all three load banks on their three lines, with the voltage selector and worktop as described above. Supplies, meters and the machines under test can be added to the quotation, together with any optional accessories you need.
Packing, MOQ and Lead Time
We can quote one load bank or several for parallel lab benches. The quotation sets out packing, delivery time and price for the number of units requested, and the resistive load bank or other engineering lab equipment in India from the power system range can be included too.
Registered as an exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Malaysia, Peru, Egypt, Iraq, Nigeria and Kenya. Give the line voltage of your laboratory when you write in through the contact page, or save the load bank in the enquiry cart; the lab tender page covers bid purchases.
Frequently Asked Questions
Can it give a capacitive power factor?
Yes. Combining the capacitive bank with the resistive bank makes the current lead the voltage, the inductive bank makes it lag, and the resistive bank alone gives unity power factor.
Does it work on single-phase circuits?
Yes. It has three independent inputs, so one line can serve a single-phase circuit, or all three can form a star or delta load on a three-phase system.
Who supplies the Power Factor Load Bank?
Science Lab Supplies quotes this unit from Ambala, India for colleges and contractors, and can include the other power system trainers and load banks on the same quotation where a full laboratory is planned.
How is it moved between benches?
It stands on small wheels, so it can be rolled into place for a practical and cleared away afterwards, which saves setting-up time in a shared laboratory.
