Pressure Measurement Bench
Product Code : LSK-FM-10449

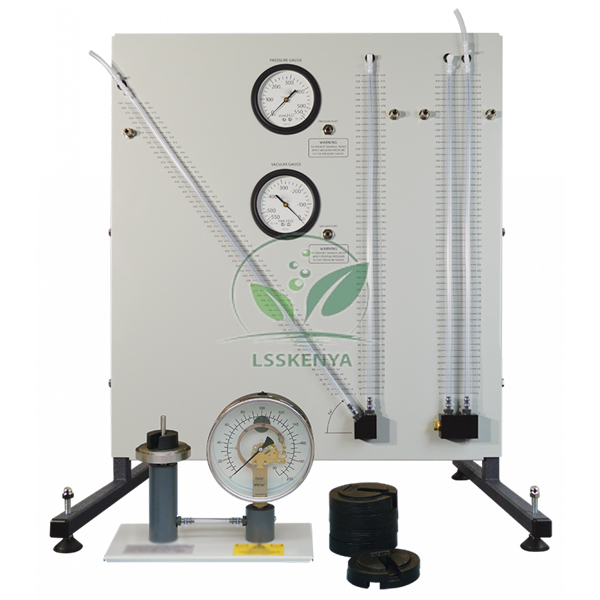

Pressure Measurement Bench (SKU LSK-FM-10449) lets students compare inclined and U-tube manometers with Bourdon-type vacuum and pressure gauges, and watch the Bourdon tube mechanism on a separate dead-weight calibration unit. It serves fluid mechanics lab experiments in B.E./B.Tech and polytechnic diploma courses. Science Lab Supplies manufactures the bench at its factory at Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, and sells it directly to engineering colleges, tender contractors and distributors.
Specifications
The apparatus has two units. A framed manometers and gauges unit with a backboard carries four pressure instruments and a syringe assembly, while the calibration unit pairs a free-moving piston in a close-fitting cylinder with a transparent-dial Bourdon gauge on a common flat base. Materials and finishes are chosen for corrosion protection.
| Parameter | Value |
|---|---|
| SKU | LSK-FM-10449 |
| Manometers | Vertical U-tube; U-tube with inclined limb |
| Panel Bourdon gauges | One vacuum, one positive pressure |
| Pressure source | Syringe assembly |
| Connections | Push-fit plastic tubing with T-pieces |
| Calibration unit | Piston with loading platform, cylinder with purge hole, transparent hose, transparent-dial gauge |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Pressure Measurement Bench
The bench teaches how manometers and Bourdon gauges read pressure and vacuum, how an inclined limb spreads a small pressure over a longer scale, and how a gauge is calibrated against dead weights. Both devices also sit inside pneumatic comparators and flow indicators.
- B.E./B.Tech fluid mechanics lab: vertical versus inclined manometer readings for one applied pressure.
- Measuring positive pressure and vacuum with Bourdon gauges and checking them against the manometers.
- Dead-weight calibration: loading the piston in steps and plotting gauge error.
- Polytechnic diploma: instrumentation practicals on pressure measurement.
Standard Scope of Supply
Each bench comprises the manometers and gauges unit with both manometers, both Bourdon gauges and the syringe assembly, plastic connecting tubing with T-pieces, and the Bourdon gauge calibration unit with piston, cylinder, hose and gauge on its base. The quotation confirms the calibration weight set supplied with it.
Packing, MOQ and Lead Time
Quotations can cover one bench or several for a complete fluid mechanics laboratory, and each one sets out the packing, delivery time and price for the quantity you ask about. Other engineering lab equipment in India from the same range, such as a hydraulic bench, can be listed on that quotation.
As a registered exporter holding an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Iraq, Nigeria, Kenya, Ghana, Ethiopia and Tanzania. To start an enquiry, write on the contact page, add the bench to the enquiry cart, or see how tenders are handled on the lab tender page.
Frequently Asked Questions
How is the Bourdon gauge calibrated?
Weights go on the loading platform that forms part of the piston. The piston moves in a close-fitting cylinder joined by a hose to the gauge, so each known load gives a reference pressure for the dial after purging air.
How is pressure applied to the panel instruments?
A syringe assembly pressurises or evacuates each gauge and manometer through its own delivery point using push-fit plastic tubing, and T-pieces let two instruments share one point for side-by-side readings.
Is Science Lab Supplies the manufacturer or a trader?
It is the manufacturer. The bench and its calibration unit are built in the company's own factory in Saha, Ambala, India, so you deal with the maker directly.
Can the bench be quoted for an engineering college tender?
Yes. Share the quantity, delivery location and tender specification, and an item-wise quotation is prepared against the construction described here.
Related Fluid Mechanics Equipment
These four items extend the pressure-measurement topic with a dedicated gauge calibration set, a panel of Bourdon gauges for pump and flow rigs, a multi-experiment hydrostatics bench and a hydrostatic thrust apparatus, and all four can be quoted together with the bench.
- Calibration of a Bourdon Pressure Gauge — Bourdon gauge on a dead weight tester.
- Analogue Pressure Display — three differently rated Bourdon gauges on one panel.
- Hydrostatics And Properties of Fluids — bench including U-tube manometers.
- Center of Pressure — thrust moment on a submerged plane.
