Ray Box Optics Activity Set

Product Code : SCL-LAO-12074

The Ray Box Optics Activity Set is a comprehensive educational physics kit used for demonstrating the principles of geometric optics through real-time light ray tracing. Engineered for science students and physics educators, this complete set enables the hands-on mapping of reflection and refraction behaviors across various lenses, prisms, and mirrors.

Product Description

The Ray Box Optics Activity Set features a high-intensity, multi-functional ray box enclosed in a lightweight, heat-resistant polymer chassis. The set includes a premium array of clear acrylic optical shapes such as triangular prisms, semi-circular blocks, and double convex/concave lenses. These elements feature polished margins to reduce diffuse scattering and maintain brilliant ray clarity on standard tracking sheets.

This interactive educational asset delivers exceptional pedagogical performance within basic and intermediate physics laboratories. By substituting abstract theoretical diagrams with sharp, physically alterable ray profiles, it elevates student comprehension during quantitative wave and geometric studies. It serves as an essential addition to institutional collections of robust.

Key Features

• High-Intensity Ray Box: Projects sharp, highly localized light beams for rapid, mistake-free ray tracing setups under normal ambient lighting.
• Shatterproof Acrylic Shapes: Constructed from premium optical-grade acrylic blocks that optimize internal light transmission while preventing breaks.
• Interchangeable Slit Plates: Includes multiple optical slit plates to project single, triple, or five-beam layouts on horizontal tracking tables.
• Secure Storage Case: Shipped inside a rugged case equipped with customized foam cutouts to protect the geometric shape margins.
• Comprehensive Activity Framework: Accompanied by pre-configured laboratory templates that allow for simple configuration by student cohorts.

Technical Specifications

What's Included in the Kit

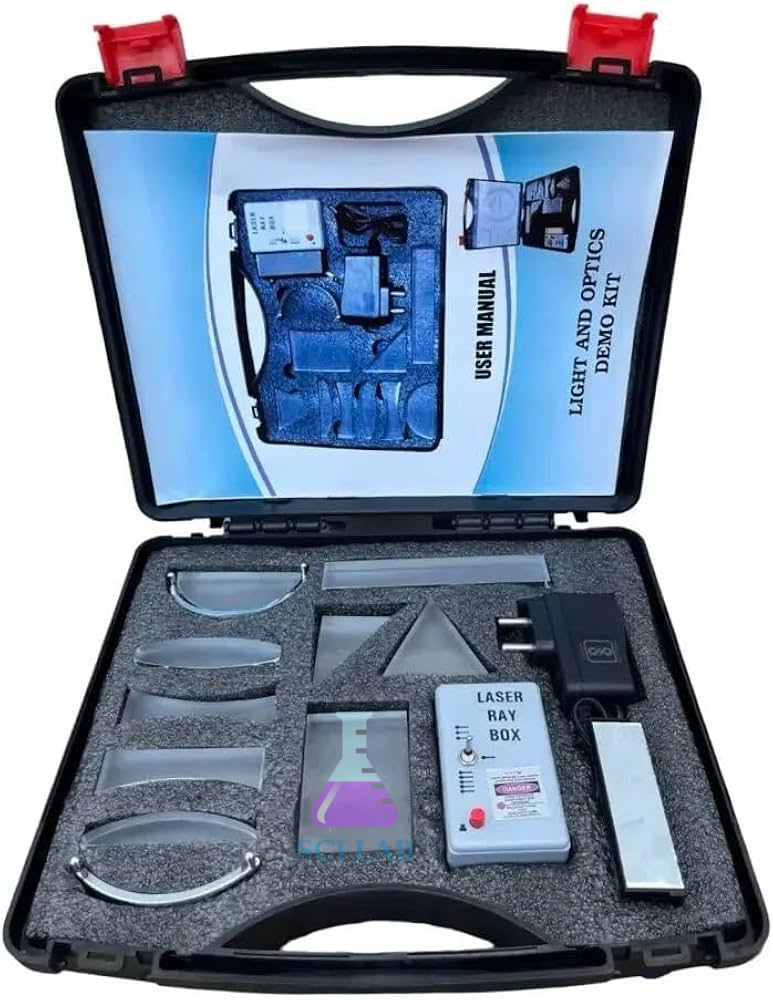

• 1 x High-Intensity Light Ray Box unit
• 1 x Double Convex acrylic lens shape
• 1 x Double Concave acrylic lens shape
• 1 x Equilateral triangular prism
• 1 x Semicircular glass-alternative refracting block
• 2 x Reversible multi-slit alignment masks
• 1 x Protective storage tray with custom foam slots

Applications / Uses

• Visualizing ray behavior during light refraction experiments to verify Snell's physical law:

• Mapping real focal positions and calculating focal distance thresholds using the thin lens mathematical equation:

• Demonstrating the mechanics of total internal reflection and establishing critical boundary angles within diverse optical polymers.
• Serving as a versatile standalone foundation inside modern institutional optics experiment kits.

How to Use the Ray Box Optics Activity Set

1. Set up the white activity tracking mat flatly on a level physics laboratory workstation.
2. Place the Ray Box Optics Activity Set main lamp module at one margin of the template sheet.
3. Connect the 4mm terminal jacks to a certified external low-voltage power supply set to 12V.
4. Insert a triple optical slit plate into the front slot track to emit parallel ray profiles.
5. Slide an acrylic cylindrical lens or prism directly into the path of the projected beams.
6. Trace the resulting entry, interior, and emergent ray trajectories using a straightedge pencil.

Safety Note: Avoid handling the lamp module housing during continuous operational cycles as the dissipation zones may elevate in temperature.

Care & Maintenance

• Cleaning: Dust the polished acrylic prisms using an ultra-soft micro-weave fabric wipe; never use alcohol or volatile industrial solvents.
• Storage: Return all elements to their dedicated protective tray inserts immediately following class completion to prevent scratching the polished limits.
• Handling: Always lift the ray box from its outer polymer frame to shield the focus alignment mirrors from manual strain.
