Teaching Microscope and Prepared Slides
Product Code : SCL-PL-12330

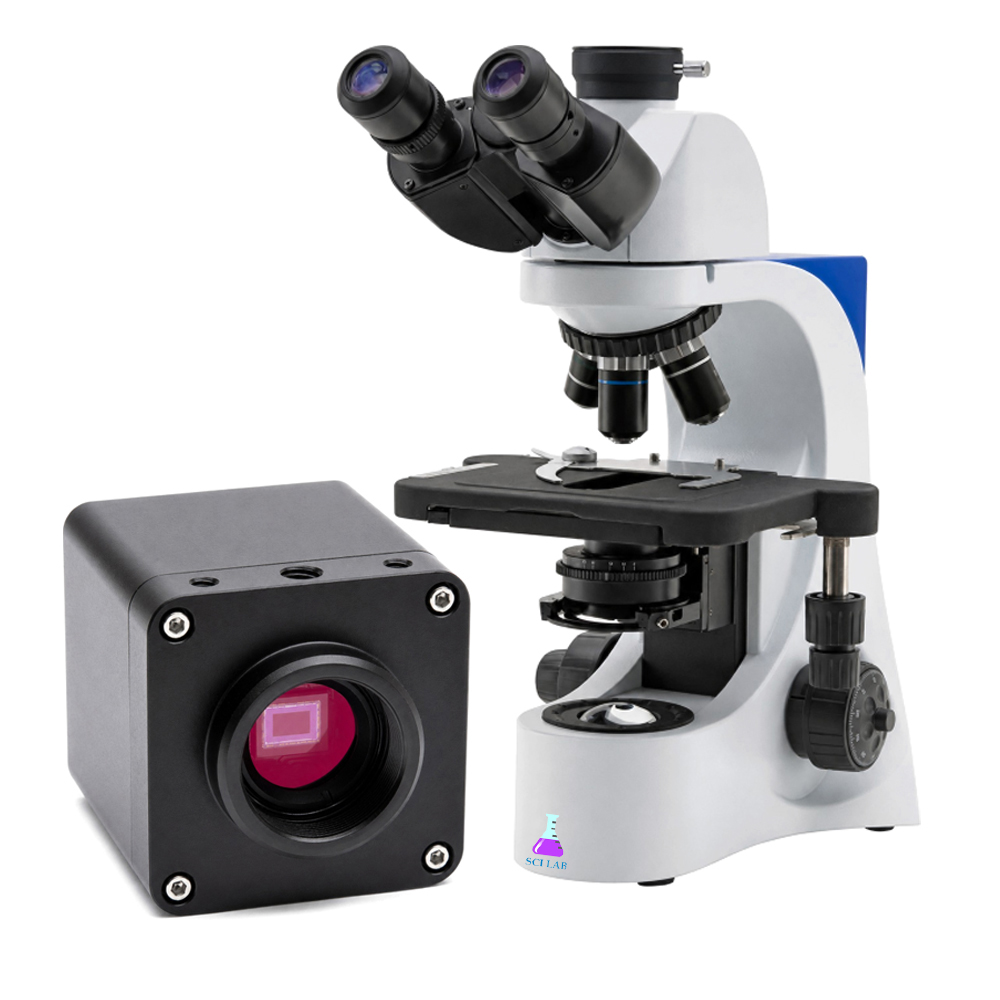

Teaching Microscope and Prepared Slides (SKU SCL-PL-12330) is a demonstration package built around a trinocular microscope, an HDMI microscope camera and a 30-inch flat screen, so a whole class can watch what the teacher sees. Slides, cover slips and a slide box complete it. Schools, colleges, training institutes, distributors and tender contractors can obtain the full package from Science Lab Supplies, a laboratory equipment supplier in India based in Ambala.
Specifications
Microscope optics, camera, screen and slide stock of this teaching package are given row by row below. In short, a bright-field trinocular head with a 50/50 beam splitter and four N-PLAN objectives up to 100x oil immersion feeds a 2-megapixel HDMI camera through a 0.35x C-mount adapter to the 30-inch screen.
| Specification | Value |
|---|---|
| SKU | SCL-PL-12330 |
| Microscope head | Trinocular |
| Beam splitter | Fixed, 50/50 |
| Observation mode | Bright field |
| Tube | Tilted 30°, rotatable 360° |
| Eyepieces | Adjustable, 10x/20 wide field |
| Interpupillary distance | 48 to 75 mm |
| Revolver | 5-position |
| Objectives | N-PLAN 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25 (immersion) |
| Focusing | Coaxial macro and micrometric, safety stop, 0.002 mm graduation |
| Stage | 233 x 147 mm, slide holder |
| Cross movement | 78 x 54 mm, 0.1 mm graduation |
| Illumination | Adjustable 3.6 W LED, transmitted light |
| Condenser | Removable Abbe, NA 1.25, centring system, iris diaphragm, focusable |
| Power supply | 220 V, 50 Hz |
| Microscope cover | Protective cover supplied |
| Camera adapter | C-mount, 0.35x, adjustable |
| Camera sensor | 1/2.8" CMOS |
| Camera resolution | 1,920 x 1,080 pixels (2 MP) |
| Camera output and storage | HDMI; SD memory card slot |
| Camera accessories | HDMI cable, mouse, memory card, AC adapter, software |
| Screen | 30" flat screen, HDMI connection |
| Slides | 26 x 76 mm, ground edges, frosted margin, 50 x 50 pcs |
| Cover slips | 18 x 18 mm, 5 x 200 pcs |
| Slide storage | Box for 100 slides |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Teaching Microscope
Showing one specimen on a large screen lets a teacher point out cells, tissues and microorganisms to the whole room before students search for them at their own microscopes. The camera also stores images on its SD card for worksheets, assessments and records of practical work.
- CBSE/NCERT Class 9: plant and animal cells and tissues shown to the whole class.
- Class 11–12 biology: mitosis, pollen, stomata and microorganisms, for example with the Cell Division slide set of 9.
- B.Sc. botany, zoology and microbiology: oil-immersion work at 1000x on smears stained in a Coplin Staining Jar that takes ten 26 x 76 mm slides.
Standard Scope of Supply
The package contains the microscope with protective cover, the 0.35x C-mount adapter, the HDMI camera with its accessories and software, the 30-inch screen, plus 50 x 50 slides of 26 x 76 mm, 5 x 200 cover slips of 18 x 18 mm and a 100-slide box.
Packing, MOQ and Lead Time
Quotations are available for one teaching package or several for different laboratories. Each states the packing, delivery time and price for the number requested, and buyers comparing prepared microscope slides in India can have stained slide series or student microscope cases priced on the same document.
Science Lab Supplies holds an Importer-Exporter Code and is able to ship to buyers in Nepal, Bangladesh, Zambia, Rwanda, South Africa and Qatar. Share the number of demonstration rooms on the contact page or through the enquiry cart; when the package is part of a tender, the lab tender page sets out the steps.
Frequently Asked Questions
How does the class see the image?
The trinocular port takes the HDMI camera through a 0.35x C-mount adapter. The camera sends a 1920 x 1080 picture over HDMI to the 30-inch screen for the whole class.
Which slides come with the package?
Fifty packs of 50 slides, 26 x 76 mm with ground edges and frosted margin, five packs of 200 cover slips of 18 x 18 mm and a 100-slide storage box.
Who supplies the Teaching Microscope and Prepared Slides?
The package is quoted by Science Lab Supplies from Ambala, India, with the trinocular microscope, HDMI camera, 30-inch screen and slide stock itemised on one quotation, and slide sets or student microscopes can be added to it.
Is immersion oil needed?
Yes, for the 100x/1.25 objective. A drop of immersion oil is placed between the slide and the 100x objective, and it is wiped off the lens and the slide after use. The other three objectives are used dry.
Related Microscopy Items
A demonstration microscope pairs with student-level kits, other camera microscopes and the materials to prepare specimens. These items can be quoted with the teaching package to equip a complete microscopy room, from basic cases and prepared bacteria slides to stains and dissecting tools.
- Biology Set BM1 – Microscopy — rechargeable monocular microscope with a 105 x 95 mm stage.
- Trinocular Research Microscope With Digital Microscopy Screen Camera — 45° trinocular head and 135 x 140 mm stage.
- Digital Trinocular Microscope — built-in 3 MP camera with a 10.1 inch tablet.
- Bacteria slide Set of 12 — glass slides, some needing 1000x magnification to view.
- Microscopy Chemicals Set — Canada balsam, carmine and five prepared slide series.
- General Biology Sets — Microscopy student workbook with the BB1 case.
- Dissecting Kit — 115 mm fine scissors and 140 mm and 160 mm tweezers.
