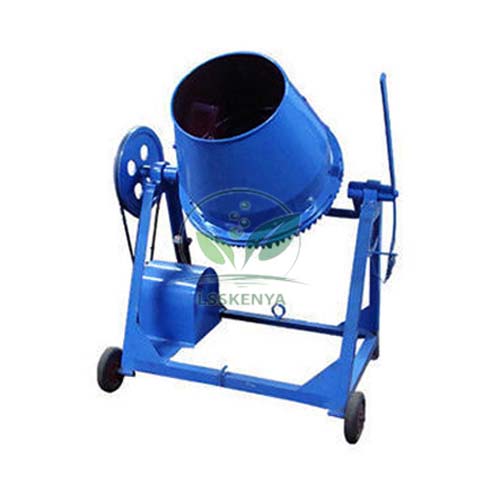

Laboratory Concrete Mixer
Product Code : LSK-CL-10585
Laboratory Concrete Mixer (SKU LSK-CL-10585) is a tilting-drum mixer for preparing trial batches when concrete mix designs are developed and checked. It is offered with a 55 litre or 110 litre steel vessel and runs on a single-phase supply, which makes it practical for college and training-centre labs. From its base in Ambala, India, Science Lab Supplies supplies the mixer to engineering colleges, polytechnics, TVET centres, tender contractors and distributors.
Specifications
A steel vessel fitted with internal mixing blades turns at 20–22 RPM, driven by a ½ HP motor through a pulley. The drum, pulley wheel and motor sit on a steel frame, and a hand wheel with counterweight tilts the vessel to any angle for mixing and discharge.
| Parameter | Value |
|---|---|
| SKU | LSK-CL-10585 |
| Vessel | Steel, 55 litre or 110 litre capacity, with internal mixing blades |
| Drum speed | 20–22 RPM |
| Drive | Motor and pulley arrangement |
| Motor | ½ HP (approx. 0.37 kW) |
| Tilting | Any angle, by hand wheel and counterweight |
| Frame | Steel frame carrying drum, pulley wheel and motor |
| Power supply | 220 V, single phase, 50 Hz AC |
| Manual operation | Large pulley wheel allows the drum to be turned by hand during a power failure |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Laboratory Concrete Mixer
The mixer is used to prepare uniform trial batches of concrete for mix design, so that the fresh and hardened properties of each proportioning can be tested. It is standard in concrete technology labs for civil engineering degrees and diplomas and in TVET lab equipment lists for construction and masonry courses.
- B.Tech / B.E. civil engineering: preparing trial mixes for concrete mix design practicals.
- Diploma civil engineering: batching fresh concrete for workability and cube tests.
- TVET construction and masonry trades: supervised practice in batching and mixing.
- Project work comparing mixes with different water-cement ratios.
Keep hands and tools clear of the rotating drum and switch off before reaching in.
Standard Scope of Supply
The mixer is supplied as a single unit: steel vessel with blades, motor, pulley drive, tilting hand wheel with counterweight, and steel frame. State whether you need the 55 litre or 110 litre vessel in your enquiry; any optional accessories are listed on the quotation.
Packing, MOQ and Lead Time
Quotations are prepared for one mixer or several, in either vessel size, and each one shows the packing, delivery time and price for that order. Moulds and slump testing equipment can be priced on the same quotation.
Science Lab Supplies is a registered exporter with an Importer-Exporter Code and can ship to buyers in Ethiopia, Tanzania, Uganda, the UAE, Saudi Arabia and Oman. To enquire, use the contact page, collect items in the enquiry cart, or visit the lab tender page if you are bidding for a tender.
Frequently Asked Questions
What capacities are available?
The mixer is offered with a 55 litre or a 110 litre steel vessel. Both use the same arrangement of blades, pulley drive and tilting mechanism, so choose the size that matches your usual batch volume.
Can the drum be turned without power?
Yes. The large pulley wheel allows the drum to be rotated by hand during a power failure, so a batch already in the vessel can still be mixed and discharged.
What power supply does it need?
It runs on 220 V, single-phase, 50 Hz AC and uses a ½ HP motor, so a standard laboratory supply is sufficient.
Who supplies the Laboratory Concrete Mixer?
Science Lab Supplies handles supply from Ambala, India, preparing quotations for institutions directly as well as for tender contractors and distributors.
Related Concrete Testing Equipment
A trial batch is normally checked for workability, then cast and tested for strength. These items from the Concrete Laboratory range cover each step, plus aggregate density testing for the mix design.
- Slump Test Apparatus — workability of the fresh batch.
- Motorized Compression/Tension Machine — compression tests on hardened specimens up to 2000 kN.
- Coarse Aggregate Density Test Set — density of aggregates for proportioning.
- Dunagan Test Set — constituents of fresh concrete.
Browse the full Concrete Laboratory range or all TVET lab equipment.
