Solar Home Power Circuit Apparatus

Product Code : SCL-SK-12162

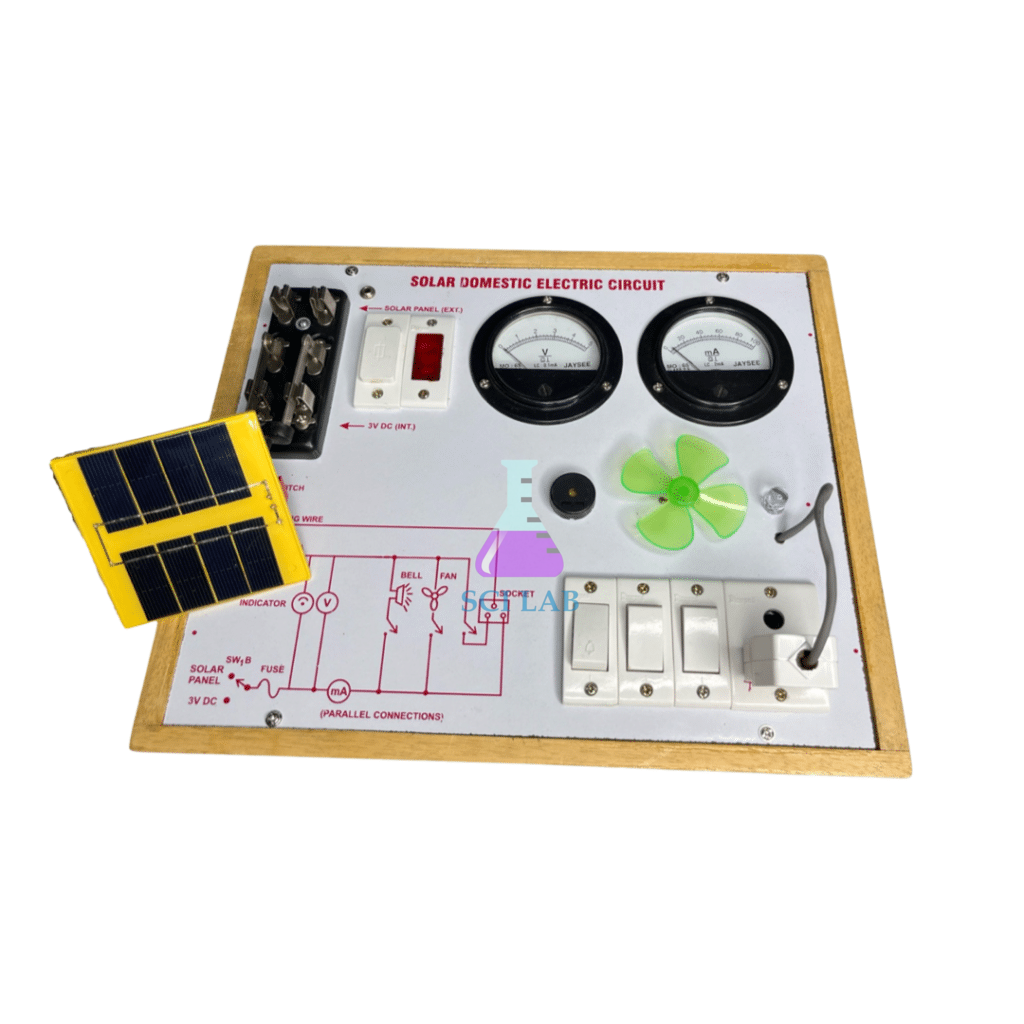

Solar Home Power Circuit Apparatus (SKU SCL-SK-12162) is a demonstration apparatus that shows how a solar panel can supply a low-voltage circuit laid out like the wiring of a home. Students can see how switches, a fuse, loads and wiring paths share power from one solar source, the idea behind off-grid solar home systems. It suits school labs, STEM programmes and TVET centres. Science Lab Supplies manufactures the apparatus in its Saha, Ambala factory (Plot 448, HSIIDC Industrial Area, India) and supplies institutions, contractors and distributors with no agent involved.

Specifications

Every component and rating of the home power apparatus is given its own row below. In short, a solar panel feeds an LED lamp, fan and buzzer through a switch and fuse on a circuit board, with a voltmeter and ammeter for readings; panel rating, battery and charge controller are confirmed on the quotation.

Applications and Experiments for the Solar Home Power Circuit

The apparatus helps students picture a household running on solar power: energy is collected by the panel, routed through the switch, fuse and wiring, and used by several loads while the meters show voltage and current. It supports lessons on domestic circuits, energy storage and off-grid electrification at school and vocational levels.

• Secondary physics: domestic electric circuits, switches, fuses and parallel loads.
• Environmental science: solar home systems and rural electrification, including stand-alone appliances such as the Solar Direct Drive Ref/Fre.
• ITI Solar Technician and Electrician trades: small solar home layouts before field wiring, where currents are measured with a Digital Clamp Meter.
• TVET renewable-energy modules and STEM projects on energy use at home.

Make or change connections with the supply disconnected, and keep the apparatus on a dry bench.

Standard Scope of Supply

The apparatus includes a solar panel, an LED lamp, a fan, a buzzer, a switch, a fuse, a voltmeter, an ammeter and connecting leads on a circuit board, with an activity guide and a storage box. The panel rating and whether a battery and charge controller are fitted are confirmed on the quotation.

Packing, MOQ and Lead Time

A quotation can be raised for one apparatus or for a whole lab. It confirms the packing, delivery time and price for the quantity involved, and other STEM science kits in India from the solar range can be included on it as well.

Science Lab Supplies has an Importer-Exporter Code as a registered exporter and is able to ship to buyers in Malaysia, Peru, Egypt, Iraq, Nigeria and Kenya. Training institutes can outline their solar curriculum on the contact page, compile items in the enquiry cart, or follow the lab tender page for competitive bids.

Frequently Asked Questions

What is a solar home power circuit?
It is a small electrical system in which a solar panel supplies the lights and appliances of a home, often with a battery for night use. The apparatus models this on a low-voltage scale for teaching.

Does it include a battery?
A battery and charge controller can be part of the apparatus; whether they are fitted to the version you order is confirmed on the quotation, together with the panel rating and the voltage and current values.

Is Science Lab Supplies the manufacturer or a trader?
Each unit is built and wired at the Science Lab Supplies factory in Saha, Ambala, India, making the company its manufacturer; quotations and dispatch are handled by that factory, not by an agent.

Is it suitable for vocational training?
Yes, as an introduction. It suits ITI and TVET learners studying solar installation, giving them a low-voltage layout with switch, fuse and meters before they work on full-scale systems.
