Teaching Microscope and Prepared Slides
Product Code : SCL-PL-12330

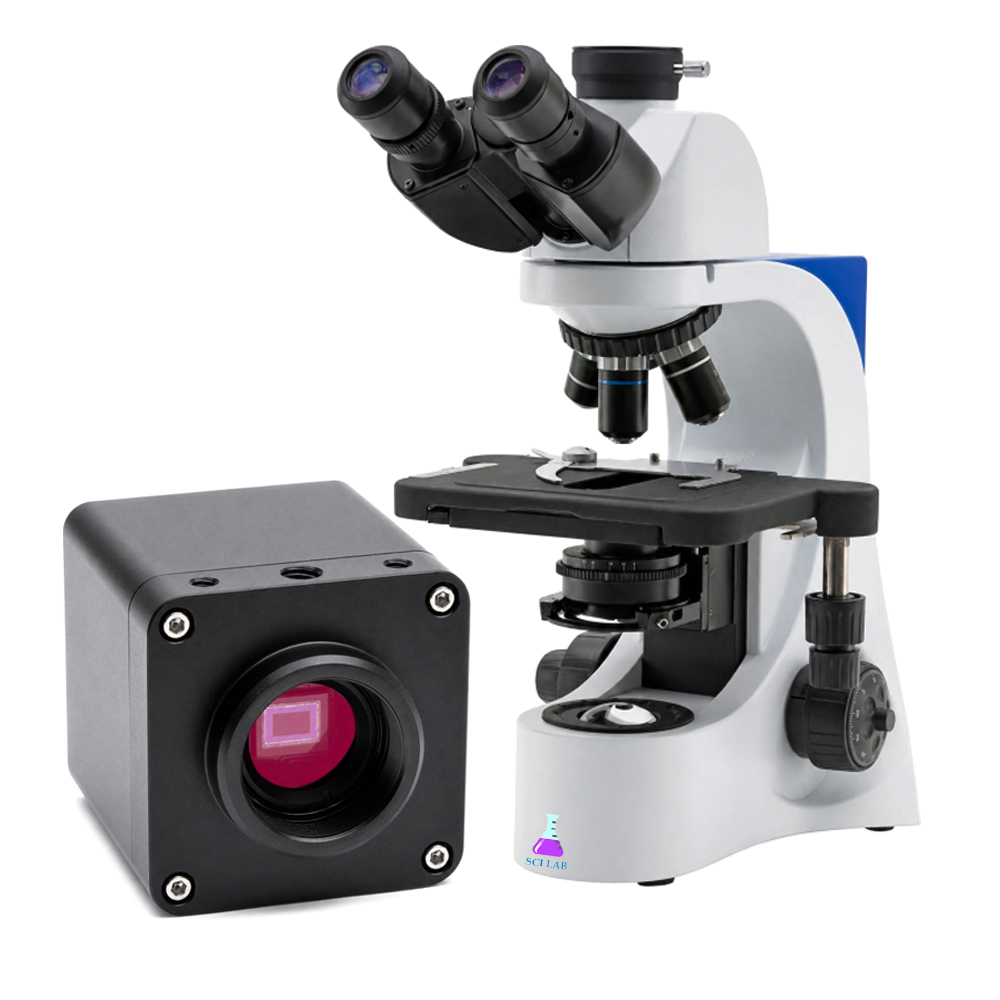

Teaching Microscope and Prepared Slides (SKU SCL-PL-12330) is a demonstration package built around a trinocular microscope, an HDMI microscope camera and a 30-inch flat screen, so a whole class can watch what the teacher sees. Slides, cover slips and a slide box complete it. Science Lab Supplies, a laboratory equipment supplier in India, provides the package from Ambala to schools, colleges, training institutes, distributors and tender contractors.
Specifications
The bright-field trinocular head has a fixed 50/50 beam splitter, a 30° tube rotating through 360° and 10x/20 wide-field eyepieces. Four N-PLAN objectives up to 100x oil immersion give 40x to 1000x, and a 0.35x C-mount adapter carries the 2-megapixel HDMI camera to the screen.
| Parameter | Value |
|---|---|
| SKU | SCL-PL-12330 |
| Microscope | Trinocular, bright field; interpupillary distance 48–75 mm |
| Objectives | 5-position revolver; N-PLAN 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25 oil |
| Focus | Coaxial coarse and fine, safety stop, 0.002 mm graduation |
| Stage | 233 x 147 mm, 78 x 54 mm cross movement, 0.1 mm graduation, slide holder |
| Illumination | Adjustable 3.6 W LED, transmitted; removable focusable Abbe condenser NA 1.25 with centring and iris diaphragm |
| Power | 220 V, 50 Hz |
| Camera | C-mount, 1/2.8" CMOS, 1920 x 1080 (2 MP), HDMI output, SD card slot |
| Display | 30" flat screen, HDMI |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Teaching Microscope
Showing one specimen on a large screen lets a teacher point out cells, tissues and microorganisms to the whole room before students search for them at their own microscopes. The camera also stores images on its SD card for worksheets, assessments and records of practical work.
- CBSE/NCERT Class 9: plant and animal cells and tissues shown to the whole class.
- Class 11–12 biology: mitosis, pollen, stomata and microorganisms.
- B.Sc. botany, zoology and microbiology: oil-immersion work at 1000x.
- Teacher training and science exhibitions.
Standard Scope of Supply
The package contains the microscope with protective cover, the 0.35x C-mount adapter, the HDMI camera with HDMI cable, mouse, memory card, AC adapter and software, and the 30-inch screen. Also included are 50 x 50 slides of 26 x 76 mm with ground edges and frosted margin, 5 x 200 cover slips of 18 x 18 mm and a box for 100 slides.
Packing, MOQ and Lead Time
Quotations are available for one teaching package or several for different laboratories. Each states the packing, delivery time and price for the number requested, and slide sets or student microscope cases can be priced on the same document.
Science Lab Supplies holds an Importer-Exporter Code and is able to ship to buyers in Nepal, Bangladesh, Zambia, Rwanda, South Africa and Qatar. Send your request through the enquiry cart or the contact page, or find tender details on the lab tender page.
Frequently Asked Questions
How does the class see the image?
The trinocular port takes the HDMI camera through a 0.35x C-mount adapter. The camera sends a 1920 x 1080 picture over HDMI to the 30-inch screen.
Which slides come with the package?
Fifty packs of 50 slides, 26 x 76 mm with ground edges and frosted margin, five packs of 200 cover slips and a 100-slide storage box.
Who supplies the Teaching Microscope and Prepared Slides?
Science Lab Supplies supplies this package from Ambala, India, and can quote it with slide sets and student microscopes.
Is immersion oil needed?
Yes, for the 100x/1.25 objective. A drop of immersion oil is placed between the slide and the 100x objective, and it is wiped off the lens and the slide after use. The other three objectives are used dry.
Related Microscopy Items
A demonstration microscope pairs with student-level kits and the materials to prepare specimens. These items can be quoted with the teaching package to equip a complete microscopy room, from basic cases to stains and dissecting tools.
- Biology Set BM1 – Microscopy — student case with a monocular LED microscope.
- Microscopy Chemicals Set — stains, alcohols and prepared slide sets.
- General Biology Sets — BB1 basic glassware and tools case.
- Dissecting Kit — scalpel, needles and tweezers for specimen preparation.
Browse the full Physics Lab range or all physics lab equipment.
Last updated: 25 September 2026
