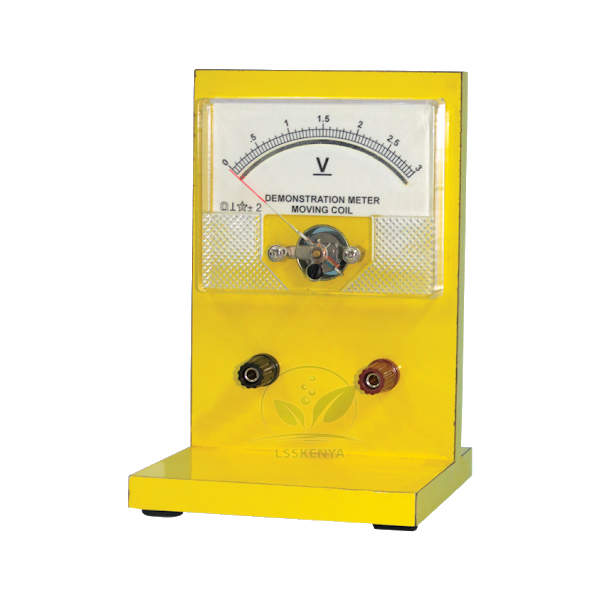

Demonstration Meter Vertical
Product Code : LSK-LM-11133
Demonstration Meter Vertical (SKU LSK-LM-11133) is a teaching meter designed to show how a moving coil meter works, built so that students can be shown all the parts of the meter. Mounted upright on a wooden stand, it is used in school and college physics lessons on current measurement. Supply is handled by Science Lab Supplies from Ambala, India, for schools, colleges, training institutes, tender contractors and distributors.
Specifications
The table below gives every listed detail of this model. In short, it is a vertical moving coil demonstration meter on a wooden stand, with a scale about 80 mm long and an overall size of roughly 115 x 115 x 175 mm, compact enough for the teacher's desk or a student bench.
| Specification | Value |
|---|---|
| SKU | LSK-LM-11133 |
| Type | Demonstration meter, vertical |
| Principle shown | Working of moving coil type meters |
| Purpose | Demonstrating all the parts of the meter |
| Stand | Wooden |
| Scale length | 80 mm (approx.) |
| Overall size | 115 x 115 x 175 mm (approx.) |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Vertical Demonstration Meter
The meter turns the inside of a moving coil instrument into something students can see: a current through the coil produces a turning effect in a magnetic field, and the pointer moves across the scale. It supports lessons on electric current, magnetic effects and measuring instruments with practical school physics lab equipment in India.
- Class 10 science (NCERT Magnetic Effects of Electric Current): linking the force on a current-carrying conductor to how a meter pointer moves, alongside a Bar Magnet Pair Chrome Steel for field-line work.
- Class 12 physics: explaining the moving coil galvanometer and why it needs a shunt or series resistance to act as an ammeter or voltmeter.
- Showing a deflection when a small current is switched on with a Tapping Key Physics Lab from a Laboratory Battery Eliminator.
- Diploma and teacher-training sessions on the construction of analogue meters.
Standard Scope of Supply
The Demonstration Meter Vertical is supplied as a single unit on its wooden stand, with the 80 mm scale as described above. A power source, switch, magnets and connecting leads are not part of the meter; any of them can be added as separate lines on the same quotation for a complete demonstration set.
Packing, MOQ and Lead Time
Quotations are available for a single demonstration meter or for one per section across a group of schools. Science Lab Supplies confirms the packing, delivery time and price for that exact quantity in writing, and related demonstration meters or circuit items can be listed together on one quotation.
Registered as an exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Kenya, Ghana, Ethiopia, Tanzania, Uganda and the UAE. Questions and orders can be sent from the contact page or collected in the enquiry cart, and the lab tender page explains tender quoting.
Frequently Asked Questions
What is the Demonstration Meter Vertical used for?
It is used to show the working of a moving coil type meter, so that students in schools and colleges can see the parts of the meter and understand how a current produces a pointer deflection.
How big is the meter?
The overall size is about 115 x 115 x 175 mm and the scale is about 80 mm long. It stands upright on a wooden stand, so it fits on a teacher's desk or a student bench.
How does it differ from the horizontal demonstration meter?
This model stands vertically on a wooden stand with an 80 mm scale. The horizontal version sits in a transparent case with a bakelite base and an 85 mm scale, rated at ±2.5% FSD.
Who supplies the Demonstration Meter Vertical?
Science Lab Supplies provides it from Ambala, India. Single pieces and larger school quantities can both be quoted, and the quotation can also include a power source, switch and leads for the demonstration.
