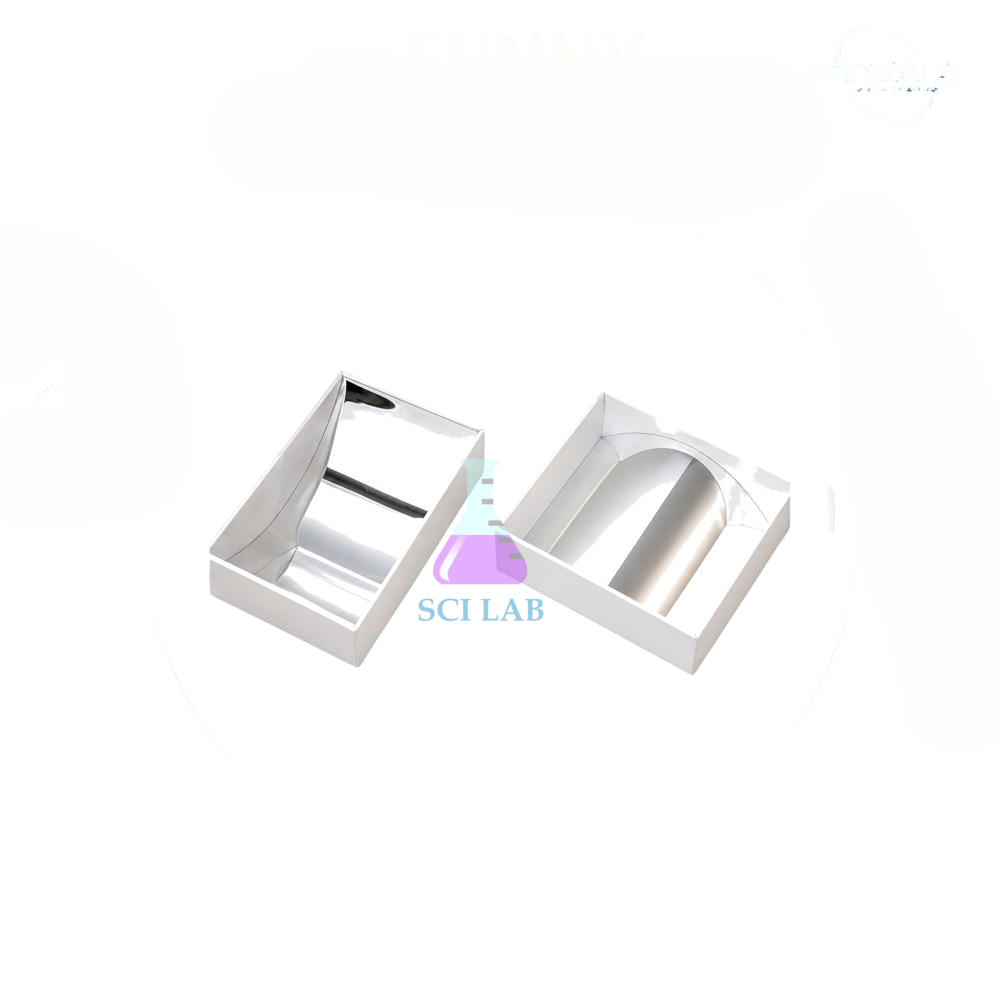

Curved Mirror Effects Model

Product Code : SCL-LAO-12063

The Curved Mirror Effects Model is a specialized optical demonstration apparatus used for teaching the principles of reflection, image formation, and ray tracing. Designed for physics educators and students, this model provides a clear, visual breakdown of how light behaves when striking concave and convex surfaces.

Product Description

This model offers an interactive approach to studying geometric optics in classrooms and instructional laboratories. Built with a high-impact ABS base and vacuum-metallized acrylic optical surfaces, it provides an exceptionally clear reflection without the breaking hazards associated with traditional glass mirrors. The structural design ensures that students can comfortably experiment with focal points, real images, and virtual images without losing optical alignment.

For schools seeking to enhance their inventory of optical didactic models, this apparatus provides excellent educational utility. It bridges the gap between abstract textbook ray diagrams and real-world physical behavior, making it a staple tool for introductory and intermediate physics curriculums. Incorporating this model into your standard setup simplifies complex wave and particle topics for student lab groups.

Key Features

• Dual-Geometry Surfaces: Features both a concave mirror surface and a convex mirror surface on a single, easy-to-rotate assembly.
• Shatterproof Material Construction: Built with premium optical-grade acrylic to ensure complete student safety and long-term durability.
• Stable Footprint Base: Mounted on a weighted, low-profile base that prevents tipping during classroom alignment procedures.
• Integral Measurement Scales: Includes marked metric guidelines to assist students in tracking object distances and image distances precisely.
• High-Contrast Target Markers: Supplied with distinct physical object indicators that make image inversion and magnification visible at a glance.

Technical Specifications

What's Included in the Kit

• 1 x Curved Mirror Effects Model assembly (Concave/Convex combination)
• 1 x Weighted ABS mounting base
• 3 x Configurable object target markers
• 1 x Experiment guide featuring complete ray tracing templates

Applications / Uses

• Demonstrating the difference between real image convergence and virtual image divergence.
• Mapping out experimental ray paths to confirm focal lengths and radius of curvature measurements.
• Verifying the standard mirror equation during undergraduate physics lab sessions:

• Calculating optical magnification parameters where magnification is determined by:

• Enhancing interactive physics demonstrations within structured science education kits.

How to Use the Curved Mirror Effects Model

1. Place the Curved Mirror Effects Model base on a flat, level laboratory table or workbench.
2. Position the mirror assembly to present either the concave or convex surface toward your chosen light source or object target.
3. Place a high-contrast object marker at a measured object distance along the central principal axis.
4. Locate the resulting reflection on a screen or observe it directly to determine whether the image is upright, inverted, real, or virtual.
5. Record the physical image distance using the integrated metric markings on the base plate.

Safety Note: Avoid using high-intensity laser pointers or focused halogen light beams without appropriate protective eyewear to prevent accidental eye strain or retinal damage.

Care & Maintenance

• Cleaning: Wipe the acrylic mirror surface gently using a clean, non-abrasive microfiber cloth; avoid paper towels or standard glass cleaners that could scratch the metallized layer.
• Storage: Store the apparatus inside a cool, dry cabinet away from direct sunlight to preserve the optical coating and prevent UV degradation.
• Handling: Always lift the unit by its molded ABS base rather than gripping the optical surface directly to prevent smudging or fingerprint oils.

Why Choose Science Lab Supplies

Science Lab Supplies is an established global manufacturer and exporter of durable, high-fidelity laboratory instruments. We engineer our products using robust materials that withstand the heavy daily use typical of school and university laboratory environments. Our adherence to rigorous ISO quality control frameworks ensures that each piece of apparatus performs accurately out of the box. Through our reliable global distribution networks, we supply academic institutions worldwide with premium educational gear on time and within budget.

Frequently Asked Questions

What is the advantage of using acrylic over glass for this model?

Acrylic provides excellent reflective clarity while being entirely shatterproof, making it significantly safer and more durable for student handling in school science laboratories.

Can this model be used with standard laser ray boxes?

Yes, the mirror surfaces are perfectly suited for tracing beams from standard multi-line laser ray boxes to show real-time focal point convergence and divergence.

How do you switch between the concave and convex mirror options?

The optical component is mounted on a central swivel point or bracket, allowing users to safely rotate or flip the assembly to change the active surface.

Is this model suitable for advanced university physics courses?

While it is ideal for demonstrating foundational geometric optics, it also provides the structural precision needed for quantitative data collection in undergraduate lab experiments.

Does the apparatus require any external electrical power?

No, the Curved Mirror Effects Model operates completely mechanically using ambient light or external laboratory light sources to show image reflections.
