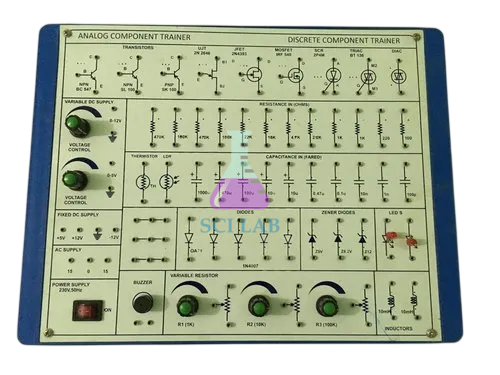

Discrete Component Trainer Circurt Board

Product Code : SCL-EAE-12039

The Discrete Component Trainer Circuit Board is a self-contained electronics laboratory workstation used for prototyping, testing, and analyzing individual semiconductor and passive components in educational environments. Designed for engineering students and electronics instructors, this trainer enables hands-on experimentation with fundamental analog circuits.

Product Description

The Discrete Component Trainer Circuit Board by Science Lab Supplies provides a reliable, comprehensive platform for studying the characteristics of individual electronic components. The apparatus features a wide selection of onboard passive electronic components and active semiconductors, including resistors, capacitors, diodes, Zener diodes, and bipolar junction transistors (BJTs). Constructed on a high-grade, multi-layer glass epoxy printed circuit board (PCB) and mounted inside a rugged, shockproof casing, this workstation stands up to intense daily use in busy academic laboratories.

The system utilizes an intuitive front interface that separates distinct component blocks with clear high-contrast schematic symbols printed directly next to the connection points. It incorporates a built-in, fully regulated and short-circuit-protected DC power source, removing the operational requirement for multiple external desktop power bricks. This compact, layout-focused environment allows vocational students to build, probe, and verify practical circuits without the wiring clutter typical of loose breadboards, making it a critical asset for institutions upgrading their collection of scientific laboratory instruments.

Key Features

• Integrated DC Power Source: Features built-in, stabilized +5V and +12V DC power rails to drive active circuits safely.
• Diverse Component Array: Equipped with multiple distinct values of carbon film resistors, electrolytic capacitors, and switching diodes.
• Onboard Transistor Configurations: Outfitted with pre-mounted NPN and PNP transistors connected directly to accessible terminal nodes.
• Durable Glass Epoxy PCB: Fabricated with high-grade fiberglass laminates to resist heat warp and trace degradation during long laboratory sessions.
• Gold-Plated Test Points: Utilizes wear-resistant 2mm or 4mm insulated safety sockets to guarantee solid electrical conductivity.
• Comprehensive Circuit Visuals: The high-contrast graphic layer displays clear engineering circuit symbols to aid student troubleshooting.

Technical Specifications

What's Included in the Kit

• 1 x Discrete Component Trainer Circuit Board core console unit
• 20 x Multi-colored 2mm banana plug patch cords (red, black, and yellow sets)
• 1 x Detachable 3-pin AC mains power cable
• 1 x Comprehensive English operations manual detailing component layouts and academic lab experiment setups

Applications / Uses

• Semiconductor Analysis Labs: Ideal for plotting characteristic curves for silicon diodes, Zener diodes, and transistors.
• Transistor Circuit Design: Used to construct and evaluate common-emitter and common-base amplifier layouts using the formula:

$$I_C = \beta I_B$$

• Filter Network Prototyping: Allows students to build and map frequency response charts for passive low-pass and high-pass RC networks.
• Comprehensive Technical Curriculums: Complements structured student electrical laboratory coursework within higher-education science kits.
• Interactive Mechanical STEM Work: Integrates smoothly alongside active laboratory assets like digital multi-meters and STEM models & kits.

How to Use the Discrete Component Trainer Circuit Board

1. Position the trainer board flat on a clean, dry, non-conductive laboratory workbench.
2. Confirm the primary AC power toggle switch on the rear panel is set to the OFF position before connecting any patch cords.
3. Wire a standard half-wave rectifier circuit by inserting the provided 2mm banana patch cords between the onboard AC transformer nodes, a 1N4007 diode, and a load resistor.
4. Hook up an external digital multi-meter or desktop oscilloscope across the load resistor test points to track signal performance.
5. Plug the primary power cable into a grounded electrical outlet, flip the main toggle switch to the ON position, and adjust your measuring instruments to monitor the output waveform.

Handling Note: Always switch the primary power toggle to the OFF position prior to changing or moving patch cords on the panel interface to protect sensitive active semiconductor gates from accidental over-voltage damage.

Care & Maintenance

• Socket Integrity: Use only the provided 2mm banana patch cords. Do not force thick gauge wires or oversized probes into the terminal nodes to preserve the internal spring clip tension.
• Panel Upkeep: Clean the composite front panel face and ABS plastic shell periodically using a soft, dry lint-free microfiber cloth. Do not apply liquid sprays or chemical cleaners.
• Safe Storage: Keep the training board inside a dry, clean cabinet free of corrosive moisture, chemical vapors, or extreme temperature variations.

Why Choose Science Lab Supplies

Science Lab Supplies is a premier international manufacturer and global exporter of high-precision scientific laboratory instruments, educational trainers, and institutional school setups. Operating under strict ISO 9001:2015 quality control processes, we guarantee that every engineering workstation provides stable electrical regulation and long-term structural accuracy. We support global educational institutions with comprehensive inventory solutions, including secondary school mathematics kits, specialized physics trainers, and advanced engineering trainers. Our global supply networks ensure reliable, damage-free international shipping directly to institutional clients worldwide.

Frequently Asked Questions

• Can students test external components on this trainer circuit board?

This specific trainer board is engineered with permanently mounted, pre-selected internal components to ensure circuit protection; external components should be analyzed using a standalone breadboard unit.

• Does this discrete component workstation require an external bench supply?

No, the unit features a built-in, fully regulated and short-circuit-proof DC power supply module that runs directly from standard 220V–240V AC wall lines.

• What type of transistors are pre-mounted on the interface panel?

The board houses industry-standard general-purpose silicon transistors, specifically the BC547 NPN transistor and the BC557 PNP transistor.

• Are the internal active components protected against accidental short circuits?

Yes, the integrated power rails feature active thermal cutoffs and current limiters that temporarily power down supply nodes during grounding faults.

• Is this training board suitable for advanced university electronics engineering labs?

Yes, its high signal stability, durable glass epoxy PCB composition, and precise component ratings make it perfect for both introductory vocational classes and advanced university engineering coursework.
