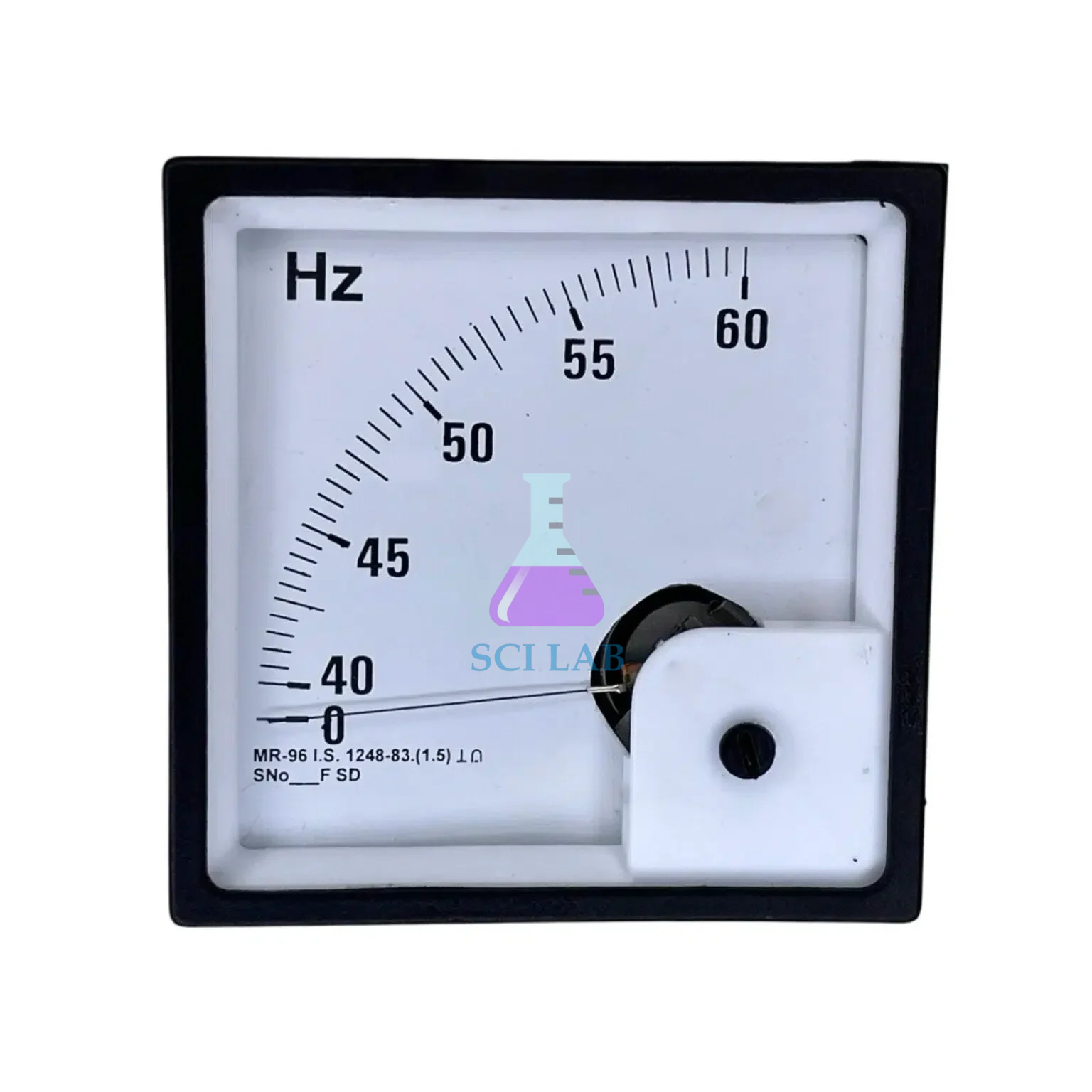

Laboratory Analog Frequency Meter

Product Code : SCL-EAE-12252

The Laboratory Analog Frequency Meter is an electrical laboratory measuring instrument used for indicating the frequency of an AC circuit on an analog scale. It is suitable for schools, colleges, physics labs, electrical laboratories, electronics classrooms, technical institutes, distributors, and educational procurement buyers.

Product Description

The Laboratory Analog Frequency Meter from Science Lab Supplies is intended for practical electrical measurement where students and teachers need to observe circuit frequency in hertz. The exact measuring range, input voltage, scale layout, accuracy class, mounting format, terminals, body material, and certification must be confirmed before publication.

This analog frequency meter supports experiments involving AC supply behaviour, electrical panels, generators, power-system trainers, and circuit demonstration boards where the meter rating matches the applied signal. It gives learners a direct visual indication of frequency variation and helps connect theory with practical electrical measurement.

Key Features

• Analog frequency indication: displays AC frequency on a needle-and-scale format where final scale details are verified.
• Laboratory measurement use: suitable for supervised AC circuit and power-system experiments.
• Physics and electrical training support: useful for lessons on alternating current, supply frequency, generators, and measurement instruments.
• Frequency range verification: hertz range must be confirmed from the supplied model label or datasheet.
• Classroom demonstration value: helps students observe frequency changes without relying only on numerical theory.
• Reusable lab instrument: suitable for repeated school, college, STEM, and vocational electrical training sessions.
• Trustworthy specification handling: no accuracy, calibration, protection, or certification claim is made without documentation.

Technical Specifications

What's Included in the Kit

• 1 × Laboratory Analog Frequency Meter main unit
• Test leads, patch cords, mounting accessories, user manual, calibration note, or test certificate

Applications / Uses

• Measuring AC frequency in supervised school and college electrical experiments
• Supporting lessons on alternating current, waveform behaviour, and hertz measurement
• Using with compatible AC power supplies, generator trainers, electrical panels, and circuit boards
• Demonstrating frequency stability and variation in educational power-system setups
• Helping students prepare observation tables, readings, and practical records
• Supporting physics, electrical, electronics, STEM, and vocational training laboratories

How to Use the Laboratory Analog Frequency Meter

1. Confirm the frequency range, input voltage rating, terminal type, and wiring instructions before use.
2. Place or mount the meter on a dry, stable, non-conductive laboratory surface.
3. Switch off the circuit before making connections.
4. Connect the meter only to a compatible AC circuit as specified for the final supplied model.
5. Power the circuit and allow the pointer to settle before taking the reading.
6. Read the frequency value directly from the analog scale in hertz.
7. Record the reading with the correct unit and compare it with the experiment requirement.
8. Switch off the circuit before disconnecting the meter.

Safety note: Use only under trained supervision. Do not exceed the verified input rating, do not connect the meter to DC unless the model permits it, do not use damaged leads, and do not open the case while connected to an energized circuit.

Care & Maintenance

• Store the meter in a dry, dust-free cabinet after use.
• Inspect the pointer, scale, terminals, leads, and case before every practical session.
• Clean the outer body with a soft, dry cloth; avoid liquid sprays unless approved.
• Arrange qualified service support for loose terminals, pointer faults, calibration drift, or internal electrical damage.

Why Choose Science Lab Supplies

Science Lab Supplies manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. Its lab-meter and electrical ranges support classroom measurement through ammeters, voltmeters, galvanometers, demonstration meters, circuit trainers, and related electrical apparatus. The brand supplies educational laboratory products for institutional, distributor, tender, and export requirements.

Frequently Asked Questions

What is a Laboratory Analog Frequency Meter used for?

A Laboratory Analog Frequency Meter is used to measure the frequency of an AC circuit and display the reading on an analog scale in hertz.

What frequency range does this meter measure?

The exact frequency range is not confirmed. Add hertz values only after checking the final model label, datasheet, or calibration document.

Is this meter suitable for school physics labs?

Yes. It is suitable for supervised school and college physics or electrical laboratories when the applied circuit remains within the verified input rating.

Can it be used for DC circuits?

Frequency meters are normally used for AC frequency measurement. Do not use it on DC circuits unless the final product documentation specifically permits that use.

Does it include test leads?

Included accessories are not confirmed. Add test leads, patch cords, mounting hardware, or certificate details only after checking the final supply specification.

Is calibration or accuracy certification included?

Calibration and accuracy documentation are not confirmed. Add accuracy class, calibration certificate, or test-certificate claims only after verifying the supplied model documentation.
