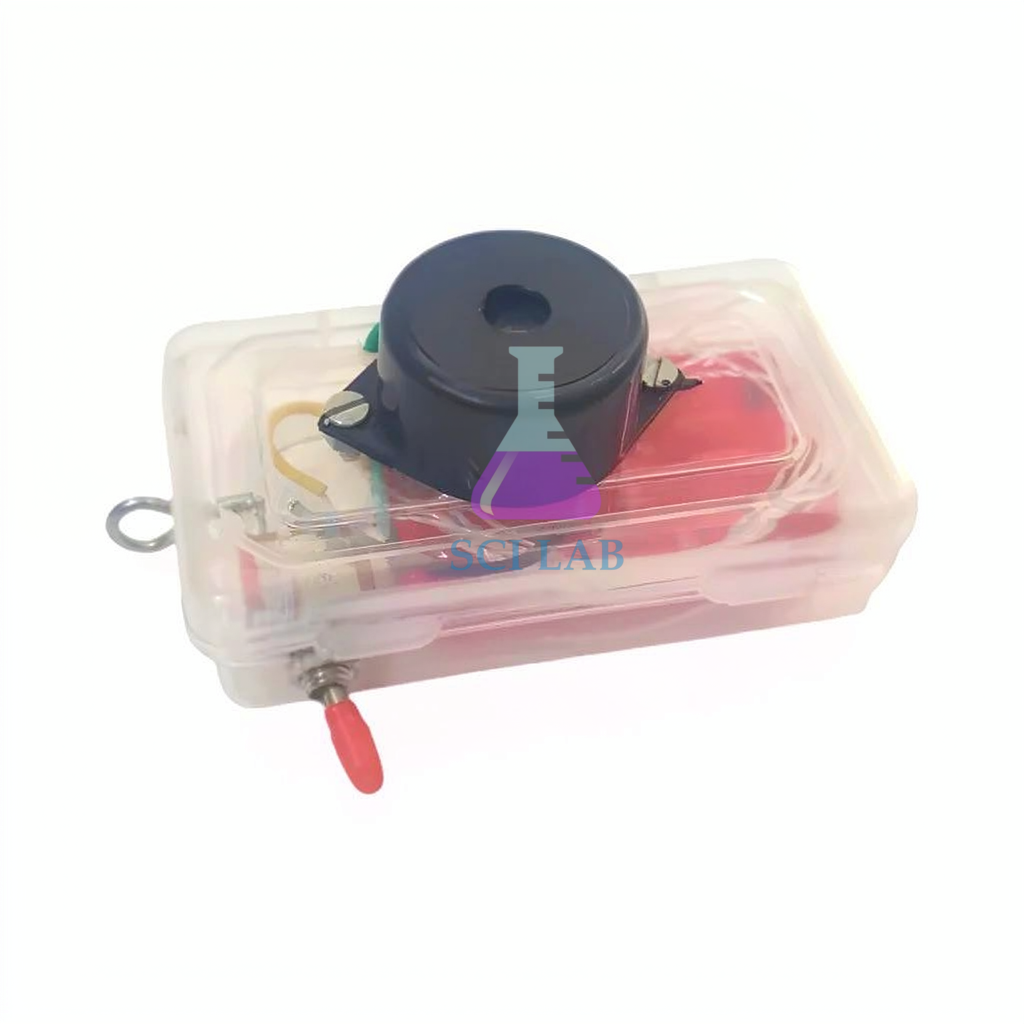

Doppler Effect Kit lab

Product Code : SCL-PL-12125

The Doppler Effect Kit lab is an educational physics apparatus used for demonstrating the frequency shift of sound waves caused by the relative motion between a source and an observer. Designed for high school and university physics laboratories, this kit allows students to quantitatively analyze wave mechanics and acoustic phenomena safely and accurately.

Product Description

The Doppler Effect Kit lab from Science Lab Supplies is built to provide an interactive, audio-visual experience of acoustic frequency shifts. The system utilizes a variable-speed motorized carrier system running along a tracking rail that carries a calibrated sound generator. As this sound source moves cleanly toward or away from the stationary detector, an integrated digital display tracks the shift in real-time.

This laboratory setup replaces makeshift or purely software-based digital simulations with a robust, tactile mechanical apparatus. The structural frame is constructed from high-grade structural aluminum alloy and balanced steel components to minimize physical vibrations and track drift during tracking cycles. It provides high pedagogical value by linking wave kinematics directly with acoustic data, making it an essential addition to any modern physics lab equipment layout.

Key Features

• Calibrated Sound Generator: Emits a highly stable sinusoidal tone at a fixed frequency to establish an accurate experimental baseline.
• Variable-Speed Motor Drive: Allows students to adjust the physical velocity of the moving sound source to test different frequency shifts.
• Integrated Digital Sensor Array: Captures and displays real-time frequency changes cleanly without manual calibration adjustments.
• Durable Aluminum Track Base: Heavy-duty base ensures stability and reduces operational vibration across the workbench.
• Low-Voltage Operation System: Runs safely on low-voltage DC power inputs to comply with standard classroom safety regulations.
• High-Visibility Metrics: Built-in display interface presents velocity and frequency data simultaneously for easy data logging.

Technical Specifications

What's Included in the Kit

• 1 x Main Track Base with Motorized Drive Assembly
• 1 x Insulated Moving Sound Source Module
• 1 x High-Sensitivity Stationary Receiver Probe
• 1 x Digital Frequency Display Unit
• 1 x 12V DC Power Supply Adapter
• 1 x Experiment Manual with Graphic Data Worksheets

Applications / Uses

• Demonstrating frequency changes ($\Delta f$) when a sound source moves relative to a stationary observation point.
• Calculating the speed of sound in air by linking measured frequency shifts with known source velocities.
• Providing high-engagement modules within standard wave motion apparatus collections.
• Serving as an interactive STEM workshop component for high school physics tournaments and custom science kits.
• Validating the mathematical Doppler equations for classical wave propagation.

How to Use the Doppler Effect Kit lab

1. Set Up the Frame: Place the tracking base flat on a stable laboratory workbench and clear any obstructions from the path of motion.
2. Power the Module: Connect the 12V DC adapter to the main drive unit and switch on the digital display panel.
3. Calibrate the Receiver: Activate the sound source in its stationary position and record the baseline frequency on your sheet.
4. Initiate Motion: Adjust the speed governor to your first target velocity and activate the motor to move the sound source towards the receiver.
5. Record the Shifts: Log the elevated frequency as the source approaches and the dropped frequency as it recedes from the microphone array.
6. Deactivate Safely: Turn off the motor drive first, then disconnect the power supply cord when the measurements are finalized.

Safety Handling Note: Keep loose clothing, hair, and fingers away from the rotating or moving track elements while the motor drive is actively running.

Care & Maintenance

• Track Debris Cleaning: Wipe the guide rails periodically with a dry microcloth to prevent dust buildup from stalling the motorized carrier.
• Sensor Care: Guard the high-sensitivity receiver microphone from drop impacts and liquid spills to maintain accurate acoustic data tracking.
• Storage Guidelines: Pack the entire kit components back into their original padded layout box inside a low-humidity supply cabinet.

Why Choose Science Lab Supplies

Science Lab Supplies is a premier manufacturer and global exporter of high-precision scientific laboratory instruments, STEM didactic setups, and mathematics kits. With decades of dedicated experience in the laboratory supply sector, our production facilities follow strict quality control benchmarks to guarantee exact mechanical tolerances. We cater to institutional buyers, schools, and international wholesale distributors globally, providing exceptional consistency and optimized shipping execution for large educational tenders.

Frequently Asked Questions

How does the Doppler Effect Kit lab demonstrate frequency shifts?

The kit moves a stabilized sound generator physically along a tracking guide at a known velocity. As the source moves toward the receiver, the sound waves compress, showing an increased frequency reading on the display screen.

Can this physics kit be powered by a standard wall outlet?

Yes, the package includes a universal 12V DC power adapter that plugs into standard laboratory AC wall outlets to step down the current safely.

What is the base frequency of the included sound generator?

The sound generator is pre-calibrated to output a clear, steady nominal sinusoidal tone of 400 Hz or 500 Hz to ensure optimal tracking clarity.

Is the velocity of the moving sound source adjustable?

Yes, the main drive unit features a built-in variable speed electronic governor that allows students to adjust the carrier speed for comparative data mapping.

Does this laboratory kit include any data plotting worksheets?

Yes, the complete instructions manual features structured tables, coordinate mapping graphs, and step-by-step mathematical examples using standard Doppler formulas.
