Inductive Load 415V AC Three Phase

Product Code : SCL-EAE-12045

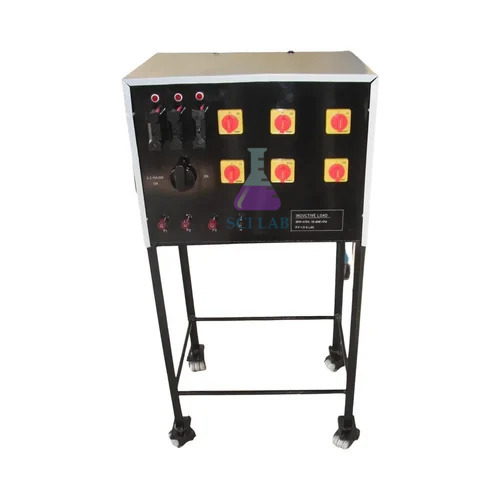

The Inductive Load 415V AC Three Phase is a stationary electrical testing workstation used for simulating lagging power factor conditions in three-phase networks. Engineered for electrical engineering students and laboratory technicians, this apparatus provides a balanced, variable reactive load to safely analyze generator performance, transformer regulation, and power network stability under reactive current demands.

Product Description

The Inductive Load 415V AC Three Phase by Science Lab Supplies provides a highly precise and reliable platform for executing advanced electrical machinery experiments. This laboratory apparatus consists of a balanced array of industrial-grade, copper wire-wound inductors wrapped around low-loss laminated silicon steel cores. The internal magnetic cores are isolated structurally to reduce eddy current losses and prevent magnetic saturation during prolonged testing periods under full capacity.

The entire electrical grid is securely housed inside a thoroughly ventilated, powder-coated sheet steel enclosure, ensuring long-term physical durability and high resistance to thermal stress. The front panel interface features high-durability rotary selectors or independent toggle switches that permit balanced step-by-step changes to the inductive current across all three phases simultaneously. This self-contained bench apparatus eliminates the hazards of improvised unshielded coil rigs, making it an indispensable asset for institutions upgrading their inventory of premium scientific laboratory instruments.

Key Features

• Balanced Three-Phase Loading: Provides equal inductive reactance steps across all three lines to maintain phase equilibrium.
• High-Grade Copper Windings: Features premium insulation class copper coils wound on low-loss laminated steel cores for superior structural lifespan.
• Multi-Step Incremental Control: Outfitted with robust front panel switch steps to adjust reactive power consumption smoothly up to 3 kVAR.
• Ventilated Metal Casing: Built inside a heavy-gauge, anti-corrosive steel frame featuring dedicated vents for passive thermal regulation.
• Inductive Surge Protection: Integrates metal-oxide varistors (MOVs) to suppress transient voltage spikes when changing load steps under load.
• Insulated Shrouded Terminals: Equipped with fully insulated 4mm safety sockets for secure phase connections ($L_1, L_2, L_3$) and neutral line tracking.

Technical Specifications

What's Included in the Kit

• 1 x Inductive Load 415V AC Three Phase master load bank enclosure
• 6 x High-current insulated patch cords with 4mm safety connectors
• 3 x Removable phase bridging links
• 1 x Comprehensive English operations manual detailing power calculations and institutional lab experiment setups

Applications / Uses

• Alternator Vector Diagram Mapping: Allows students to apply lagging loads to educational alternators to plot excitation changes.
• Power Factor Correction Analysis: Functions as the primary inductive sink to demonstrate reactive compensation using parallel capacitor banks.
• Three-Phase Transformer Testing: Used to observe voltage regulation curves when loading transformer secondary windings with reactive current.
• Curriculum-Aligned Engineering Training: Serves as a fundamental reactive power loading block within advanced university science kits.

How to Use the Inductive Load 415V AC Three Phase

1. Place the load bank enclosure on a flat, level, and well-ventilated laboratory floor or workbench surface.
2. Confirm that all individual front panel load toggle switches are flipped to their absolute OFF positions prior to wiring.
3. Wire the incoming three-phase supply lines from your source under test directly to the $L_1, L_2$, and $L_3$ safety input sockets, ensuring the neutral terminal is properly connected.
4. Energize the primary three-phase supply to 415V AC and sequentially turn on the switch steps to introduce inductive current to the system.
5. Track the phase voltage and current indicators using external bench multi-meters to calculate total reactive power consumption using the equation:

$$Q = \sqrt{3} \cdot V_L \cdot I_L \cdot \sin\theta$$

Safety Note: Never disconnect the input patch cords while a load switch step is in the active ON position. Breaking an active inductive loop can generate high-voltage electrical arcing across the terminal nodes.

Care & Maintenance

• Dust Elimination: Periodically inspect the ventilation grilles and clean out dust accumulation using dry compressed air or a soft microfiber cloth.
• Insulation Integrity Check: Routinely audit the input terminal sockets for signs of localized heating, discoloration, or loose mechanical joints.
• Storage Environment: Keep the apparatus inside a well-ventilated, dry storage bay free from corrosive moisture or chemical fumes to avoid winding oxidation.

Why Choose Science Lab Supplies

Science Lab Supplies is an internationally recognized manufacturer and global exporter of high-precision laboratory apparatus, vocational trainers, and detailed training setups. Operating under strict ISO 9001:2015 quality management systems, we ensure our hardware delivers exceptional structural longevity, accurate calibrations, and comprehensive safety protections. We proudly support vocational centers, polytechnics, and engineering universities across the globe with durable, customized inventory solutions and dependable worldwide supply logistics.

Frequently Asked Questions

• Can this inductive load bank be configured in a delta layout?

This standard laboratory model is pre-wired internally in a star (wye) configuration with an accessible neutral point; custom delta-configured variants can be ordered upon request.

• What is the power factor rating of this inductive apparatus?

The unit functions as a near-pure inductive load bank, maintaining a highly lagging power factor close to zero ($\cos\theta \approx 0.1$) across all switchable steps.

• Is the metal chassis frame grounded to protect users from static leakage?

Yes, the heavy-gauge sheet steel enclosure features a dedicated, low-resistance internal safety grounding line bonded directly to the primary chassis structure.

• What happens if a single phase experiences an overcurrent event?

The load bank is engineered with independent branch circuit protection that trips the affected phase line immediately to safeguard the inductor coils.

• Can this unit handle continuous operation during loading projects?

Yes, because it is engineered with high-temperature Class H insulated copper wires and open-air cooling vents, it reliably manages continuous rated loads during prolonged experiments.

Explore our complete online catalog to discover more power system equipment, or contact our engineering division today to add this premium Inductive Load 415V AC Three Phase to your department's inventory of professional didactic models.
