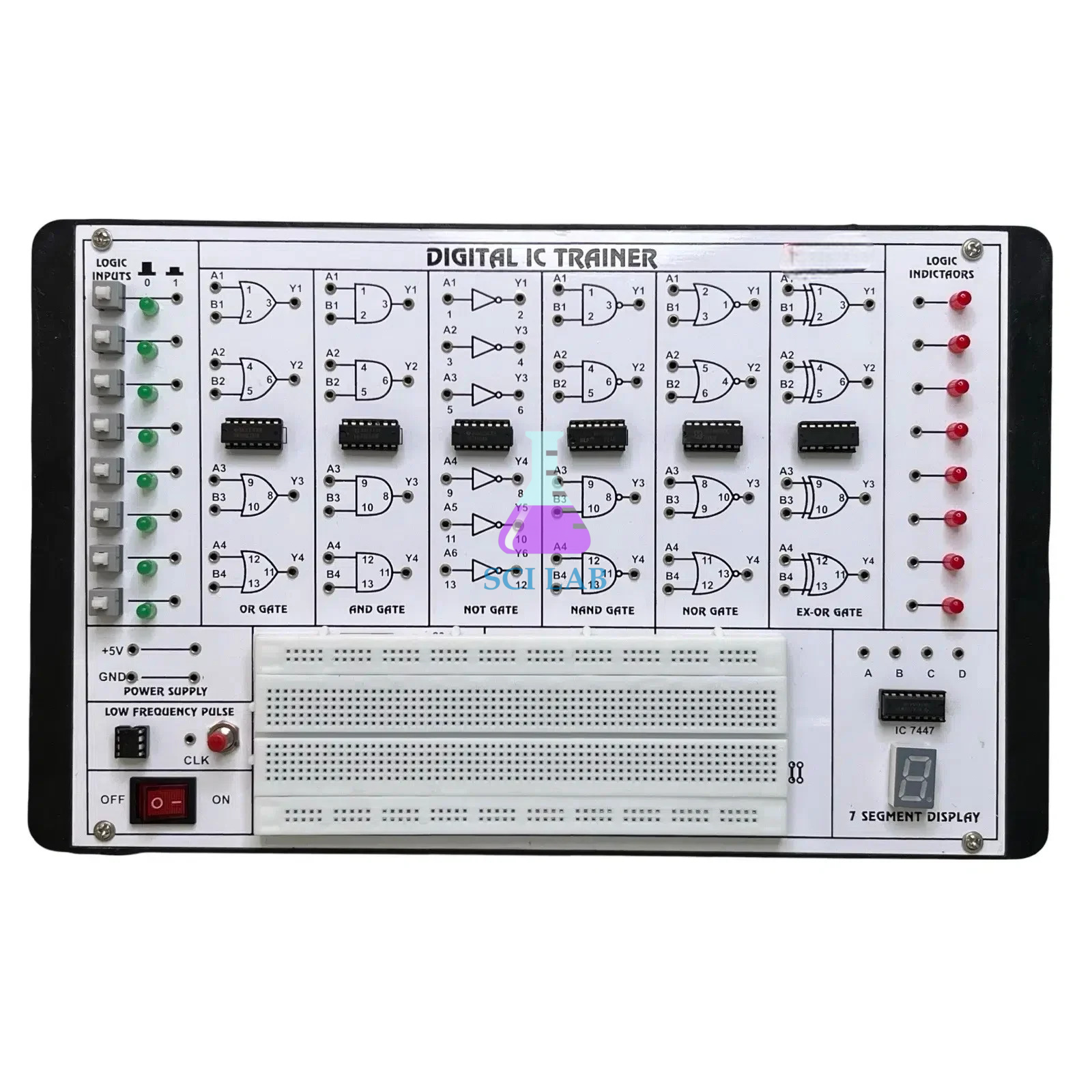

DigitaL IC Trainer Electronics Lab

Product Code : SCL-EAE-12056

The Digital IC Trainer Electronics Lab apparatus is a self-contained educational trainer used for studying and constructing digital electronic circuits through practical experiments. It is designed for students, teachers, engineering colleges, technical institutes, vocational centres, and electronics laboratories that require hands-on investigation of logic gates, digital inputs, outputs, pulse signals, and display circuits.

Product Description

The Digital IC Trainer provides an integrated platform for practical learning in fundamental digital electronics. The verified configuration includes six types of on-board logic gates: OR, AND, NOT, NAND, NOR, and EX-OR. It also provides a breadboard, 8-bit logic inputs and outputs, a low-frequency mono pulser, and a seven-segment decoder.

The apparatus incorporates an IC-regulated +5 V DC, 250 mA power supply and operates from 230 V, 50 Hz mains supply in the verified reference configuration. Connections are brought out through 2 mm brass sockets for structured circuit assembly using compatible patch cords. It complements other Electronics Lab Equipment and Electrical and Electronics apparatus used in practical technical education.

Key Features

• Six on-board logic-gate types: Includes AND, OR, NOT, NAND, NOR, and EX-OR gates.
• Dedicated gate sections: Provides four OR, four AND, six NOT, four NAND, four NOR, and four EX-OR gates.
• 8-bit digital I/O: Supports practical experiments involving eight-bit logic inputs and outputs.
• Breadboard facility: Enables circuit construction and experimental interconnections.
• Seven-segment decoder: Supports basic study of digital display and decoding principles.
• Low-frequency mono pulser: Provides a pulse source for digital circuit experiments.
• Regulated +5 V supply: Delivers +5 V DC at 250 mA in the verified configuration.
• Laboratory connection system: Uses 2 mm brass sockets and patch cords for experimental wiring.

Technical Specifications

What's Included in the Kit

• 1 × Digital IC Trainer main unit
• 2 mm patch cords
• 1 × User manual

The available reference does not identify separate loose ICs as standard accessories; therefore, no additional IC set is claimed as included.

Applications / Uses

• Studying AND, OR, NOT, NAND, NOR, and EX-OR logic gates.
• Constructing basic digital electronics experiments.
• Observing and comparing logic input and output states.
• Learning digital pulse and switching principles.
• Studying seven-segment decoding concepts.
• Building experimental circuits on the integrated breadboard.
• Supporting practical lessons in diploma, vocational, undergraduate, and engineering laboratories.
• Complementing broader Engineering Laboratory Equipment programs.

How to Use the Digital IC Trainer Electronics Lab

1. Place the trainer on a clean, dry, and stable laboratory bench.
2. Review the required circuit diagram and experiment objective.
3. Keep the trainer switched off while making or changing connections.
4. Select the required on-board logic gates or breadboard section.
5. Use the 2 mm patch cords to complete the experimental circuit.
6. Apply the required logic inputs and energize the trainer.
7. Observe the corresponding output states or seven-segment response.
8. Record results and compare them with the theoretical truth table or expected circuit operation.
9. Switch off the trainer before changing circuit connections.

Safety note: Verify all circuit connections before applying power. Do not short supply terminals or alter wiring while the apparatus is energized.

Care & Maintenance

• Keep the trainer, sockets, breadboard, and patch cords clean and dry.
• Never make circuit modifications while power is switched on.
• Avoid excessive force when inserting wires or connecting patch cords.
• Store the trainer in a clean, dry, dust-free environment after use.

Why Choose Science Lab Supplies

Science Lab Supplies states that its operations date back to 1986 and offers laboratory equipment for electronics, physics, engineering, science, and technical education. The company positions itself as a manufacturer, supplier, and exporter serving institutional laboratory requirements.

Its portfolio includes digital electronics trainers and related teaching apparatus for practical laboratory work. Buyers can also explore the broader range for multidisciplinary institutional procurement.

Frequently Asked Questions

What is a Digital IC Trainer used for?

A Digital IC Trainer is used for practical study and construction of digital electronic circuits. It allows students to work with logic gates, digital inputs and outputs, pulse signals, breadboard circuits, and display-decoding functions.

Which logic gates are available on this trainer?

The verified configuration includes AND, OR, NOT, NAND, NOR, and EX-OR gates. It provides multiple gates of each type for practical circuit experiments.

What power supply does the Digital IC Trainer use?

The verified configuration includes an IC-regulated +5 V DC, 250 mA supply and operates from 230 V, 50 Hz mains power.

Does the Digital IC Trainer include a breadboard?

Yes. The verified product configuration includes one breadboard for constructing and testing experimental digital circuits.

How many logic inputs and outputs are provided?

The verified configuration provides 8-bit logic inputs and outputs, enabling practical study of digital states and circuit behaviour.

What accessories are included with the trainer?

The verified standard accessories are 2 mm patch cords and a user manual. No additional loose IC kit is claimed as standard because it is not identified in the available product reference.
