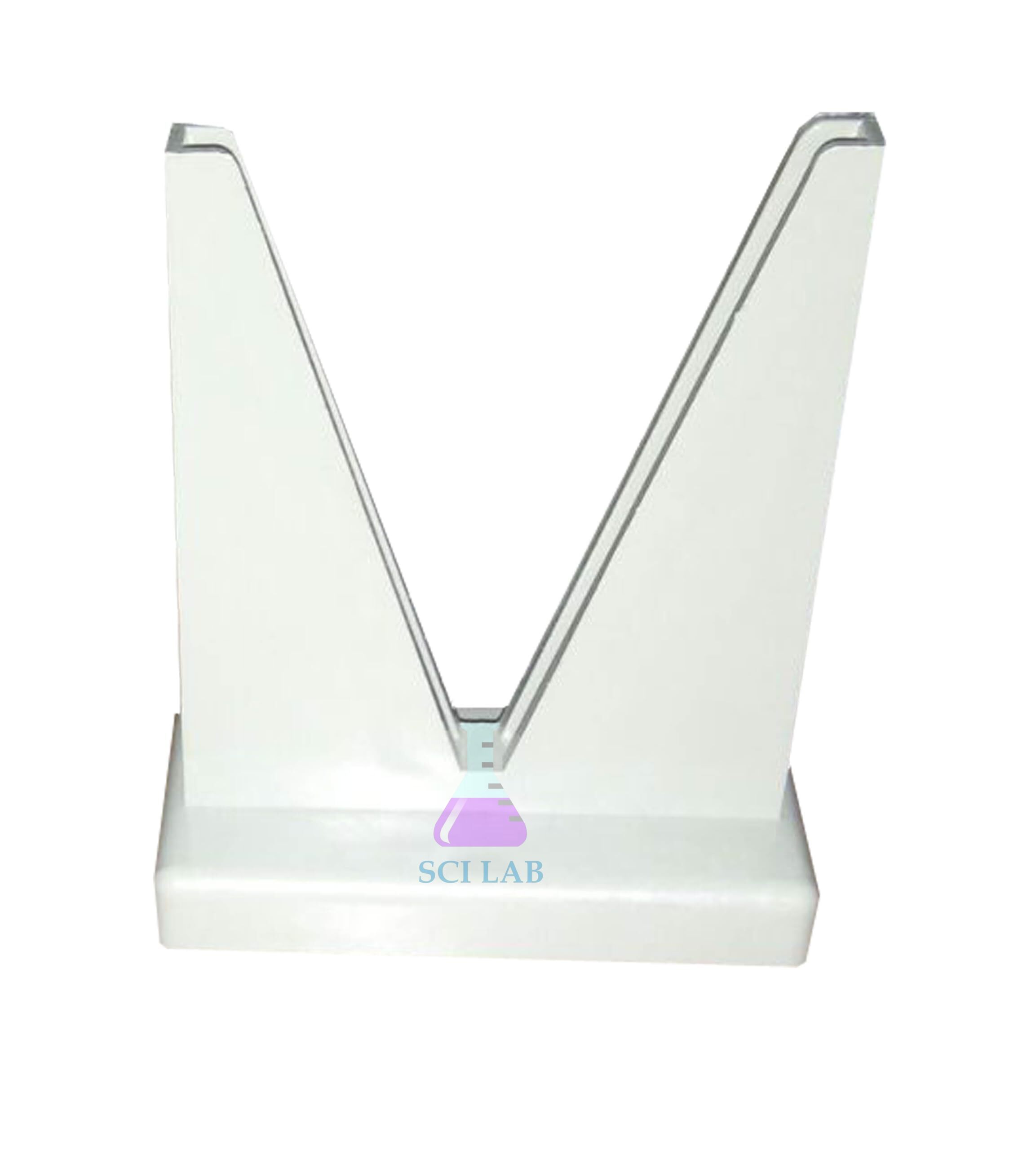

Plastic Lens Holder V-shaped

Product Code : SCL-LAO-12065

The Plastic Lens Holder V-shaped is a lightweight optical mounting tool used for securing spherical lenses and mirrors during geometric physics experiments. Designed for science educators and students, this holder ensures stable alignment along optical tracks to facilitate accurate focal length measurements and light refraction tracking.

Product Description

This mounting accessory features a molded polymer frame designed to hold optical elements firmly without scratching their delicate surfaces. The integrated V-shaped groove geometry centers optical components of varying diameters automatically, eliminating the need for complex multi-axis adjustments during class hours. Its stable base slides smoothly across flat laboratory tables or fits standard bench tracks.

For institutions upgrading their standard, this holder provides a cost-effective, durable solution for everyday classroom settings. The rugged construction withstands drops and heavy handling by student groups, making it an enduring asset for general physics instruction.

Key Features

• Self-Centering V-Groove: Features a precisely engineered V-shaped notch that automatically centers lenses along the primary optical path.
• Non-Marring Polymer Material: Constructed from durable, high-density plastic that prevents scratching on glass or acrylic optical components.
• Universal Bench Compatibility: Designed as an essential part of your optical bench accessories, fitting standard metric optical rails seamlessly.
• Stable Footprint Design: Built with a wide, flat bottom base to maintain a steady vertical alignment during benchtop light alignment procedures.
• Lightweight Frame: Weighs less than traditional metal stands, reducing shipping costs and making kit storage highly manageable.

Technical Specifications

What's Included in the Kit

• 1 x Plastic Lens Holder V-shaped unit
• 1 x Integrated securing strap or thumbscrew assembly
• 1 x Product instruction sheet with alignment tips

Applications / Uses

• Holding a convex or concave lens at a fixed position during focal length verification labs.
• Supporting a convex mirror holder setup to observe virtual image formation behind the optical plane.
• Constructing multi-lens telescope or microscope mockups within student optics experiment kits.
• Verifying the thin lens equation during high school and undergraduate science classes:

How to Use the Plastic Lens Holder V-shaped

1. Place the plastic lens holder base onto your horizontal laboratory work surface or mount it directly onto an optical track.
2. Position the spherical lens or mirror vertically into the V-groove channel.
3. Secure the optical element using the integrated retaining mechanism to prevent it from sliding out of alignment.
4. Align the molded central index line of the holder with the corresponding measurement scale on your optical bench.
5. Direct your light or laser ray box through the lens center to begin taking optical data readings.

Handling Note: Do not expose the plastic holder to direct open flames or high-wattage incandescent light sources for prolonged periods to prevent structural warping.

Care & Maintenance

• Cleaning: Wipe down the plastic surfaces with a damp microfiber cloth and mild dish soap; avoid harsh organic solvents like acetone.
• Storage: Store the holders inside a cool, dry equipment bin away from heavy metal tools that could deform the plastic edges.
• Handling: Avoid overtightening the integrated securing mechanism to protect both the lens edges and the plastic threads from stripping.

Why Choose Science Lab Supplies

Science Lab Supplies is a premier global manufacturer and exporter of trusted laboratory instruments and didactic models. We leverage decades of production expertise to build affordable, reliable educational tools that satisfy strict institutional requirements. Our specialized manufacturing facilities apply stringent quality checks to guarantee long-term durability in academic settings. With comprehensive export networks, we ensure efficient bulk delivery to schools, colleges, and educational distributors worldwide.

Frequently Asked Questions

What sizes of lenses can this V-shaped holder accommodate?

The holder safely accommodates spherical lenses and mirrors with diameters ranging from 38 mm up to 50 mm.

Does this holder fit standard metal optical benches?

Yes, the flat rectangular index base is designed to sit securely on flat surfaces or interface with standard metric optical bench rail channels.

Is the plastic material chemical resistant?

The high-density polymer frame resists standard laboratory exposure to water, alcohols, and diluted acids, though organic solvents should be avoided.

Does it require separate tools to lock the lens in place?

No, the built-in friction mechanism or thumbscrew allows students to lock lenses securely into the V-notch entirely by hand.

Can it hold thick lenses or prisms?

It is optimized for standard thin spherical lenses and mirrors; wide rectangular prisms may not align properly within the 90-degree V-groove.
