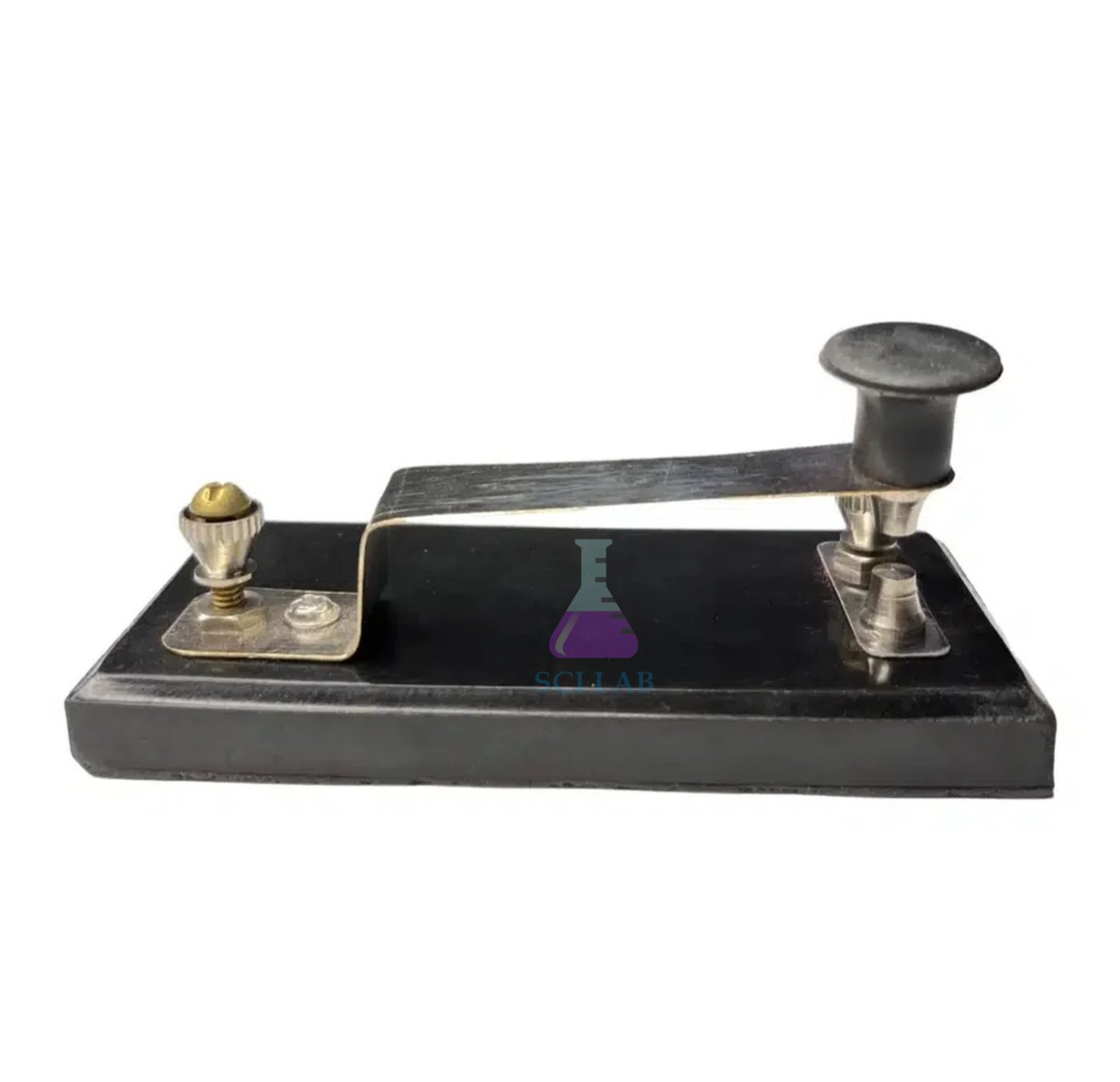

Tapping Key Physics Lab

Product Code : SCL-EAE-12118

The Tapping Key Physics Lab is a precision-engineered momentary contact switch used for making or breaking electrical connections instantaneously in physics experiments. Designed primarily for science students and educators, this device provides controlled brief current applications to protect sensitive instruments during electromagnetism, inductance, and circuit measurements.

Product Description

The Tapping Key Physics Lab from Science Lab Supplies features a heavy-duty insulating block base that prevents accidental electrical grounding to the workbench. A resilient brass spring strip provides crisp tactical feedback and returns to the open circuit position immediately when finger pressure is released. This mechanical action ensures that electrical current passes through the circuit only for the exact duration of the tap.

This classic instrument allows precise determination of ballistic galvanometer deflections, induction phenomena, and potentiometer balancing values. It functions seamlessly within standard configurations, offering a mechanical safety interface for low-voltage setups. By eliminating continuous electrical current flow, the key prevents early battery drainage and reduces resistive heating across connected components.

Key Features

• Solid Brass Construction: The contact points and leaf spring are fabricated from a premium brass alloy to maintain high electrical conductivity and uniform spring resilience.
• Heavy Insulating Base: Features a robust, non-conductive polymer block base that completely isolates the electrical path from the table surface.
• Momentary Spring Return: The integrated brass spring strip guarantees immediate circuit opening upon releasing the key button, ensuring user control.
• Universal Binding Posts: Equipped with two nickel-plated brass terminal screws that easily accept standard banana plugs, spade lugs, or bare hookup wire.
• Ergonomic Press Button: Outfitted with a high-durability insulating finger knob to ensure safe user handling during repeated tactile operations.
• Low Mechanical Fatigue: The precision-machined spring element maintains its elastic properties over thousands of continuous operational cycles.

Technical Specifications

What's Included in the Kit

• 1 x Tapping Key Physics Lab unit with pre-mounted binding posts
• 1 x Instructional leaflet with elementary circuit wiring diagrams

Applications / Uses

• Controlling short current pulses in induction coil circuits to study localized magnetic flux changes.
• Preventing continuous current flow during sensitive resistance balance testing on Wheatstone meter bridges.
• Serving as an interactive manual control switch in student-led workshops.
• Protecting high-sensitivity galvanometers by limiting initial current exposure via quick tapping inputs.
• Adding a modular mechanical switch inside custom educational setups and laboratory consumables packages.

How to Use the Tapping Key Physics Lab

1. Clean Terminals: Check both terminal binding posts to eliminate debris or residual surface oxidation before starting your circuit path assembly.
2. Wire in Series: Wire the tapping key in series within your low-voltage DC experiment loop using standard 4mm patch cords or bare hookup wires.
3. Establish Current Flow: Press down on the insulating finger knob firmly to bring the brass contacts together, closing the circuit loop instantly.
4. Open the Loop: Release your finger pressure from the knob; the integrated brass leaf spring automatically returns the key upward, breaking the electrical path.

Safety Handling Note: Only use this low-voltage switch with currents under 2 Amperes and voltages below 24V DC to avoid contact arcing, point pitting, or excessive heat accumulation.

Care & Maintenance

• Contact Cleaning: Periodically wipe the underlying brass contact points with a dry lint-free cloth or a clean pencil eraser to remove accumulated oxide or carbon tracking.
• Proper Storage: Keep the instrument in a dust-free storage cabinet alongside related laboratory instruments to maintain optimal contact hygiene.
• Spring Protection: Ensure the leaf spring tension remains unbent by avoiding excessive vertical force or heavy impacts during school laboratory operations.

Why Choose Science Lab Supplies

Science Lab Supplies is an established manufacturer and global exporter of elite scientific laboratory instruments, STEM didactic models, and educational kits. Drawing on decades of manufacturing experience, our specialized production facilities enforce strict quality control parameters to deliver premium educational apparatuses. We supply institutional buyers, government school tenders, and independent educational distributors globally with scalable logistical execution and uniform product consistency.

Frequently Asked Questions

What does a tapping key do in a physics laboratory?

A tapping key provides momentary contact control within an electrical path, allowing users to make or break a circuit loop instantaneously by pressing or releasing the key.

Why is brass used for the spring contact strip?

Brass offers superior electrical conductivity, high resistance to atmospheric oxidation, and excellent structural elasticity, which preserves the spring back-action over repeated use.

Can this tapping key handle 220V mains electricity?

No, this device is engineered explicitly for low-voltage educational circuit setups up to 24V DC and should never be connected to alternating current mains power supply lines.

How does a tapping key protect sensitive laboratory meters?

By enabling rapid momentary contacts, it allows students to check indicator deflections briefly without exposing high-sensitivity galvanometers or ammeters to sustained current overrides.

What type of wiring connections does it support?

The key features dual universal brass terminal binding posts that securely accept bare hookup wires, spade connectors, or standard 4mm banana plugs.
