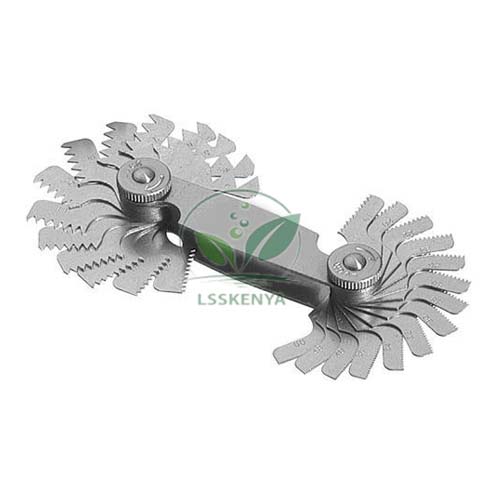

Thread Gauge
Product Code : LSK-MMTM-10603
Thread Gauge (SKU LSK-MMTM-10603) is a hand inspection gauge for checking screw threads during mechanical and machining work. Trainees in fitting, turning and machinist courses use it to confirm that a thread they have cut, or a bolt they have been handed, matches the required form. Science Lab Supplies supplies the gauge from Ambala, India, and it is regularly quoted to polytechnics, ITI centres, engineering colleges, tender contractors and distributors as TVET workshop equipment.
Specifications
The gauge is made from a corrosion-resistant material chosen for long service in a workshop, where it is handled daily and exposed to cutting oil and coolant. It is offered in different specifications to suit the buyer's requirement, so the thread series, pitch range or gauge type is agreed at the enquiry stage.
| Parameter | Value |
|---|---|
| SKU | LSK-MMTM-10603 |
| Type | Thread gauge for checking screw threads |
| Material | Corrosion-resistant |
| Specification | Available in different specifications as per requirement |
| Typical users | Fitting, turning and machining workshops |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Thread Gauge
In a training workshop the gauge is used to identify an unknown thread and to check threads produced on the lathe or with taps and dies. Learners compare the gauge against the thread and look for light between the flanks, which builds the inspection habit expected in fitter and machinist work.
- ITI Fitter trade: identifying and checking threads on fasteners during assembly exercises.
- ITI Turner and Machinist trades: checking screw threads cut on a centre lathe.
- Diploma and B.Tech workshop technology: introducing thread terminology and measurement.
- TVET mechanical modules: inspection of tapped holes and external threads.
Standard Scope of Supply
The Thread Gauge is supplied as a single unit as described above, in the specification agreed on your order. Please state the thread series or pitch range you need when you enquire; any optional accessories or companion gauges are listed on the quotation.
Packing, MOQ and Lead Time
Order a single gauge for a teacher's bench or one per trainee for a whole fitting section; either way the quotation sets out packing, delivery time and price for that quantity. Related workshop tools for technical training institutes can be added to the same document.
With an Importer-Exporter Code, Science Lab Supplies is a registered exporter and can ship to buyers in Iraq, Nigeria, Kenya, Ghana, Ethiopia and Tanzania. Send your specification on the contact page or add the gauge to the enquiry cart; tender buyers can also use the lab tender page.
Frequently Asked Questions
What does a thread gauge check?
It checks screw threads, letting a trainee or inspector confirm that a bolt, stud or tapped hole matches the required thread before parts are assembled.
Which specification will I receive?
The gauge is offered in different specifications as per requirement. State the thread series and pitch range, or send your tender wording, and the quotation will describe the exact gauge offered.
Who supplies the Thread Gauge?
It is supplied by Science Lab Supplies from Ambala, India, to training institutes, colleges, workshop contractors and distributors, usually together with other lathe and fitting-shop items.
Does the gauge resist rust in the workshop?
Yes. It is made from a corrosion-resistant material, which suits workshops where tools meet cutting fluid. Wiping and storing it dry after use still keeps it in good condition.
Related Thread-Cutting and Measuring Tools
A thread gauge is most useful alongside the tools that produce and set up threads. These four items cover cutting a thread on the lathe, setting the tool, and measuring small clearances, so the whole screw-cutting exercise can be equipped from one quotation.
- Threading Tool Holder — carbide insert holder for cutting external threads.
- Center Gauge — sets screw-cutting tools square to the work.
- Center Lathe Machine — the machine on which trainees cut threads.
- Feeler Gauge — measures small gaps and clearances.
