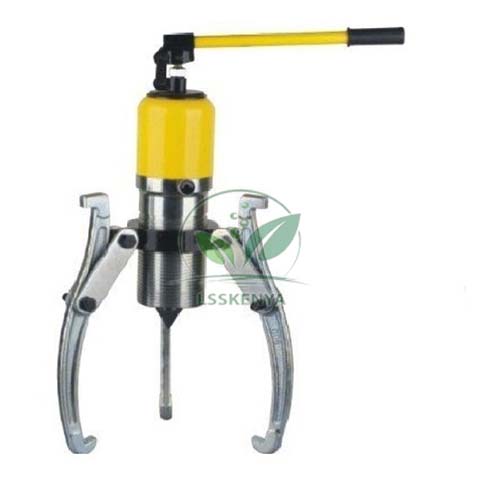

Hydraulic Puller
Product Code : LSK-MMTM-10609
Hydraulic Puller (SKU LSK-MMTM-10609) is a self-contained hydraulic tool for pulling bearings, gears, pulleys and bushes off shafts without hammering. Maintenance, fitting and automotive workshops in ITI centres, polytechnics and TVET institutes use it to teach safe dismantling of machine assemblies. Science Lab Supplies provides the puller from Ambala, India to training institutes, engineering colleges, tender contractors and distributors.
Specifications
Pump and cylinder are built into one unit, so no separate pump or hose is needed, and the pump rotates through 360 degrees for use in the most convenient position. The puller gives 50 mm of stroke, 200 mm spread and 140 mm reach, with an integral safety release valve against overloading and fast spring retraction.
| Parameter | Value |
|---|---|
| SKU | LSK-MMTM-10609 |
| Stroke | 50 mm |
| Spread | 200 mm |
| Reach | 140 mm |
| Pump | Integral, rotates 360 degrees; no separate pump or hose |
| Overload protection | Integral safety release valve |
| Piston rod | Heat treated, hard chrome plated |
| Jaws | Heat-treated forged alloy steel; convertible for 2-arm or 3-arm pulling |
| Retraction | Spring return |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Hydraulic Puller
Trainees use the puller to remove press-fitted bearings, gears and pulleys during maintenance and overhaul practicals. It shows how hydraulic force replaces hammering, protecting shafts and components, and why arm arrangement and centring matter for an even pull.
- ITI Fitter and Mechanic trades: dismantling bearings and gears from shafts.
- ITI Mechanic Motor Vehicle and Diesel trades: removing pulleys and hubs during overhaul.
- TVET maintenance modules: safe use of hydraulic pulling tools.
- Diploma mechanical maintenance labs: comparing 2-arm and 3-arm pulling setups.
Hydraulic pullers exert large forces. Trainees should wear eye protection, keep clear of the line of pull and work under an instructor.
Standard Scope of Supply
The Hydraulic Puller is supplied as one self-contained unit with integral pump and cylinder and forged alloy steel jaws that can be arranged for 2-arm or 3-arm pulling. The specification lists no further accessories; any optional items you request are shown on the quotation.
Packing, MOQ and Lead Time
Quotations are available for one puller or for a set covering several maintenance benches. Each one states packing, delivery time and price for the quantity, and you can include other workshop tools for technical training institutes on the same request.
Science Lab Supplies has an Importer-Exporter Code and, as a registered exporter, can ship to buyers in Uganda, the UAE, Saudi Arabia, Oman, the Philippines and Nepal. Contact us through the contact page, save the puller to your enquiry cart, or read the lab tender page for tender enquiries.
Frequently Asked Questions
What are the stroke, spread and reach of this puller?
The puller has a 50 mm stroke, a 200 mm spread and a 140 mm reach, which define the size of component it can grip and how far it can draw it.
Does it need a separate hydraulic pump?
No. Pump and cylinder are self-contained, so no separate pump or hose is required. The pump also rotates through 360 degrees for convenient operation.
Who supplies the Hydraulic Puller?
It is supplied by Science Lab Supplies from Ambala, India, to training workshops, polytechnics, colleges and contractors buying maintenance equipment for tenders.
Can it be used as a 2-arm and a 3-arm puller?
Yes. It converts easily between 2-arm and 3-arm use; the 3-arm setup gives a more uniform pull on round components.
Related Maintenance and Fitting Tools
Dismantling practice usually leads into measuring and refitting parts. These four items support that sequence in a fitting or maintenance workshop, from checking clearances to machining and clamping replacement parts, and can be quoted with the puller.
- Feeler Gauge — measures clearances when parts are refitted.
- Thread Gauge — checks threads on shafts and fasteners.
- Center Lathe Machine — for turning replacement bushes and shafts.
- Drilling Machine Vice — clamps parts for drilling during repairs.
Browse our complete Metal Manufacturing Training Machine range or all TVET lab equipment.
Last updated: 25 September 2026
