Combination Surface Planer and Thicknesser
Product Code : LSK-WWPT-10720

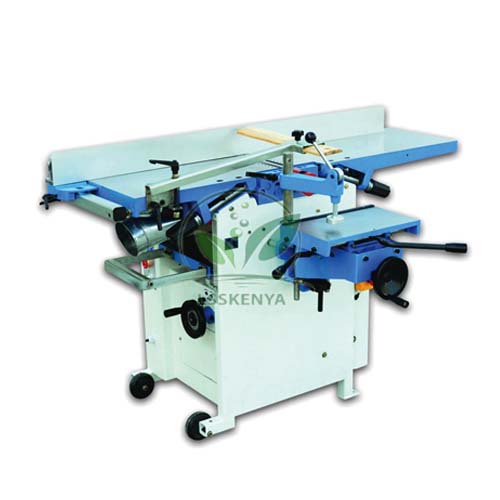

Combination Surface Planer and Thicknesser (SKU LSK-WWPT-10720) is a two-in-one woodworking machine that flattens the face and edge of a board on its surface planer, then brings the board to a uniform thickness on its thicknessing table. Carpentry and joinery workshops in ITI, polytechnic and TVET institutes use it to teach timber preparation. Science Lab Supplies supplies it from Ambala, India to training institutes, colleges, tender contractors and distributors of TVET workshop equipment.
Specifications
The machine combines a 1660 x 410 mm planer table with a 600 x 408 mm thicknessing table, both served by one 70 mm cutter block with three knives running at 5500 rpm. Power feed at 7 m/min, a rubber out-feed roller and a tilting fence complete the set-up.
| Parameter | Value |
|---|---|
| SKU | LSK-WWPT-10720 |
| Motor | 4 kW / 3 hp (as listed) |
| Maximum blade size | 254 mm |
| Maximum planing width | 408 mm |
| Thicknessing height | 3–225 mm |
| Maximum chip removal | Thicknesser 4.5 mm; planer 3 mm |
| Feed speed | 7 m/min |
| Out-feed roller | Rubber, 32 mm diameter |
| Cutter block | 70 mm, 5500 rpm, 3 knives |
| Fence tilt | 45–90° |
| Dust outlet | 120 mm |
| Machine / packing size | 1660 x 870 x 1000 mm / 1670 x 690 x 980 mm |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Planer and Thicknesser
The planer and thicknesser squares and dimensions timber before joints are marked out, so it sits at the start of most carpentry exercises. It suits ITI carpenter and wood-work trades, TVET joinery and furniture-making modules, and polytechnic workshop practice on stationary machines under an instructor.
- Planing one face flat and an edge square to it against the fence.
- Thicknessing a batch of boards to one size for a frame or cabinet exercise.
- Planing bevels with the fence set between 45 and 90 degrees.
- Teaching feed direction, depth of cut and guarding on a rotating cutter block.
The knives turn at high speed: trainees should work under supervision, with guards in place, push blocks for short stock and dust extraction connected.
Standard Scope of Supply
The combination machine is supplied as a single unit with the planer table, thicknessing table, cutter block with three knives, tilting fence and feed roller described above. Any optional accessories, such as spare knives or a dust collector, are listed separately on the quotation.
Packing, MOQ and Lead Time
Quotations can cover one machine or a complete carpentry workshop, and each one states the packing, delivery time and price for the quantity requested. Other vocational training equipment, such as saws, a dust collector or a moisture meter, can be listed on the same quotation.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in the UAE, Saudi Arabia, Oman, the Philippines, Nepal and Bangladesh. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). Enquire through the contact page or enquiry cart, or see the lab tender page.
Frequently Asked Questions
What is the difference between the planer and the thicknesser?
The surface planer flattens one face and one edge on the top table. The thicknesser then feeds the board under the cutter at 7 m/min to make the opposite face parallel, at any height from 3 to 225 mm.
Who supplies the Combination Surface Planer and Thicknesser?
Science Lab Supplies supplies it from Ambala, India, to ITI, polytechnic and TVET buyers, tender contractors and distributors, and quotes it together with other workshop machines.
Can the machine be quoted for a workshop tender?
Yes. Send the quantity, delivery location and tender specification through the contact page, and the quotation will list the machine against the specification above.
