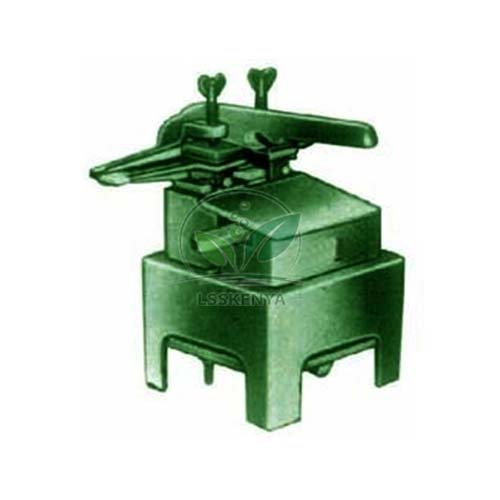

Band Saw Brazing Machine
Product Code : LSK-WWPT-10723
Band Saw Brazing Machine (SKU LSK-WWPT-10723) joins the two ends of a band saw blade into a continuous loop, so broken blades can be repaired and new blades made up from coil stock in the workshop. Saw maintenance sections of ITI carpentry, TVET wood-machining and polytechnic workshops use it. Science Lab Supplies supplies the machine from Ambala, India to training institutes, workshops, tender contractors and distributors.
Specifications
This is a bench machine for brazing band saw blades from 3 mm to 30 mm wide. It is rated at 3 kVA and runs on a 220 V AC single-phase, 50 Hz supply, with its own switch, so it can be installed in an ordinary workshop without a three-phase connection.
| Parameter | Value |
|---|---|
| SKU | LSK-WWPT-10723 |
| Purpose | Brazing the ends of band saw blades |
| Blade width capacity | 3–30 mm |
| Rating | 3 kVA |
| Power supply | 220 V AC, single phase, 50 Hz |
| Control | With switch |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Band Saw Brazing Machine
The brazing machine is used wherever band saws run in a training workshop. Trainees learn to cut blade stock to length, prepare the scarf joint, braze the ends and dress the joint, a standard saw-doctoring task in ITI carpentry and wood-machining trades and in TVET maintenance modules.
- Repairing broken band saw blades instead of replacing them.
- Making up blades of the required length from coil stock, 3 to 30 mm wide.
- Teaching joint preparation, brazing and finishing of saw blades.
- Supporting routine maintenance in institute and production wood workshops.
The joint becomes very hot during brazing and the machine is mains powered; trainees should wear eye and hand protection and work under supervision.
Standard Scope of Supply
The Band Saw Brazing Machine is supplied as a single unit with its switch, as described above. Brazing consumables and blade stock are separate items; state the blade widths you use and any optional accessories will be listed on the quotation.
Packing, MOQ and Lead Time
You can request a price for one brazing machine or for several saw maintenance stations. Each quotation lists packing, delivery time and price for the quantity you ask for, and band saws or other TVET workshop equipment can go on the same quotation.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in the Philippines, Nepal, Bangladesh, Zambia, Rwanda and South Africa. Contact us via the contact page or enquiry cart; tender buyers can also see the lab tender page.
Frequently Asked Questions
What blade widths can be brazed?
Band saw blades from 3 mm to 30 mm wide, which covers narrow blades for curve cutting as well as wider blades for straight ripping on most workshop band saws.
What power supply does the machine need?
It is rated 3 kVA and runs on 220 V AC single phase at 50 Hz, so an ordinary workshop socket circuit rated for that load is sufficient.
Who supplies the Band Saw Brazing Machine?
Science Lab Supplies supplies it from Ambala, India, to ITIs, polytechnics, TVET centres, tender contractors and distributors, together with band saws and other wood workshop machines.
Can it be quoted with a band saw?
Yes. Add the band saw model and the brazing machine to the enquiry cart or send the list through the contact page, and both will appear on one quotation.
Related Band Saw Equipment
A brazing machine is only useful next to the saws whose blades it joins. These four items make up a band saw corner in a training workshop: two saws that use continuous blades, a sander for dressing work, and extraction to keep the area clean.
- Band Saw Machine — vertical band saw for curves and resawing.
- Horizontal Band Saw Machine — horizontal cutting with a continuous blade.
- Belt Sander — belt finishing of metal and other materials.
- Universal Dust Collector — extraction for band saws.
Browse the full Wood Workshop Portable Tool range or all TVET lab equipment.
