Disc Sander
Product Code : LSK-WWM-10641

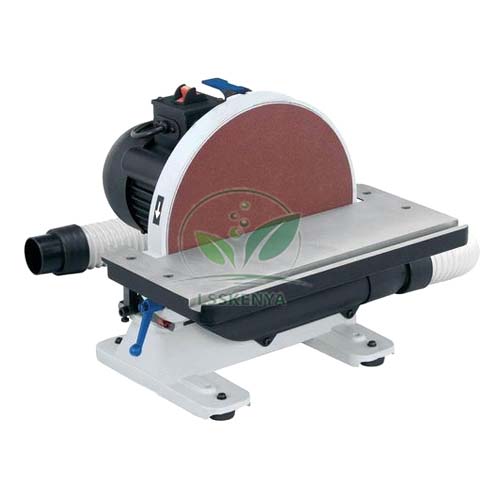

Disc Sander (SKU LSK-WWM-10641) is a bench machine that uses a 12 in abrasive disc to square ends, sand bevels and true outside curves on wooden parts. A 1 HP motor and cast iron base give steady all-day running in ITI, polytechnic and TVET carpentry workshops. Science Lab Supplies supplies it from Ambala, India to training institutes, tender contractors and distributors.
Specifications
The totally enclosed fan-cooled (TEFC) motor is rated 1 HP, 110 V single phase, 10 A, and turns the disc at 1725 RPM. Work rests on a 17-1/4 x 8-1/4 in cast aluminium table that tilts from 0 to 45 degrees, with a mitre gauge for angled work and a 2 in dust port built into the base.
| Parameter | Value |
|---|---|
| SKU | LSK-WWM-10641 |
| Motor | 1 HP, 110 V, single phase, 10 A, TEFC |
| Disc speed | 1725 RPM |
| Abrasive disc | Accepts 12 in (305 mm) PSA discs |
| Table | Cast aluminium, 17-1/4 x 8-1/4 in (438 x 210 mm), tilts 0 to 45 degrees |
| Base | Cast iron with built-in dust port, non-slip rubber feet |
| Dust port | 2 in (51 mm) |
| Other features | Mitre gauge, safety toggle on/off switch, compact and portable |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Disc Sander
Trainees use the sander to bring sawn parts exactly to a line, square end grain, sand chamfers on the tilted table and fit mitres using the gauge. Its large disc suits end-grain and edge work in carpentry, furniture and pattern-making courses at ITI, TVET and polytechnic level.
- ITI Carpenter trade: squaring and trimming components to size.
- TVET joinery modules: sanding bevels and mitres with the gauge.
- Pattern-making and design courses: shaping convex profiles.
Sand only on the side of the disc moving down toward the table, keep fingers clear, and connect dust extraction to the 2 in port.
Standard Scope of Supply
The Disc Sander is supplied as a single unit as described above, with its tilting table and mitre gauge; any optional accessories and 12 in PSA abrasive discs are listed on the quotation. The motor is listed at 110 V, so state your mains voltage when enquiring.
Packing, MOQ and Lead Time
A quotation can cover one machine or a set for a larger workshop. It gives the packing, delivery time and price for the quantity requested, and abrasive discs, a dust collector or other vocational training equipment can be added to the same quotation.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Qatar, Sri Lanka, Vietnam, Malaysia, Peru and Egypt. Enquire via the contact page or enquiry cart; see also the lab tender page.
Frequently Asked Questions
What size abrasive disc does it take?
It accepts 12 in (305 mm) PSA (pressure-sensitive adhesive) discs, which stick directly onto the metal disc plate.
Can it sand angles?
Yes. The cast aluminium table tilts from 0 to 45 degrees and a mitre gauge is included for angled work.
How is it different from the Disc Sander Belt?
This model has a larger 12 in disc and a 1 HP motor but no belt. The Disc Sander Belt combines a 6 in disc with a 4 x 36 in belt.
Who supplies the Disc Sander?
Science Lab Supplies supplies it from Ambala, India to ITI and TVET institutes, colleges, tender contractors and distributors of TVET workshop equipment.
Related Sanding Machines
These four items complete a sanding area around the disc sander: a combined belt and disc machine for curves, a drum sander for wide boards, an orbital sander for faces and a dust collector for the 2 in port.
- Disc Sander Belt — belt for inside curves plus a 6 in disc.
- Portable Drum Sander — sands wide panels flat.
- Orbital Sander Machine — finishes flat faces.
- Universal Dust Collector — extraction for sanding dust.
Browse the full Woodworking Workshop Machines range or all TVET lab equipment.
