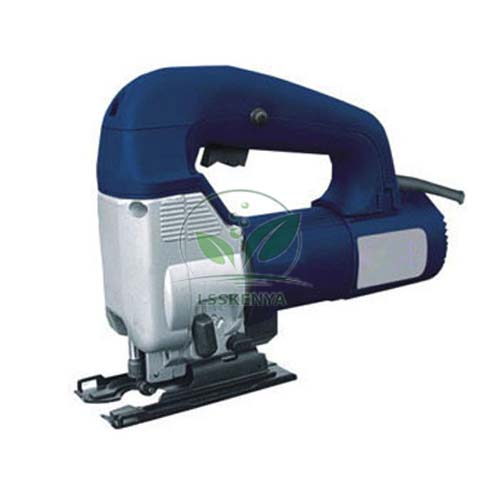

Portable Jig Saw Machine
Product Code : LSK-WWM-10640
Portable Jig Saw Machine (SKU LSK-WWM-10640) is a light, hand-held 580 W jigsaw whose narrow reciprocating blade cuts curves, circles and cut-outs in board and timber up to 65 mm thick. Carpentry, furniture and interior-fitting classes in ITI, polytechnic and TVET institutes use it for shaped work at the bench or on site. Science Lab Supplies supplies it from Ambala, India to institutes, tender contractors and distributors.
Specifications
The tool runs on 220 V with a rated input of 580 W and a variable no-load speed of 500 to 3000 r/min, letting trainees slow down for tight curves or harder material. Its cutting capacity is 65 mm, and it is guided by hand along the marked line.
| Parameter | Value |
|---|---|
| SKU | LSK-WWM-10640 |
| Type | Portable (hand-held) jig saw |
| Cutting capacity | 65 mm |
| No-load speed | 500 to 3000 r/min |
| Rated input power | 580 W |
| Rated voltage | 220 V |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Portable Jig Saw
Trainees use this tool to cut sink and socket openings, curved shelf ends, templates and scribed fits, learning speed selection, blade choice and steady feed. Because it is carried to the job, it suits fitting-out exercises as well as bench work in carpentry and interior trades.
- ITI Carpenter trade: curved and internal cuts in plywood and board.
- TVET interior-fitting modules: cut-outs for sinks, sockets and fittings.
- Polytechnic furniture and design courses: templates and shaped parts.
Clamp the work, keep the base plate flat on the surface, wear eye protection and switch off before changing blades.
Standard Scope of Supply
The Portable Jig Saw Machine is supplied as a single unit as described above; any optional accessories, blade assortments or carry cases are listed on the quotation.
Packing, MOQ and Lead Time
You can ask for one jigsaw or for a class set, and the quotation will state packing, delivery time and price for that number. Blades and other ITI trade tools can be included in the same quotation to simplify purchasing.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in South Africa, Qatar, Sri Lanka, Vietnam, Malaysia and Peru. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). Enquire via the contact page or enquiry cart; see also the lab tender page.
Frequently Asked Questions
How is this different from the stationary jig saw?
This is a hand-held 580 W tool that goes to the work. The stationary Jig Saw Machine weighs about 60 kg and the work is fed across its table.
How thick a board can it cut?
The listed cutting capacity is 65 mm. Thinner stock and tight curves are easier at the lower end of the 500 to 3000 r/min range.
What supply does it need?
It is rated for 220 V with a 580 W input.
Who supplies the Portable Jig Saw Machine?
Science Lab Supplies supplies it from Ambala, India to ITI and TVET institutes, colleges, tender contractors and distributors of TVET workshop equipment.
Related Portable Power Tools
These four tools pair naturally with a jigsaw: a bench jig saw for fine scroll work, a drill for entry holes, a circular saw for long straight cuts and a router for finishing edges. All can be quoted together.
- Jig Saw Machine — stationary saw with a 12 x 12 in table.
- Power Hand Drill — drills entry holes for cut-outs.
- Portable Circular Saw — long straight cuts in sheet.
- Electric Router — profiles and trims cut edges.
