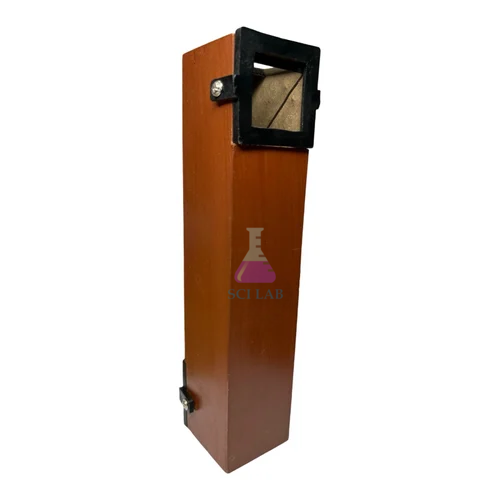

Wooden Periscope for Geometric Optics

Product Code : SCL-LAO-12080

The Wooden Periscope is an optical demonstration instrument used for teaching the principles of light reflection and line-of-sight propagation. Designed for science educators and early learners, this durable model allows students to visualize light ray paths through dual plane mirrors, making geometric optics highly accessible.

Product Description

This instructional apparatus features a sturdy, polished hardwood chassis built to endure the energetic environment of elementary and middle school classrooms. It houses two highly reflective polymer mirrors aligned precisely at parallel 45-degree angles. The enclosed structural design shields the optical path from ambient distortion, allowing students to observe objects over obstacles clearly.

For institutions enriching their inventory of primary, this periscope delivers exceptional didactic utility. It transforms abstract physics concepts into concrete visual experiences, facilitating the verification of basic ray behaviors. Integrating this model into structured laboratory group exercises ensures a solid grounding in spatial tracking and classical optics.

Key Features

• Premium Hardwood Construction: Fabricated from sustainably sourced, polished wood to resist impact damage and physical wear.
• Shatterproof Acrylic Mirrors: Utilizes high-reflectivity polymer surfaces to guarantee complete student safety during handling.
• Fixed 45-Degree Alignment: Internal mirror brackets are set precisely to ensure a true, uncompromised 90-degree light deviation.
• Lightweight Modular Frame: Ergonomically proportioned for young learners to grasp, carry, and manipulate with ease.
• Removable Access Panels: Designed with sliding slots for easy interior observation, mirror alignment checks, and cleaning.

Technical Specifications

What's Included in the Kit

• 1 x Wooden Periscope structural main assembly
• 2 x Pre-installed shatterproof acrylic plane mirrors
• 1 x Illustrated student activity guide with ray tracing exercises

Applications / Uses

• Demonstrating the fundamental law of reflection where the path satisfies the geometric relation

• Investigating line-of-sight extension and sub-surface viewing parameters in introductory wave mechanics.
• Serving as an interactive standalone building module inside elementary STEM education kits.
• Enriching geometric symmetry activities in multi-concept physics and math workshops.

How to Use the Wooden Periscope

1. Hold the wooden periscope vertically using both hands, ensuring the upper optical aperture faces away from you.
2. Position your eye directly in front of the lower viewing aperture window.
3. Direct the upper window towards an object positioned behind a barrier or out of your direct line of sight.
4. Observe the reflected virtual image forming clearly on the lower mirror surface.
5. Trace the internal light ray path manually on paper to chart the step-by-step 90-degree turning transitions.

Handling Note: Do not insert sharp pencils or metallic pointer tools through the open apertures to avoid scratching the internal polymer mirrors.

Care & Maintenance

• Cleaning: Wipe the outer wood chassis with a dry microfiber cloth; clean the acrylic mirrors gently with an anti-static lens wipe.
• Storage: Keep the model in a dry cabinet away from areas of high localized humidity to avoid structural wood expansion.
• Handling: Always store the unit upright or flat in its designated compartment to shield the interior mirrors from dust settling.

Why Choose Science Lab Supplies

Science Lab Supplies is an established manufacturer and premium international exporter of high-grade laboratory instruments and didactic setups. With decades of continuous engineering experience, we construct classroom-resilient tools that combine natural materials with precise technical layouts. Our production facilities maintain rigorous quality audits to ensure that every apparatus provides predictable, durable performance out of the box. Through our highly efficient global supply networks, we reliably fulfill institutional demands across the globe.

Frequently Asked Questions

How does a periscope allow you to see over walls?

The instrument uses two parallel plane mirrors fixed at 45-degree angles. Light waves strike the top mirror, bounce downwards at a 90-degree turn, and hit the bottom mirror, which redirects the rays directly into the observer's eye.

Are the internal mirrors prone to breaking if dropped?

No, the mirrors are manufactured from vacuum-metallized optical acrylic rather than traditional silicate glass, making them entirely shatterproof and student-safe.

Can this periscope be disassembled by students?

The main body features fixed joinery to maintain perfect optical alignment, but it includes integrated sliding panels for safe interior inspection.

What age group is this optical model designed for?

This model is optimized for elementary and middle school students participating in early science, physics, and STEM engineering curriculums.

Does the wooden chassis require specialized treatment?

The hardwood frame arrives sealed with a smooth protective coating that resists moisture and oils, requiring only periodic dusting with a dry cloth.
