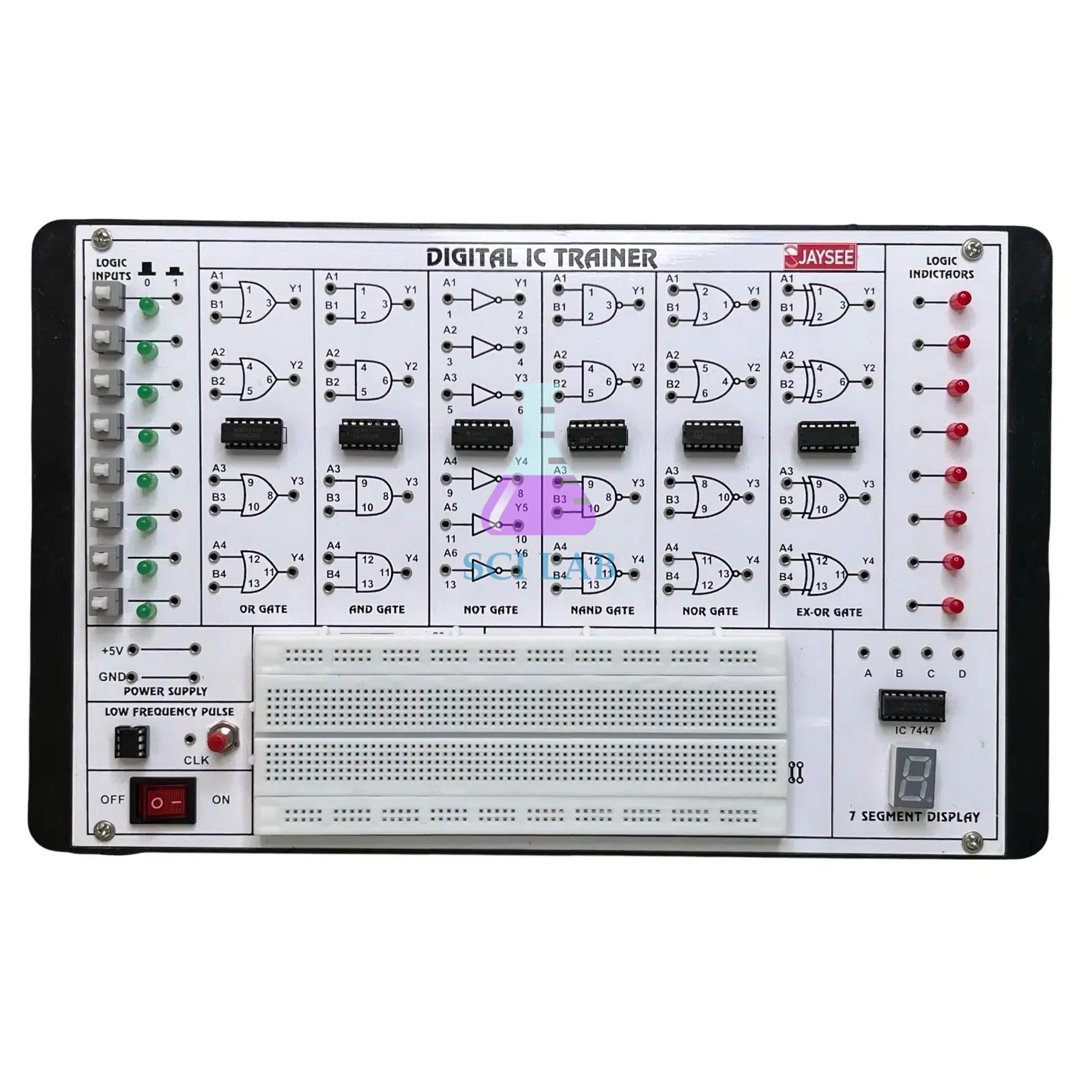

Digital IC Trainer with Digital Voltmeter

Product Code : SCL-EAE-12038

The Digital IC Trainer with Digital Voltmeter is a self-contained digital electronics laboratory workstation used for prototyping, testing, and measuring integrated circuits in educational environments. Designed for engineering students and technical educators, this trainer provides an interactive platform to construct digital logic circuits while directly monitoring voltage levels.

Product Description

The Digital IC Trainer with Digital Voltmeter by Science Lab Supplies consolidates multiple essential digital tools into a single, cohesive workstation. The system features a regulated, short-circuit-protected DC power supply, a variable clock pulse generator, a logic level input switch array, logic indicators, and an integrated high-precision 3.5-digit digital voltmeter module. Encased in a durable, powder-coated steel chassis with impact-resistant side treatments, this device ensures long-lasting operation under frequent student use.

The system utilizes a high-quality glass epoxy printed circuit board (PCB) panel that displays transparent block labeling for all internal modules. The central prototyping workspace houses a large solderless breadboard block, allowing users to readily insert and interconnect standard Transistor-Transistor Logic (TTL) or Complementary Metal-Oxide-Semiconductor (CMOS) ICs. This design simplifies classroom instruction by removing the mess of loose individual bench instruments and patch panels.

Key Features

• Integrated Digital Voltmeter: Built-in 3.5-digit DC voltmeter provides instant, highly accurate voltage readouts across test nodes.
• Regulated DC Power Supply: Delivers stable, ripple-free +5V and $\pm$12V DC outputs with active overcurrent protection.
• Solderless Prototyping Canvas: Premium breadboard zone with 1660 tie-points easily accommodates multiple IC packages and passive components.
• Variable Clock Pulse Generator: Generates discrete monostable (pulser) and astable clock frequencies for sequential logic evaluation.
• Logic Level Switches & Indicators: Outfitted with 10 binary input toggle switches and 10 buffered LED state monitors.
• Rugged Metal Construction: Housed in a ventilated steel enclosure engineered specifically to survive intensive institutional use.

Technical Specifications

What's Included in the Kit

• 1 x Digital IC Trainer with Digital Voltmeter core workstation panel
• 1 x Comprehensive bundle of solid-core 22 AWG pre-cut jumper wires
• 1 x Grounded 3-pin AC mains power cable
• 1 x English user manual detailing logic circuit layouts and laboratory experiments

Applications / Uses

• Combinational Logic Verification: Ideal for validating truth tables for foundational logic gates (AND, OR, NOT, NAND, NOR, XOR).
• Sequential Logic Experiments: Used to test and troubleshoot complex counter arrays, shift registers, and JK/D flip-flops.
• Voltage Drop Analysis: Allows students to quantify real propagation delay effects and voltage losses using the onboard digital voltmeter module.
• Institutional Academic Science Kits: Serves as a primary hardware platform within customized higher-education science kits.
• STEM Laboratory Labs: Provides a robust environment for interactive embedded system validation alongside foundational STEM models & kits.

How to Use the Digital IC Trainer with Digital Voltmeter

1. Position the electronics workstation flat on a dry, non-conductive laboratory bench.
2. Ensure the primary AC power toggle switch on the rear interface is set to the OFF position before placing any integrated circuits.
3. Insert the digital logic IC into the solderless breadboard center trench and distribute power rails from the fixed +5V and Ground sockets using standard 22 AWG jumper wires.
4. Link your specific IC logic inputs to the trainer's binary toggle switches and route the logic outputs to the LED indicator array.
5. Plug the AC cord into a grounded electrical outlet, flip the main power switch ON, and use the integrated voltmeter probe to check node potentials to ensure proper logic operations.

Handling Note: Always power down the trainer unit completely prior to removing components or altering breadboard jumper configurations to safeguard the sensitive internal microcontroller gates from localized static or current surges.

Care & Maintenance

• Breadboard Preservation: Use only 22–26 AWG solid copper wire leads. Do not force thick test leads or deformed pins into the tie-points to maintain spring clip tension.
• Voltmeter Calibrations: Avoid applying voltages higher than 20V DC to the dedicated voltmeter input terminals to protect the internal analog-to-digital converter (ADC) chip.
• Safe Storage: Keep the device inside a dry, clean cabinet free of corrosive moisture, chemical vapors, or excessive operational temperatures.

Why Choose Science Lab Supplies

Science Lab Supplies is an internationally recognized manufacturer and exporter of highly precise scientific laboratory instruments, educational trainers, and institutional school equipment. Operating under strict ISO 9001:2015 quality control processes, we guarantee that every digital trainer provides stable electrical regulation and structural accuracy. We support global educational institutions with comprehensive inventory solutions, including secondary school mathematics kits, specialized physics trainers, and advanced engineering lab experiment setups. Our global supply networks ensure reliable, damage-free international shipping to institutional clients worldwide.

Frequently Asked Questions

• Can I use this trainer for both TTL and CMOS integrated circuits?

Yes, the trainer features a regulated +5V DC source designed for standard TTL logic circuits, while the variable power rails safely support higher-voltage CMOS IC families.

• What is the maximum input voltage the integrated digital voltmeter can read?

The built-in 3.5-digit digital voltmeter module is optimized to read DC voltages safely within a 0 to 20V scale.

• Does this digital IC trainer incorporate short-circuit protection?

Yes, the integrated power rails feature active thermal cutoffs and current limiters that temporarily shut down supply nodes during grounding faults.

• Are jumper wires included with the workstation kit?

Yes, each trainer comes complete with a starter pack of single-strand, pre-cut 22 AWG solid copper jumper wires ideal for solderless breadboarding.

• What type of clock signals does the onboard generator produce?

The built-in generator produces high-purity TTL-compatible square wave outputs, adjustable continuously across both low-frequency pulser and high-frequency astable clock ranges.
