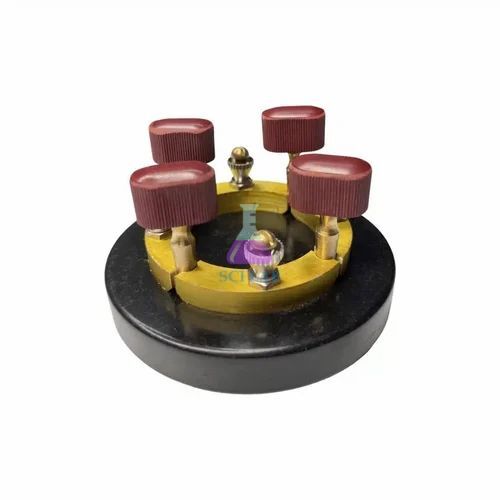

Brass Four Way Plug Key

Product Code : SCL-EAE-12120

The Brass Four Way Plug Key is a manually operated laboratory switch used for controlling, routing, and reversing current direction in electrical circuits across physics laboratories. Designed for science educators, students, and technicians, this apparatus features high conductivity to enable seamless switching between multiple network pathways without physical rewiring.

Product Description

The Brass Four Way Plug Key from Science Lab Supplies is constructed with heavy-gauge, solid brass blocks arranged in a precision circular matrix. These thick blocks are mounted securely onto a heavy-duty, high-insulation bakelite base plate to eliminate stray grounding or current leakage during tabletop operations. The matching brass plugs and corresponding receptacle lugs are thoroughly interlapped, establishing a perfect mechanical lock and low-resistance contact interface when engaged.

This versatile switching component is a vital didactic tool for exploring advanced electromagnetism, circuit topologies, and calibration networks. By inserting or extracting the insulated brass plugs, users can immediately change the polarity of an external circuit branch or isolate a connected meter. It serves as an essential, high-durability instrument that enhances the efficiency of structural setups within modern inventories worldwide.

Key Features

• Solid Brass Block Design: Features thick, high-purity brass blocks that ensure optimum electrical conductivity and low structural resistance.
• Heavy Bakelite Insulation Base: Mounted on a robust, non-conductive plate that isolates electrical current from workbenches.
• Interlapped Contact Locking: Precision-ground plugs and lugs guarantee zero mechanical play and maximize surface area contact.
• Insulated Plug Handles: Equipped with knurled ebonite or high-impact plastic handles for safe handling during active demonstrations.
• Four-Way Commutator Routing: Circular segment spacing permits multi-directional path switching and current reversal.
• Robust Terminal Blocks: Outfitted with four heavy binding posts that secure bare hookup wire or standard testing leads.

Technical Specifications

What's Included in the Kit

• 1 x Brass Four Way Plug Key base assembly with binding posts
• 2 x Precision-machined brass plugs with non-conductive handles
• 1 x Schematic diagram sheet showing current routing options

Applications / Uses

• Reversing electrical current parameters inside tangent galvanometers and deflection magnetometers to remove orientation bias.
• Functioning as a multi-path manual router within complex electrical instruments configurations.
• Demonstrating the mechanics of electrical switching, network balancing, and bridge isolation.
• Serving as a heavy-duty master switch option in modular classroom science kits.
• Configuring alternative path tests during advanced Ohm's Law and Wheatstone bridge verification labs.

How to Use the Brass Four Way Plug Key

1. Mount into Circuit: Wire the four terminal binding posts into your low-voltage DC layout using appropriate connecting leads.
2. Cross-Wire for Commutation: Connect diagonal terminals if using the plug key as a current-reversing switch.
3. Insert Plugs to Close Path: Push the clean brass plugs firmly into the circular gaps between the blocks, twisting slightly to lock them into position.
4. Route the Current: Change the configuration by moving the plugs to adjacent slots, altering the internal current flow dynamically.
5. Break the Connection: Extract the plugs completely from the base to interrupt the circuit branch immediately.

Safety Handling Note: Always ensure your primary power supply is turned off before completely changing external terminal wiring, and never exceed the maximum 5 Ampere current threshold.

Care & Maintenance

• Keep Blocks Oxidization-Free: Wipe the exposed brass surfaces regularly with a dry cloth or clean with a pencil eraser to dissolve residual tarnish.
• Store in Dry Drawers: Store the key inside a low-humidity cabinet alongside compatible laboratory instruments to optimize structural lifespan.
• Prevent Mismatching: Keep the original plugs paired with their corresponding base assembly to preserve the precision interlapped contact quality.

Why Choose Science Lab Supplies

Science Lab Supplies is a premier manufacturer and global exporter of high-precision scientific instruments, educational models, and vocational training aids. Drawing upon decades of specialized manufacturing experience, our production lines follow strict tolerance guidelines and material verification processes. We cater to university departments, schools, and institutional distributors worldwide, providing uniform product parameters, robust build qualities, and optimized logistical execution for scalable global deliveries.

Frequently Asked Questions

What is the primary advantage of a Brass Four Way Plug Key?

The primary advantage is its ability to route current in multiple directions or reverse circuit polarity manually without requiring the user to physically detach and swap input lead wires.

Can this plug key switch handle regular 220V household mains electricity?

No, this device is engineered explicitly for low-voltage educational demonstrations up to 24V DC/AC and should never be wired to high-voltage mains power sources.

Why do the plugs and blocks require an interlapped finish?

The interlapped manufacturing finish ensures that the tapered brass plugs fit perfectly inside the block gaps, maximizing electrical surface contact and keeping contact resistance to a minimum.

How do I use this product as a current-reversing commutator?

By wiring your power input to one pair of opposing blocks and cross-connecting the remaining slots, moving two plugs diagonally will reverse the output current vector.

What should I do if the plugs feel loose inside the gaps?

Inspect the slots for dust or oxide film accumulation. Gently clean the tapered contact surfaces with a dry lint-free microfiber cloth to restore clean surface locking.
