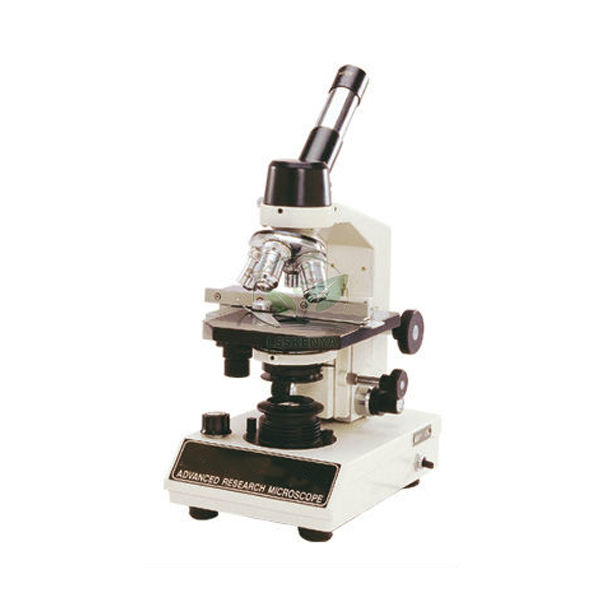

Monocular Research Microscopes
Product Code : LSK-M-11365
Monocular Research Microscopes (SKU LSK-M-11365) are compound microscopes with a 45° monocular head that rotates through 360°, four achromatic objectives up to 100X oil immersion and a built-in graduated mechanical stage. They suit senior school, college and university biology laboratories. Science Lab Supplies arranges supply from Ambala, India for schools, colleges, distributors and buyers working to a tender list.
Specifications
Each specification of the monocular research model appears in the table below. In short, it combines achromatic 4X, 10X, 40X SL and 100X SL oil objectives on a click-stop quadruple nosepiece, a 135 x 120 mm stage with low coaxial drives, and a 6V-20W halogen lamp backed by a daylight mirror.
| Specification | Value |
|---|---|
| SKU | LSK-M-11365 |
| Observation head | Monocular, inclined at 45°, rotatable through 360° |
| Eyepieces | Wide field WF 10X and H5X, H6X or H15X (any two pairs) |
| Objectives | Achromatic 4X, 10X, 40X SL, 100X SL oil immersion |
| Magnification range | 20x (4X with H5X) to 1500x (100X with H15X), by eyepiece chosen |
| Nosepiece | Quadruple, accurate centering, positive click stops |
| Stage | Built-in graduated mechanical stage, 135 x 120 mm |
| Stage controls | Low coaxial drive controls for smooth slide scanning |
| Illumination | 6V-20W halogen lamp |
| Mains supply | 220/110 V |
| Daylight option | Mirror attachment |
| Accessories | Vinyl cover, duster, cleaning brush, filter, immersion oil, operating manual |
| Packing | Full-mould Styrofoam box |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Monocular Research Microscopes
The microscope covers the whole range of routine slide work, from scanning a section at low power to oil-immersion study of bacteria. Because the head rotates through 360°, it can be turned to face the observer or a second student. The mirror attachment allows work by daylight when the lamp cannot be used.
- Class 11–12 biology (NCERT): cell structure, stomata, and stages of mitosis in onion root tip.
- B.Sc. botany and zoology: stained sections mounted under Glass Cover Slips, with staining done in a Coplin Jar Staining.
- Microbiology practicals: bacteria and yeast viewed with the 100X SL oil objective.
- A student microscope for laboratories that prefer a monocular head over a binocular one.
Standard Scope of Supply
Each microscope arrives in a full-mould Styrofoam box with its monocular head, four achromatic objectives on the quadruple nosepiece, two eyepiece options, the graduated mechanical stage, the halogen lamp and mirror attachment, plus a vinyl cover, duster, cleaning brush, filter, immersion oil and an operating manual.
Packing, MOQ and Lead Time
Laboratories looking for lab equipment for research in India can request a price for one microscope or for a batch to equip a whole practical class. The quotation from Science Lab Supplies details packing, delivery time and price for that quantity, and prepared slides or cover slips can be priced on the same document.
As a holder of an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Rwanda, South Africa, Qatar, Sri Lanka, Vietnam and Malaysia. Questions can go through the contact page, items can be collected in the enquiry cart, and institutional bids are explained on the lab tender page.
Frequently Asked Questions
Which eyepieces come with the Monocular Research Microscopes?
The wide field WF 10X is offered with H5X, H6X or H15X, and any two pairs can be chosen. State your preferred combination when you ask for a quotation so the correct eyepieces are packed.
Can it be used without mains power?
Yes, for basic work. A mirror attachment lets the microscope use daylight, while the 6V-20W halogen lamp runs on a 220 or 110 V supply when mains power is available.
What accessories are packed with each microscope?
Each one is packed with a vinyl cover, duster, cleaning brush, filter, immersion oil for the 100X SL objective and an operating manual, all inside a full-mould Styrofoam box.
Who supplies the Monocular Research Microscopes?
Science Lab Supplies handles this model from its Ambala office in India, preparing quotations for schools, colleges and distributors. The quotation confirms the eyepiece pairs chosen, the packing and the dispatch arrangements before the order is placed.
