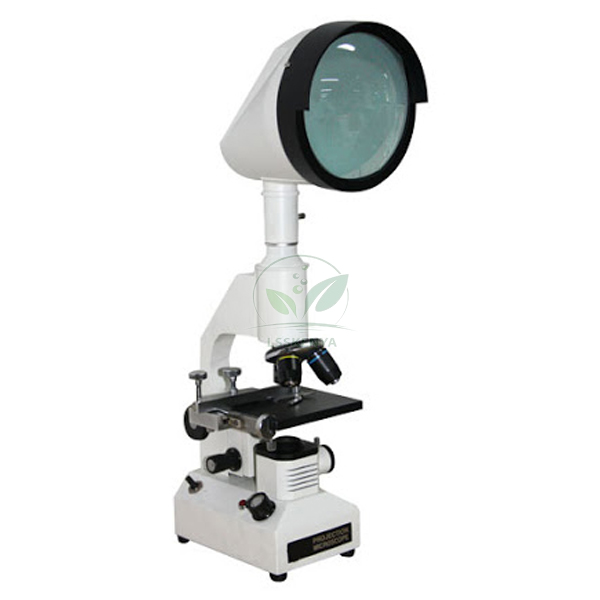

Student Doom Projection Microscope
Product Code : LSK-M-11358
Student Doom Projection Microscope (SKU LSK-M-11358) is a monocular microscope that projects the magnified image onto a 150 mm round ground glass screen, so a group of students can view a specimen together with the naked eye. It has achromatic 5x, 10x and 45x objectives, 20 W halogen lighting and a mechanical stage, and suits school and college biology demonstrations. Science Lab Supplies can deliver it from Ambala, India to schools, colleges, contractors and distributors.
Specifications
Every part of the projection microscope is listed in the table. In short, it is a compact unit with a fixed straight tube, triple nosepiece, built-in 220/110 V transformer feeding a dimmable halogen lamp, an NA 0.65 condenser, a vernier-scaled mechanical stage and a projection screen that turns through 360° on the tube.
| Specification | Value |
|---|---|
| SKU | LSK-M-11358 |
| Body | Monocular fixed straight tube |
| Mechanical tube length | 160 mm |
| Nosepiece | Triple revolving, positive centering and click stops |
| Lamp | 20 W halogen bulb |
| Light control | Solid-state variable intensity knob with ON/OFF switch |
| Cooling | Lamp slots for natural cooling of the illuminator |
| Power | Transformer built into the base, 220 V / 110 V |
| Condenser | Fixed built-in lamp condenser, NA 0.65 |
| Stage | Mechanical stage, 135 x 120 mm |
| Stage controls | Low co-axial X-Y drive |
| Cross movement | 50 x 75 mm with fully graduated vernier scale |
| Focusing | Coarse by rack and pinion, fine by screw-lever mechanism |
| Safety device | Upper stopper to prevent slide damage |
| Eyepieces | Huygenian 10x and 15x |
| Objectives | Achromatic 5x, 10x and 45x SL |
| Projection screen | Round ground glass, 150 mm diameter, rotates 360° on the tube |
| Accessories | Vinyl cover, duster, cleaning brush and spare bulb |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Projection Microscope
Instead of one student at an eyepiece, this projection microscope lets a small group see the same specimen on its glass screen. A teacher can point to structures while everyone watches, then switch to the eyepiece for close work, which makes it useful for demonstrations, revision and introducing new slides.
- Class 8–12 biology demonstrations: protozoa on the Amoeba Laboratory Prepared Slide, discussed alongside the Paramecium Educational Chart.
- Group study of simple animals such as the Hydra Specimen Prepared Slide.
- College practicals where a lecturer projects a tissue section before students view their own slides.
Switch the lamp off and allow it to cool before changing the halogen bulb; a spare bulb is included.
Standard Scope of Supply
Supplied as the microscope with its triple nosepiece, achromatic 5x, 10x and 45x SL objectives, Huygenian 10x and 15x eyepieces, built-in halogen illuminator and transformer, mechanical stage and 150 mm projection screen, together with a vinyl cover, duster, cleaning brush and a spare bulb.
Packing, MOQ and Lead Time
A quotation can be raised for one projection microscope for a demonstration bench or several for a school group. It shows packing, delivery time and price for the quantity, and prepared slides or student microscopes can be added so the whole order for school laboratory equipment is priced together.
Science Lab Supplies holds an Importer-Exporter Code and can ship to buyers in the UAE, Saudi Arabia, Oman, the Philippines, Nepal and Bangladesh. Begin with the contact page, use the enquiry cart for a list of items, or refer to the lab tender page for tender purchases.
Frequently Asked Questions
How does the projection screen work?
The magnified image is projected onto a 150 mm diameter round ground glass screen fitted on the microscope tube. The screen can be rotated through 360°, so students around the bench can see the specimen without using the eyepiece.
What power supply does it need?
The transformer is built into the base and operates on 220 V or 110 V. It powers a 20 W halogen bulb, whose brightness is set with a solid-state variable control knob next to the ON/OFF switch.
Which objectives and eyepieces are fitted?
It carries achromatic 5x, 10x and 45x SL objectives on a triple revolving nosepiece with click stops, used with Huygenian 10x and 15x eyepieces for viewing at the eyepiece or on the screen.
Who supplies the Student Doom Projection Microscope?
Based in Ambala, India, Science Lab Supplies can price the projection microscope together with prepared slides, charts and other microscopes for schools, colleges and distributors in a single document.
