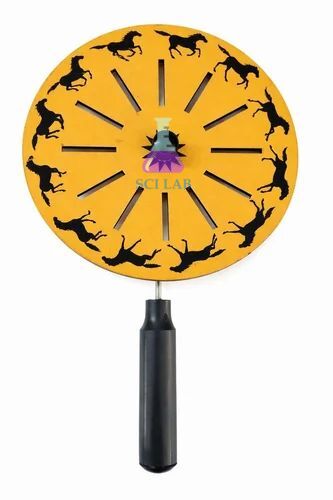

Phenakistoscope Model Demonstrate

Product Code : SCL-LAO-12069

The Phenakistoscope Demonstration Model is a precision-engineered optical didactic tool used for demonstrating the stroboscopic effect and the physiological principles behind the human persistence of vision. Designed specifically for physics educators, this robust model assists student groups in discovering how isolated static frames transform into continuous fluid motion.

Product Description

This high-fidelity demonstration apparatus features a center-mounted rotating spindle secured onto a rigid steel frame. The manual rotation assembly utilizes dual-shielded ball bearings to guarantee an ultra-low friction coefficient, enabling long, uniform rotational decay cycles. The structural components are finished in a non-reflective matte coating to eliminate disruptive ambient glare during sensitive optics demonstrations.

For schools and universities aiming to expand their collection of interactive didactic models and classic, this unit provides superb academic utility. By physically separating the viewing slots from the illustration plane, it provides students with a tangible, mechanical look at early cinematographic technology. The device shifts abstract sensory concepts into measurable kinematic variables, enhancing retention across all student tiers.

Key Features

• Low-Friction Bearing Assembly: Equipped with precision steel ball bearings that provide highly fluid, stable, and extended manual rotation cycles.
• High-Impact PVC Discs: Features rigid, matte-finished animation templates that resist tearing, moisture degradation, and localized warping.
• Weighted Alloy Steel Base: Formulated with a wide, powder-coated base plate that dampens operational vibrations and anchors the unit during high-speed rotation.
• Modular Spindle Mount: Designed with a quick-release locking nut to let users swap out demonstration discs within seconds.
• Integrated Specular Mirror: Includes a high-reflectivity surface attached to a heavy-duty arm to accommodate standalone personal viewing setups.

Technical Specifications

What's Included in the Kit

• 1 x Phenakistoscope Demonstration Model heavy steel base assembly
• 6 x Pre-printed, double-sided high-contrast animation discs (12 total patterns)
• 2 x Blank custom-design template discs for student laboratory assignments
• 1 x Adjustable specular viewing mirror attachment arm
• 1 x Comprehensive lab activity manual with template expansion guides

Applications / Uses

• Demonstrating the threshold frequency required for visual fusion to show how human optical pathways process frame rates.

• Exploring historical engineering principles regarding mechanical shutters, early cinematography, and phase-locked loop mechanisms.
• Serving as an interactive standalone centerpiece inside modular elementary physics.

How to Use the Phenakistoscope Demonstration Model

1. Anchor the Phenakistoscope Demonstration Model base onto a flat, unyielding laboratory bench plate.
2. Select one of the pre-printed high-contrast animation discs and slide it over the central spindle pin, positioning the illustrative face outward.
3. Tighten the quick-release locking nut by hand until the template disc is held firm against the bearing hub.
4. Position the unit directly facing the included reflective mirror assembly or a flat wall mirror at a distance of roughly 30 cm.
5. Look through the back of the radial viewing slots toward the mirror image of the illustration plane.
6. Spin the knurled edge of the disc driver smoothly by hand to experience the stroboscopic animation effect.

Handling Note: Spin the mechanical disc frame smoothly using the dedicated knurled handle; excessive lateral force applied to the outer disc perimeter can induce axial spindle misalignment.

Care & Maintenance

• Cleaning: Wipe down the matte PVC plates using a dry, anti-static cloth; never apply aggressive hydrocarbon solvents which could strip the printed ink profiles.
• Storage: Keep the modular disc array flat inside a dry storage container to protect the geometric profiles from thermal warping.
• Handling: Apply a single drop of fine synthetic instrument oil to the spindle bearing channel annually to maintain peak low-friction performance.

Why Choose Science Lab Supplies

Science Lab Supplies is an established manufacturer and premier global exporter of robust laboratory instruments designed for long-term classroom use. Our engineering teams integrate hard-wearing raw materials with clear pedagogical functionality to produce highly reliable laboratory demonstration tools. Every batch undergoes strict compliance audits to verify structural integrity and geometric consistency. With our advanced international logistics channels, we ensure prompt and safe fulfillment to schools, colleges, and institutional distributors across the globe.

Frequently Asked Questions

How does the phenakistoscope generate the illusion of movement?

The apparatus uses a series of radial viewing slots that act as a mechanical shutter mechanism. As the disc rotates, the slots momentarily expose the static images in rapid succession, which stops motion blur and allows the human eye to fuse the discrete phases into a continuous animation loop.

Can students create their own animations with this kit?

Yes, the kit includes two blank matte PVC template discs that allow students to design, sketch, and experiment with custom sequential animation parameters using standard markers.

Does the unit require an electrical outlet or batteries?

No, the Phenakistoscope Demonstration Model operates entirely mechanically through manual hand rotation, meaning it requires zero external power hookups.

Is the display mirror adjustable?

Yes, the companion mirror bracket features dual articulation points to let users alter both the viewing height and reflection angles quickly.

What age group is this didactic apparatus intended for?

The model is optimized for middle school science modules through undergraduate physics courses exploring perception thresholds, wave mechanics, and geometric optics.

Explore our complete digital catalog of laboratory instruments to discover matching optical systems, or message our commercial export department to add these items to your facility's procurement checklist.
