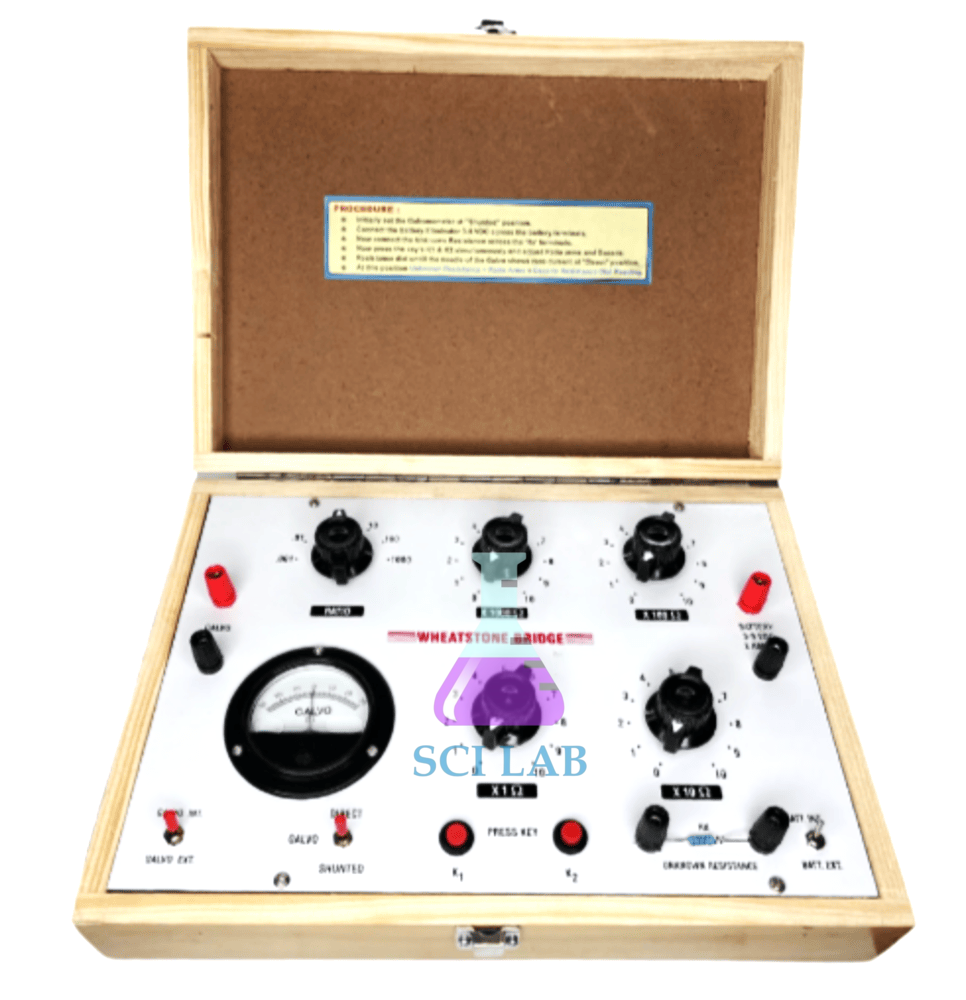

Portable Wheatstone Bridge Apparatus Circuit Board

Product Code : SCL-EAE-12041

The Portable Wheatstone Bridge Apparatus Circuit Board is a self-contained electrical bridge circuit used for measuring unknown electrical resistance with high precision in laboratory environments. Engineered for physics classrooms and electrical engineering students, this portable board provides a hands-on method to demonstrate null deflection principles, circuit balancing, and fundamental network theorems.

Product Description

The Portable Wheatstone Bridge Apparatus Circuit Board by Science Lab Supplies provides an exceptionally reliable and robust platform for investigating classic electrical properties. This apparatus incorporates built-in standard resistance arms, multiple multiplier ratio dials, and an integrated sensitive analog galvanometer. Built inside a tough, impact-resistant ABS polymer base with a composite top interface panel, this board easily withstands rigorous handling during student laboratory sessions.

The device features an explicit, high-contrast circuit diagram silkscreened directly onto its high-grade glass epoxy printed circuit board (PCB) surface. By housing all standard bridge components inside a single, compact workspace, this trainer eliminates the traditional clutter of loose resistance boxes, external power links, and delicate spot galvanometers. It represents a vital instructional tool for educational institutions expanding their collection of professional scientific laboratory instruments.

Key Features

• High-Precision Measurement: Provides highly accurate resistance determination using the classic zero-current null deflection method.
• All-In-One Portability: Features an integrated galvanometer and internal battery compartment to eliminate the need for external desktop bench additions.
• Durable Glass Epoxy PCB: Formed on heavy-duty fiberglass laminates to prevent trace degradation over long laboratory periods.
• Clear Diagram Overlay: The front panel graphics display the four-arm bridge schematic layout explicitly to assist independent student study.
• Protected Galvanometer Node: Built-in push-button shunt switches safeguard the delicate center-zero meter needle from high initial current surges.
• Secure Safety Connections: Outfitted with 4mm insulated safety sockets to ensure solid electrical contact and user protection during wiring steps.

Technical Specifications

What's Included in the Kit

• 1 x Portable Wheatstone Bridge Apparatus Circuit Board master unit
• 1 x Set of unknown testing resistors (encapsulated known values for training verification)
• 10 x Multi-colored stackable 4mm banana plug patch cords
• 1 x Comprehensive English instructional guide detailing step-by-step lab experiment setups

Applications / Uses

• Physics Laboratory Experiments: Ideal for verifying the principles of balanced electrical circuits in secondary schools.
• Engineering Component Testing: Used by technical vocational students to practice manual resistance tracking and instrument calibration steps.
• Curriculum-Aligned Instruction: Acts as an excellent resource for structured laboratory courses using academic science kits.
• STEM Project Integration: Integrates into advanced sensor development projects alongside flexible STEM models & kits.

How to Use the Portable Wheatstone Bridge Apparatus Circuit Board

1. Position the portable apparatus flat on a stable, dry laboratory workbench.
2. Insert your unknown test resistor into the dedicated '$X$' terminal arm using the provided 4mm banana patch cords.
3. Switch on the internal DC battery power rail using the front panel toggle switch.
4. Adjust the rotary ratio arm and the standard variable resistance dials while holding down the coarse galvanometer push-button.
5. Fine-tune the resistance dials until the galvanometer pointer reaches exact null deflection ($0$ µA), then calculate the unknown value using the balanced bridge formula:

$$\frac{P}{Q} = \frac{R}{X}$$

Safety Note: Always utilize the coarse galvanometer push-button during initial adjustments to limit current surges through the delicate analog needle mechanism.

Care & Maintenance

• Battery Management: Remove the internal 9V battery if the apparatus is scheduled to remain unused inside the locker for extended periods to prevent corrosive leakage.
• Panel Preservation: Wipe down the composite front panel and acrylic meter face periodically with a dry, clean microfiber cloth. Never apply liquid cleaning sprays or chemical solvents.
• Storage Environment: Store the training board inside a well-ventilated, climate-controlled cabinet away from extreme humidity and direct sunlight.

Why Choose Science Lab Supplies

Science Lab Supplies is a premier international manufacturer and global exporter of high-accuracy scientific laboratory instruments, educational trainers, and didactic models. Operating under strict ISO 9001:2015 quality management structures, we ensure that every training board delivers exceptional structural longevity and strict electrical calibration limits. We proudly support global educational ministries and institutional buyers with comprehensive inventory solutions, including secondary school mathematics kits and heavy-duty engineering trainers. Our dependable worldwide supply networks guarantee prompt, damage-free international distribution directly to your science laboratory.

Frequently Asked Questions

• How does a Wheatstone bridge determine unknown resistance?

It utilizes a four-arm balanced circuit network where a variable resistance is adjusted until the potential difference across the central galvanometer drops to zero, establishing a proportional equilibrium.

• Does this apparatus require an external power supply?

No, the unit includes an internal 9V DC battery compartment for full field portability, though external low-voltage DC inputs can be connected if necessary.

• Is the analog galvanometer needle protected from current overloads?

Yes, the circuit board integrates parallel shunt resistors activated by spring-loaded push-buttons to protect the needle from high current deflections until final balance is reached.

• What range of resistances can this apparatus accurately measure?

The onboard ratio multiplier dials allow students to measure unknown resistance values ranging precisely from 1 $\Omega$ up to 10 M$\Omega$.

• Can this trainer board be used for advanced collegiate physics labs?

Yes, its high-purity component tolerances, transparent panel layout, and reliable accuracy make it perfect for both introductory school demonstrations and university-level electronics instruction.

Explore our complete collection of electrical measurement tools online, or contact our customer support desk today to add this precise Portable Wheatstone Bridge Apparatus Circuit Board to your center's suite of professional scientific laboratory instruments.
