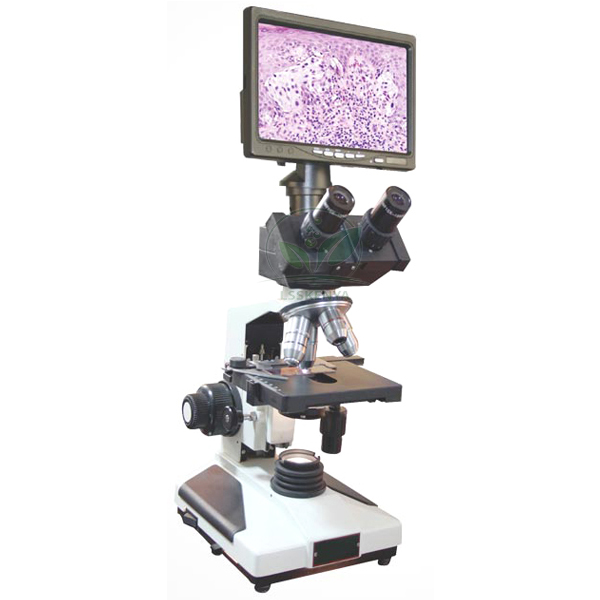

Trinocular Research Microscope With Digital Microscopy Screen Camera
Product Code : LSK-M-11374
Trinocular Research Microscope With Digital Microscopy Screen Camera (SKU LSK-M-11374) combines a trinocular compound microscope covering 40x to 1000x with an LCD screen camera that shows the live image on a 7″ TFT monitor, with no USB cable, driver or software needed. It suits college, university and research laboratories that want to share images with a group. Science Lab Supplies quotes the outfit from Ambala, India for institutions, laboratory suppliers and tender buyers.
Specifications
Both the microscope and its screen camera are specified in the table below. In short, a 45° trinocular head carries WF 10x eyepieces over DIN semi plan 4x to 100x oil objectives, a 135 x 140 mm stage moves 50 x 70 mm on vernier scales, and the camera has a 7″ LCD screen with IR remote control.
| Specification | Value |
|---|---|
| SKU | LSK-M-11374 |
| Observation head | Trinocular, 45° inclination, rotatable through 360°, fixable in any direction |
| Interpupillary distance | 54 to 74 mm, with diopter adjustment |
| Eyepieces | WF 10x (paired) |
| Objectives | DIN semi plan 4x, 10x, 40x, 100x (oil) |
| Magnification | 40x to 1000x |
| Nosepiece | Quadruple revolving, accurate centering, positive click stop |
| Condenser | Bright field, NA 1.25, iris diaphragm, swing-out filter holder, rack and pinion |
| Stage | 135 x 140 mm, low co-axial X-Y controls |
| Cross movement | 50 x 70 mm with fully graduated vernier scales |
| Illumination | 6V 20W halogen lamp |
| Camera type | LCD screen microscope camera, built-in camera and screen |
| Monitor | 7″ TFT LCD, full colour, backlit |
| Screen ratio | 16:9 or 4:3, adjustable |
| Contrast ratio | 400:1 |
| Picture adjustment | Brightness, contrast and colour |
| Connection | No USB cable, driver or application software required |
| Camera control | IR remote controller |
| Camera power | Low power consumption |
| Accessories | Vinyl cover, duster, cleaning brush, filter, immersion oil, operating manual |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Trinocular Research Microscope
The screen camera turns the microscope into a shared viewing station: while one person focuses through the eyepieces, others watch the live image on the 7″ monitor. Semi plan objectives and an NA 1.25 condenser support work up to 1000x. It fits undergraduate, postgraduate and research life-science teaching.
- Group demonstrations of cell division with the Cell Division slide set of 9, shown live on the monitor.
- Embryology teaching using a Blastula Stage Embryo Slide at 100x and 400x.
- Microbiology and histology practicals where the instructor points out features on screen.
- Comparing observations as a group before students draw and label them, with the 100x oil objective used for bacteria.
Standard Scope of Supply
The outfit comprises the trinocular microscope with its paired WF 10x eyepieces, four DIN semi plan objectives, NA 1.25 condenser, vernier stage and halogen lighting, the digital microscopy screen camera with 7″ LCD monitor and IR remote, plus a vinyl cover, duster, cleaning brush, filter, immersion oil and operating manual.
Packing, MOQ and Lead Time
A quotation can be raised for one complete microscope-and-camera outfit or for several units for a department. Science Lab Supplies gives packing, delivery time and price for the quantity requested, and prepared slide sets can be listed on the same quotation.
Under its Importer-Exporter Code, Science Lab Supplies can ship to buyers in Nigeria, Kenya, Ghana, Ethiopia, Tanzania and Uganda. Use the contact page to ask questions, the enquiry cart to build a list, and the lab tender page for tendered purchases.
Frequently Asked Questions
Does the screen camera need a computer?
No. The camera has its own built-in screen, so no USB cable, driver or application software is required. Switch it on and the live image appears on the 7″ TFT LCD monitor straight away.
Can the image settings be changed?
Yes. Brightness, contrast and colour are adjustable, the screen ratio can be set to 16:9 or 4:3, and an IR remote controller is provided for operating the camera.
What magnification does the Trinocular Research Microscope With Digital Microscopy Screen Camera reach?
With paired WF 10x eyepieces and DIN semi plan 4x, 10x, 40x and 100x oil objectives, it covers 40x to 1000x. The 100x objective uses the immersion oil supplied with the microscope.
Who supplies this trinocular outfit?
Quotations for the microscope and screen camera come from Science Lab Supplies in Ambala, India. Each one sets out the full outfit, packing and the dispatch arrangement for colleges, research groups and distributors.
