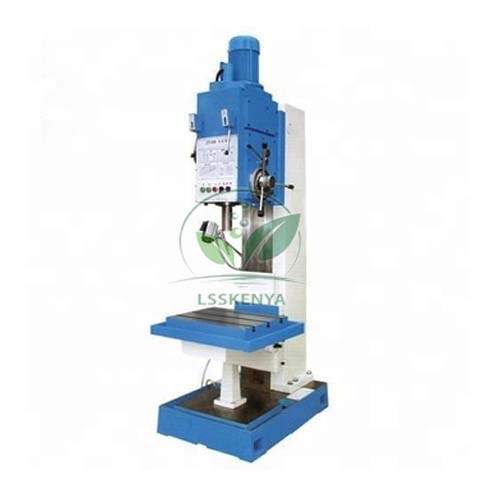

Upright Drilling Machine
Product Code : LSK-MMTM-10615
Upright Drilling Machine (SKU LSK-MMTM-10615), also called a pillar or column drilling machine, drills holes up to 25 mm in diameter with the spindle moving vertically above a worktable and base plate. It is a core machine in fitting and machining workshops at ITI centres, polytechnics, engineering colleges and TVET institutes. Science Lab Supplies supplies this machine from Ambala, India to training institutes, tender contractors and distributors.
Specifications
The spindle has a Morse No. 3 taper bore and 140 mm of travel, and its centre sits 315 mm from the column. A 0.75 or 0.55 kW motor drives spindle speeds of 100 to 2,900 rpm on a 50 Hz supply. The 315 x 415 mm worktable is served by a 3-phase cooling pump delivering 12 L/min.
| Parameter | Value |
|---|---|
| SKU | LSK-MMTM-10615 |
| Max. drilling diameter | 25 mm (1 in) |
| Spindle bore taper | Morse No. 3 |
| Max. spindle travel | 140 mm (5-1/2 in) |
| Spindle centre to column | 315 mm (12-3/8 in) |
| Spindle nose to worktable (max.) | 660 mm (26 in) |
| Spindle nose to base plate (max.) | 480 mm (18-7/8 in) |
| Worktable | 315 x 415 mm (12-3/8 x 16-3/8 in) |
| Base plate working area | 475 x 400 mm (18-11/16 x 15-3/4 in) |
| Spindle speeds (50 Hz) | 100 to 2,900 rpm |
| Motor power | 0.75 or 0.55 kW |
| Cooling pump | 3-phase, 0.04 kW, 12 L/min, 380 V 50 Hz |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Upright Drilling Machine
Trainees use the machine for drilling, reaming, counterboring and tapping on marked-out jobs. The worktable takes small parts in a vice, while taller work can sit on the base plate, and the speed range lets learners match spindle speed to drill size and material.
- ITI Fitter trade: drilling and tapping marked-out plates and brackets.
- ITI Machinist and Turner trades: reaming and counterboring practice.
- TVET engineering modules: selecting speed and feed for drill size and material.
- Diploma and B.Tech workshop practice: drilling machine demonstrations and safety.
Clamp work in a vice rather than holding it by hand, tie back loose clothing and wear eye protection; trainees should drill under an instructor.
Standard Scope of Supply
The Upright Drilling Machine is supplied as a single machine with its drive motor and cooling pump, as described above. Drills, chucks and a drilling vice are not listed in the specification; any optional accessories you ask for are shown on the quotation.
Packing, MOQ and Lead Time
We can quote one drilling machine or a row of them for a fitting shop. Each quotation gives packing, delivery time and price for the number requested, and vices or other TVET workshop equipment can go on the same document.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Bangladesh, Zambia, Rwanda, South Africa, Qatar and Sri Lanka. Reach the sales team on the contact page, list machines in the enquiry cart, or see the lab tender page for tender supply.
Frequently Asked Questions
What is the drilling capacity?
The machine drills holes up to 25 mm (1 inch) in diameter, with a Morse No. 3 spindle taper and 140 mm spindle travel.
What speed range does it offer?
On a 50 Hz supply the spindle runs from 100 to 2,900 rpm, driven by a 0.75 or 0.55 kW motor. Confirm your site supply on the enquiry.
Who supplies the Upright Drilling Machine?
Science Lab Supplies supplies it from Ambala, India, to ITI centres, polytechnics, TVET colleges and engineering colleges, and to workshop contractors.
Related Drilling Equipment
A drilling machine needs secure workholding, and larger jobs call for a radial drill. These four items complete a drilling and fitting bay for training and can be quoted together with this machine.
- Drilling Machine Vice — C.I. vice that clamps work on the table.
- Radial Drilling Machine — for larger and heavier workpieces.
- Tilting and Swiveling Vice — holds work for angled holes.
- Thread Gauge — checks threads after tapping.
