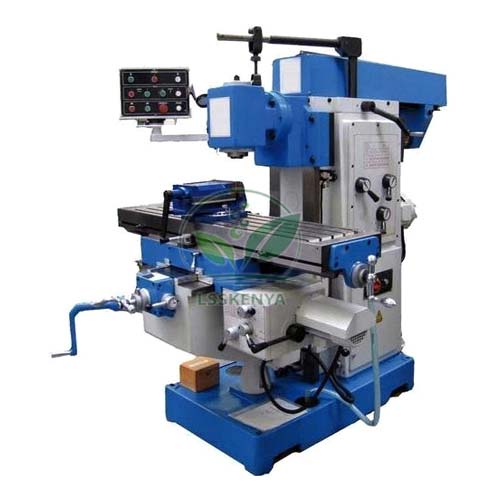

Universal Milling Machine
Product Code : LSK-MMTM-10606
Universal Milling Machine (SKU LSK-MMTM-10606) is a knee-type milling machine whose table swivels, so it can mill flat faces, slots and, with a dividing head, helical work. Machining workshops in ITI centres, polytechnics, engineering colleges and TVET institutes use it to train machinists and tool-room staff. Science Lab Supplies supplies this machine from Ambala, India to institutes, colleges, tender contractors and distributors.
Specifications
The table has a 1150 x 255 mm working surface with three T-slots and swivels through 22 degrees. A 2 HP main motor drives four spindle speeds from 110 to 580 RPM through a 25.4 mm arbor, the longitudinal feed works by hand or automatically, and a separate coolant motor is fitted. The machine weighs about 950 kg.
| Parameter | Value |
|---|---|
| SKU | LSK-MMTM-10606 |
| Table working surface | 1150 x 255 mm, 3 T-slots, 57 mm apart |
| Table swivel | 22 degrees |
| Spindle centre to table (max.) | 400 mm |
| Travels | Longitudinal 600 mm (hand and auto); cross 200 mm and vertical 400 mm (hand) |
| Spindle speeds | 4, from 110 to 580 RPM |
| Milling arbor diameter | 25.4 mm |
| Overarm to spindle centre | 140 mm |
| Longitudinal feeds | 3 |
| Main motor | 2 HP, 1440 RPM |
| Coolant motor | 0.11 kW, 2700 RPM |
| Floor space / height | 600 x 900 mm / 1400 mm |
| Approx. weight | 950 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Universal Milling Machine
Trainees use the machine for plain, slot, step and form milling, and, with the table swivelled and a dividing head fitted, for helical and gear-cutting exercises. It is standard heavy equipment for machinist and tool-and-die training.
- ITI Machinist and Tool and Die Maker trades: plain, face, slot and step milling jobs.
- Diploma and B.Tech workshop technology: demonstrating horizontal and universal milling.
- TVET machining modules: indexing and gear-cutting exercises with a dividing head.
As with any machine tool, trainees should work under an instructor, with guards in place and loose clothing secured.
Standard Scope of Supply
The Universal Milling Machine is supplied as a single machine with its 2 HP main drive and coolant motor, as described above. Dividing heads, vices, arbors and cutters are separate items; any optional accessories you choose are listed on the quotation.
Packing, MOQ and Lead Time
Machines like this are quoted individually or as part of a complete workshop package. The quotation states packing, delivery time and price for the quantity requested, and vocational training equipment such as arbors or a dividing head can be quoted with it.
Science Lab Supplies is a registered exporter with an Importer-Exporter Code and can ship to buyers in Ghana, Ethiopia, Tanzania, Uganda, the UAE and Saudi Arabia. Share your requirement via the contact page or the enquiry cart; public buyers can refer to the lab tender page.
Frequently Asked Questions
What makes this a universal milling machine?
Its table swivels, here through 22 degrees, so the work can be set at an angle to the cutter. With a dividing head this allows helical and spiral milling as well as ordinary plain milling.
What power supply and motors does it use?
It has a 2 HP, 1440 RPM main drive motor and a 0.11 kW coolant motor. Please confirm your site supply on the enquiry so the quotation matches it.
Who supplies the Universal Milling Machine?
Science Lab Supplies supplies it from Ambala, India, to training institutes, colleges and workshop contractors, often with accessories for a complete milling section.
Related Milling Accessories
A milling machine is only as useful as the workholding and tooling around it. These four accessories let a training workshop run indexing, angled and arbor-mounted cutter jobs on the machine, and they can be quoted together with it.
- Universal Dividing Head — indexing for gears, flutes and spiral milling.
- Tilting and Swiveling Vice — holds work at compound angles.
- Milling Arbor — mounts cutters on the machine spindle.
- Long Milling Arbors — supported arbors for gang and straddle milling.
Browse the full Metal Manufacturing Training Machine range or all TVET lab equipment.
Last updated: 25 September 2026
