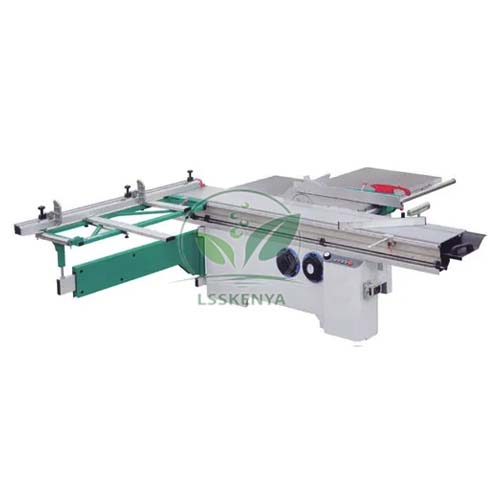

Sliding Panel Saw Machine
Product Code : LSK-WWPT-10724
Sliding Panel Saw Machine (SKU LSK-WWPT-10724) is a heavy panel saw with a 3150 mm cutting length, built to break down full sheets of plywood, MDF and laminated board into accurate parts. A scoring saw ahead of the main blade gives clean edges on faced panels. Furniture and joinery shops in ITI, polytechnic and TVET institutes use it for panel work. Science Lab Supplies supplies it from Ambala, India to institutes, contractors and distributors.
Specifications
The machine weighs about 900 kg, which keeps it steady when long panels travel past the blade. A 4 kW main saw motor runs at 5800 rpm, and a separate 0.75 kW motor drives the 120 mm scoring saw at 7700 rpm.
| Parameter | Value |
|---|---|
| SKU | LSK-WWPT-10724 |
| Cutting length | 3150 mm |
| Main saw motor | 4 kW, 5800 rpm |
| Scoring saw | 120 x 20 mm |
| Scoring saw motor | 0.75 kW, 7700 rpm |
| Net weight | 900 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Sliding Panel Saw
The panel saw is used to cut sheet material to a cutting list for cabinets, wardrobes, shelving and doors. It suits ITI carpentry and furniture trades, TVET modular furniture and joinery modules, and polytechnic production workshops where trainees learn to size panels square and without edge chipping.
- Breaking down full sheets up to 3150 mm long into carcass parts.
- Clean cuts on laminated and veneered board using the scoring saw.
- Preparing a cutting list and optimising sheet use in a furniture project.
- Teaching safe feeding, guarding and blade setting on a heavy saw.
Given its motor power and exposed blade, the saw should be run only by trained users under supervision, with guards fitted and dust extraction connected.
Standard Scope of Supply
The Sliding Panel Saw Machine is supplied as a single unit with its main saw and scoring saw drives, as described above. Spare blades, extraction and any other optional accessories are listed on the quotation, together with the main blade size to suit your panels.
Packing, MOQ and Lead Time
Quotations are available for a single panel saw or for a complete furniture workshop set-up. Each one gives the packing, delivery time and price for the quantity requested; with a 900 kg net weight, the packing details are worth checking against your site access.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Nepal, Bangladesh, Zambia, Rwanda, South Africa and Qatar. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). Enquire through the contact page or enquiry cart, and see the lab tender page for institutional buying.
Frequently Asked Questions
How long a cut can the machine make?
The cutting length is 3150 mm, enough to cut standard full-size boards along their length in one pass.
How does it differ from the Dimension Saw Machine?
This saw has a longer 3150 mm cutting length and a larger 4 kW main motor, and weighs 900 kg. The Dimension Saw Machine has a 3000 x 320 mm sliding table and a 3 kW motor.
Who supplies the Sliding Panel Saw Machine?
Science Lab Supplies supplies it from Ambala, India, to ITIs, polytechnics, TVET centres, tender contractors and distributors of workshop machinery.
Is it suitable for a vocational training workshop?
Yes, for panel and furniture courses with space for a 900 kg machine and supervised operation. Send your workshop layout and power supply details and the quotation will be prepared accordingly.
Related Panel and Furniture Machines
These four items complete a panel-processing line in a furniture training shop: a lighter sizing saw, a cross-cut machine for solid timber, a glue spreader for laminating, and extraction for the dust a panel saw produces. Institutes can quote them together.
- Dimension Saw Machine — 3 kW sliding-table saw with scoring blade.
- Radial Cross Cutting Machine — cross-cutting solid timber.
- Glue Spreader Roll — spreads adhesive for laminating panels.
- Universal Dust Collector — extraction for saws.
