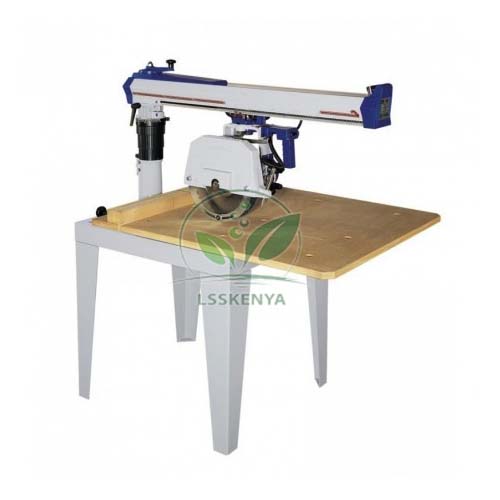

Radial Cross Cutting Machine
Product Code : LSK-WWPT-10731
Radial Cross Cutting Machine (SKU LSK-WWPT-10731) is a heavy radial saw for cutting timber across the grain, with a head that swivels and tilts for angled and bevel cuts. Its 4.5 HP motor and 305 or 355 mm blade handle thicker stock than a light radial arm saw, making it suitable for joinery and furniture shops at ITI, polytechnic and TVET institutes. Science Lab Supplies supplies it from Ambala, India to institutes, contractors and distributors.
Specifications
The saw head runs on rails carried by eight bearings, driven by a 4.5 HP motor at 2900 rpm. It swivels through 0–180 degrees and tilts through 0–90 degrees over a 900 x 1100 mm table, giving a maximum cross-cutting length of 620 mm and a trimming width of 860 mm.
| Parameter | Value |
|---|---|
| SKU | LSK-WWPT-10731 |
| Motor | 4.5 HP, 2900 rpm |
| Blade diameter | 12 in (305 mm) / 14 in (355 mm) |
| Spindle bore | 1 in (25.4 mm) |
| Rail bearings | 8 |
| Head swivel / tilt | 0–180° / 0–90° |
| Maximum trimming width | 860 mm |
| Maximum cross-cutting length | 620 mm |
| Table area | 900 x 1100 mm |
| Machine / packing size | 1120 x 1100 x 1170 mm / 1150 x 970 x 790 mm |
| Net weight | 200 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Radial Cross Cutting Machine
The cross-cutting machine brings sawn timber to length and angle before planing and jointing. With its swivelling and tilting head, it suits ITI carpentry and furniture trades, TVET joinery and construction modules, and polytechnic workshops where trainees prepare cutting lists from heavier stock.
- Square cross cuts on boards up to 620 mm cutting length.
- Angled cuts with the head swivelled, and bevels with it tilted.
- Trimming wide boards up to 860 mm.
- Teaching guarding, blade selection and safe pull-through on a powered radial saw.
This saw produces heavy chips and dust; connect extraction, keep guards in place and allow operation only under supervision.
Standard Scope of Supply
The Radial Cross Cutting Machine is supplied as a single unit with its table, rails and saw head, as described above. Blades in the size you choose, extraction and optional accessories are listed separately on the quotation.
Packing, MOQ and Lead Time
You can ask for a price on one machine or on a full wood-machining line. Each quotation gives the packing, delivery time and price for that quantity, and other TVET workshop equipment can be listed on the same document.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Vietnam, Malaysia, Peru, Egypt, Iraq and Nigeria. Enquire through the contact page or enquiry cart, or read the lab tender page.
Frequently Asked Questions
How does it differ from the Radial Arm Saw?
This machine has a 4.5 HP motor, larger 305 or 355 mm blades, a 900 x 1100 mm table and weighs 200 kg. The Radial Arm Saw is a lighter single-phase saw for 10 and 12 inch blades.
What angles can it cut?
The head swivels from 0 to 180 degrees and tilts from 0 to 90 degrees, covering square, angled and bevel cuts.
Who supplies the Radial Cross Cutting Machine?
Science Lab Supplies supplies it from Ambala, India, to ITIs, polytechnics, TVET centres, tender contractors and distributors, with other wood workshop machines.
Can it be quoted for a tender?
Yes. Send the tender specification, quantity and delivery location through the contact page for an item-wise quotation.
Related Cutting Machines
These machines share the cutting work in a joinery training shop: a lighter radial saw, two panel saws for sheet material, and extraction to handle the heavy chip load. Institutes setting up a wood-machining section usually quote them together.
- Radial Arm Saw — lighter single-phase cross-cut saw.
- Dimension Saw Machine — sliding-table panel sizing.
- Sliding Panel Saw Machine — 3150 mm panel cutting.
- Universal Dust Collector — chip and dust extraction.
Browse the full Wood Workshop Portable Tool range or all TVET lab equipment.
