Portable Circular Saw
Product Code : LSK-WWM-10639

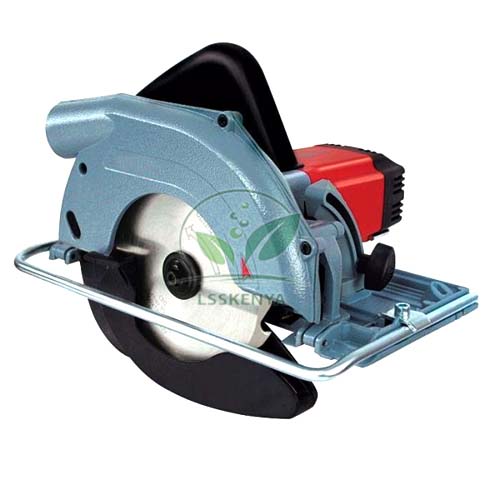

Portable Circular Saw (SKU LSK-WWM-10639) is a hand-held power saw with a 210 mm blade for straight and bevel cuts in timber and board, taken to the work rather than the work to a machine. Carpentry and construction sections of ITI, polytechnic and TVET institutes use it for framing, sheet cutting and site practice. Science Lab Supplies supplies it from Ambala, India to institutes, tender contractors and distributors.
Specifications
A 1.6 kW single-phase motor on 220 V, 50 Hz spins the 210 mm blade at 4000 rpm. The saw cuts up to 70 mm deep with the blade at 90 degrees and 45 mm deep at a 45-degree bevel, enough for common framing timber and sheet materials used in training.
| Parameter | Value |
|---|---|
| SKU | LSK-WWM-10639 |
| Blade size | 210 mm |
| Max. cutting depth at 90 degrees | 70 mm |
| Max. cutting depth at 45 degrees | 45 mm |
| Motor | 1.6 kW, single phase, 220 V, 50 Hz |
| Speed | 4000 rpm |
| Documentation | Installation, operation and service manuals with circuit/system schematics, in English |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Portable Circular Saw
Instructors use the saw to teach setting depth and bevel, marking and following a line, supporting the work so the kerf does not close, and safe handling of a hand-held blade. It fits carpentry, construction and building-services courses at ITI, TVET and polytechnic level.
- ITI Carpenter trade: cutting studs, joists and plywood sheet.
- TVET construction carpentry modules: formwork and roof framing cuts.
- Polytechnic civil and interior courses: on-site sizing of boards.
Let trainees use it only after instruction, with eye and hearing protection, the lower guard working freely and the plug removed before blade changes.
Standard Scope of Supply
The saw is supplied with 3 blades, together with installation and operation manuals and a service manual with circuit and system schematics, all in English. Further blades or a carry case can be listed on the quotation.
Packing, MOQ and Lead Time
Science Lab Supplies can quote a single saw or a batch for a whole carpentry class. The quotation confirms the packing, delivery time and price for that quantity, and extra blades or other workshop tools for technical training institutes can be added.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Rwanda, South Africa, Qatar, Sri Lanka, Vietnam and Malaysia. Enquire via the contact page or enquiry cart; see also the lab tender page.
Frequently Asked Questions
How deep can it cut?
Up to 70 mm with the blade upright and 45 mm at a 45-degree bevel, using the 210 mm blade.
What comes with the saw?
Three blades, installation and operation manuals, and a service manual with circuit and system schematics in English.
What power supply does it use?
A single-phase 220 V, 50 Hz supply; the motor is rated 1.6 kW and runs the blade at 4000 rpm.
Who supplies the Portable Circular Saw?
Science Lab Supplies supplies it from Ambala, India to ITI and TVET institutes, colleges, tender contractors and distributors as TVET workshop equipment.
