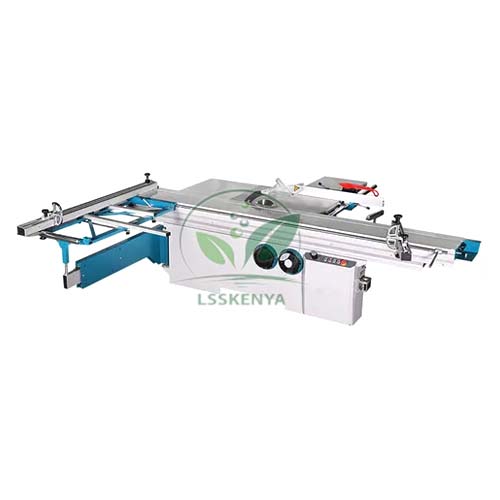

Woodworkers Table Saw Machine
Product Code : LSK-WWM-10634
Woodworkers Table Saw Machine (SKU LSK-WWM-10634) is a heavy table saw with a tilting main blade, a separate lining (scoring) saw and a long sliding worktable for accurate rip, cross and bevel cuts in solid timber and sheet panels. It suits furniture and joinery workshops in ITI, polytechnic and TVET institutes. Science Lab Supplies supplies it from Ambala, India to institutes, tender contractors and distributors.
Specifications
The main saw takes a disc of up to 350 mm on a 30 mm spindle, driven by a 4 to 5.5 kW motor at 4200 or 5500 rpm, and tilts from 0 to 45 degrees. A 120 mm lining saw on its own 0.75 kW motor scores the panel face ahead of the main cut, and the sliding table is 3000 or 3200 mm long.
| Parameter | Value |
|---|---|
| SKU | LSK-WWM-10634 |
| Max. main saw disc | 350 mm |
| Main saw spindle | 30 mm dia., 4200 / 5500 rpm |
| Main saw motor | 4 to 5.5 kW |
| Saw tilt | 0 to 45 degrees |
| Max. cutting thickness | 95 mm at 90 degrees; 65 mm at 45 degrees |
| Lining (scoring) saw | 120 mm disc, 22 mm spindle, 8000 rpm, 0.75 kW |
| Lining saw height adjustment | 0 to 5 mm |
| Sliding worktable length | 3000 / 3200 mm |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Woodworkers Table Saw
In training the machine is used to cut boards and full sheets of plywood, MDF or laminated board to size with clean, chip-free edges. Instructors teach fence and sliding-table setting, bevel cutting and safe feeding of large panels in carpentry and furniture courses.
- ITI Carpenter and furniture trades: sizing panels for cabinets and wardrobes.
- TVET joinery modules: rip, cross and 45-degree bevel cuts.
- Polytechnic interior and furniture design courses: batch cutting of project parts.
The blades run at high speed with powerful motors: keep guards and the riving knife in place, use push sticks and allow operation only under supervision.
Standard Scope of Supply
The machine is supplied as a single unit as described above, with main saw, lining saw and sliding worktable; any optional accessories and spare blades are listed on the quotation. Confirm the table length and the electrical supply of your workshop when enquiring.
Packing, MOQ and Lead Time
A quotation can cover a single saw or a complete furniture workshop. It states the packing, delivery time and price for the quantity requested, and a dust collector or other TVET workshop equipment can be added on the same page.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Oman, the Philippines, Nepal, Bangladesh, Zambia and Rwanda. Enquire via the contact page or enquiry cart; see also the lab tender page.
Frequently Asked Questions
What is the lining saw for?
The 120 mm lining saw scores the underside of a panel just ahead of the main blade, which helps give a clean edge on laminated or veneered board. Its height adjusts from 0 to 5 mm.
How thick a piece can it cut?
Up to 95 mm with the blade upright and 65 mm with the blade tilted to 45 degrees, using a main disc of up to 350 mm.
Who supplies the Woodworkers Table Saw Machine?
Science Lab Supplies supplies it from Ambala, India to ITI and TVET institutes, colleges, tender contractors and distributors of vocational training equipment.
Which sliding table length should I choose?
The table is listed at 3000 or 3200 mm. Choose by the length of the sheets you cut and your floor space, and state it on your enquiry.
