Digital Hydraulic Bench
Product Code : LSK-FM-10465

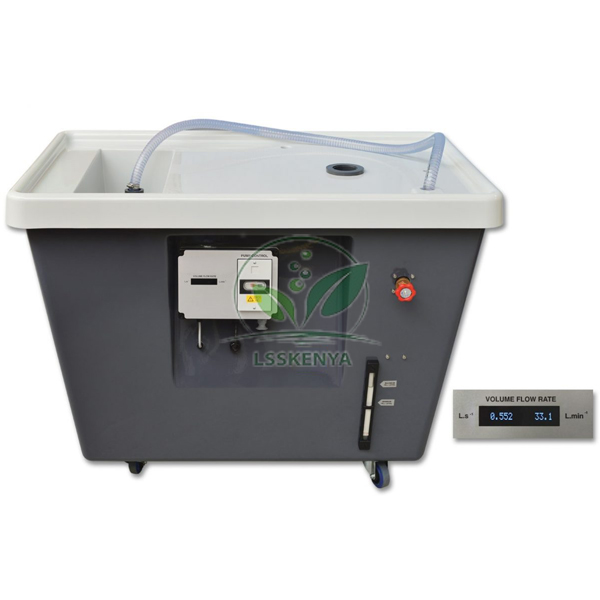

Digital Hydraulic Bench (SKU LSK-FM-10465) is a wheeled, self-contained water bench that supplies a controlled, measured flow to a wide variety of fluid mechanics experiment modules. It can serve as the central service unit of a hydraulics laboratory in engineering colleges and polytechnics. The bench is fabricated by Science Lab Supplies on its own shop floor at Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, for direct supply to institutions, tender contractors and distributors.
Specifications
The table sets out every specification of the bench, row by row. In short, its body forms a sump tank with a submersible pump, so once filled it needs no external water supply; an electronic flowmeter drives a digital flow display, a hand valve sets the flow, and the rimmed worktop holds one experiment module.
| Specification | Value |
|---|---|
| SKU | LSK-FM-10465 |
| Reservoir | Sump tank formed by the body of the bench |
| Water level check | Sight gauge on the lower side of the bench |
| Pump | Submersible pump in the sump tank |
| External water supply | Not needed once the tank is filled |
| Flow control | Hand-operated control valve |
| Flow measurement | Electronic flowmeter on the pump outlet |
| Flow display | Digital, angled for reading from a normal standing position |
| Electrical box | On the side of the bench: pump switch, circuit protection, digital flow display |
| Worktop | Working surface that holds one experiment module at a time |
| Spill containment | Rim around the top |
| Trough | Small recess with removable drain valve; traps a small volume and catches water discharged by some experiments |
| Wheels | Four |
| Wheel locks | Foot-operated, on two wheels |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Digital Hydraulic Bench
The bench is the water source and flow reference for bench-top fluid mechanics lab experiments: modules for pipe losses, Bernoulli's theorem, notches, orifices and jet impact sit on its worktop, while larger experiments can stand beside it. It serves B.Tech/B.E. civil and mechanical labs and diploma hydraulics practicals.
- Supplying and measuring flow for pipe-friction tests such as Friction Loss In A Pipe, which stands on the hydraulic bench.
- Feeding orifice, nozzle and notch modules, for example Jet Trajectory and Orifice Flow, for discharge-coefficient practicals.
- Providing a jet supply for impact and turbine work, including the Pelton Turbine, which comes with the pipes and fittings to connect to this bench.
Standard Scope of Supply
The bench is supplied as one wheeled unit: the sump-tank body with sight gauge, submersible pump, flow control valve, electronic flowmeter, the side electrical box with pump switch, circuit protection and digital display, and the rimmed worktop with trough and drain valve. Experiment modules are separate items and are quoted individually.
Packing, MOQ and Lead Time
Ask for a quotation for one bench or several for parallel student groups; it sets out packing, delivery time and price for the number you need. Experiment modules can go on the same quotation, so the whole bench line-up is priced together.
Science Lab Supplies holds an Importer-Exporter Code and can ship to buyers in Qatar, Sri Lanka, Vietnam, Malaysia, Peru and Egypt. List the bench and its modules in the enquiry cart, put questions to the sales team on the contact page, or turn to the lab tender page when the purchase runs through a tender.
Frequently Asked Questions
Does the bench need a mains water connection?
No. The body of the bench is its own sump tank with a submersible pump, so once it has been filled it needs no external water supply. A sight gauge shows the water level in the tank.
How is the flow rate measured?
An electronic flowmeter measures the outlet flow from the submersible pump and sends its signal to a digital display in the electrical box. The display is angled for easy reading by a standing user.
Can the bench be moved between rooms?
Yes. It runs on four wheels, and two of them have foot-operated locks to hold the bench in position during experiments. Switch off the pump before moving it.
Is Science Lab Supplies the manufacturer or a trader?
The sump-tank bench is a product of the Science Lab Supplies factory in Saha, Ambala, India, so specification details and quotations come from the maker, not from an agent.
