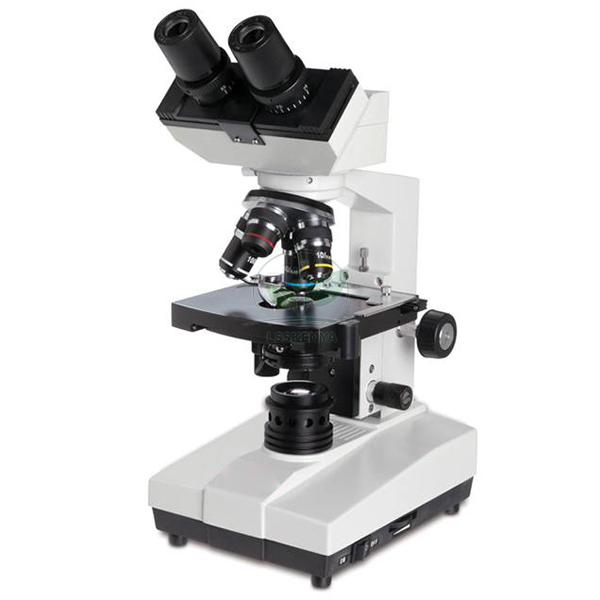

Economy Microscope
Product Code : LSK-M-11369
Economy Microscope (SKU LSK-M-11369) is a compound microscope with DIN achromatic objectives from 4X to 100X oil immersion, a WF10X eyepiece, an Abbe NA 1.25 condenser with iris and built-in halogen lighting. It suits school, college and training-institute laboratories that need oil-immersion capability in a straightforward outfit. Science Lab Supplies quotes this student microscope from Ambala, India for education buyers, resellers and tender contractors.
Specifications
Here is the full specification of the Economy Microscope. In short, four DIN achromatic objectives work with a WF10X eyepiece, the attachable mechanical stage measures 110 x 120 mm with 60 x 30 mm travel, focusing has separate coarse and fine controls with tension adjustment, and a 220V/6V 20W halogen lamp provides light.
| Specification | Value |
|---|---|
| SKU | LSK-M-11369 |
| Eyepiece | Wide field WF10X |
| Objectives | Achromatic DIN 4X, 10X, 40X (S), 100X (S, oil) |
| Magnification range | 40x to 1000x with the WF10X eyepiece |
| Stage | Attachable mechanical stage, 110 x 120 mm |
| Stage travel | 60 x 30 mm |
| Focusing | Separate coarse and fine adjustment |
| Focus tension | Tension control |
| Condenser | Abbe NA 1.25 with iris diaphragm and filter |
| Illumination | Built-in halogen lamp, 220V/6V 20W |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Economy Microscope
The microscope has the 100X oil objective and NA 1.25 condenser needed to view bacteria and blood cells, as well as the low and medium powers used for plant and animal tissue. Built-in lighting means no external lamp or mirror is required. It fits secondary school and first-year college biology.
- Class 9–12 biology (CBSE/NCERT): onion peel and cheek cells mounted on Laboratory Microscope Glass Slides (Pack 50) under Glass Cover Slips.
- Protozoa, yeast and algae studied at 400x with the 40X (S) objective.
- Introductory microbiology: stained bacteria with the 100X (S, oil) objective.
- Diploma and vocational laboratory courses that need a full-range compound microscope per student group.
Standard Scope of Supply
The Economy Microscope is supplied with the WF10X eyepiece, four DIN achromatic objectives (4X, 10X, 40X S and 100X S oil), the attachable mechanical stage, the Abbe NA 1.25 condenser with iris diaphragm and filter, and the built-in 220V/6V 20W halogen lamp. Optional extras can be added to the quotation.
Packing, MOQ and Lead Time
Quotations are available for one microscope or for a full class set. Science Lab Supplies gives packing, delivery time and price for the chosen number on each quotation, so you can compare a single unit with a laboratory quantity, and slides or cover slips can be included.
With its Importer-Exporter Code, Science Lab Supplies can ship to buyers in Vietnam, Malaysia, Peru, Egypt, Iraq and Nigeria. Submit a request on the contact page, gather items in the enquiry cart, or follow the lab tender page for public procurement.
Frequently Asked Questions
What magnifications does the Economy Microscope offer?
With the WF10X eyepiece, the 4X, 10X, 40X and 100X objectives give 40x, 100x, 400x and 1000x. The 100X objective is an oil-immersion type, so a drop of immersion oil is used for that setting.
What does "attachable mechanical stage" mean?
The mechanical stage is an attachable unit measuring 110 x 120 mm. Its control knobs move the slide over 60 x 30 mm, which is smoother and more precise than pushing a slide by hand.
Why does it have a tension control?
The tension control adjusts how stiffly the coarse focusing moves. Setting it correctly stops the focus drifting and gives a comfortable feel for separate coarse and fine adjustment.
Who supplies the Economy Microscope?
It is quoted by Science Lab Supplies, an equipment supplier in Ambala, India. Requests from schools, colleges and distributors receive a written quotation that confirms the outfit, the packing and how the order will be dispatched.
