Disc Sander Belt
Product Code : LSK-WWM-10637

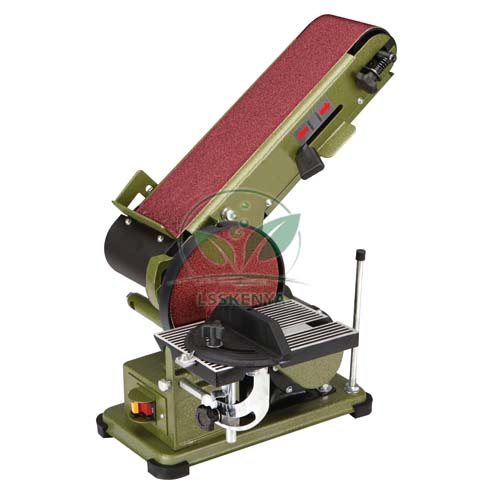

Disc Sander Belt (SKU LSK-WWM-10637) is a bench-top combination machine with a 4 x 36 in sanding belt and a 6 in sanding disc driven by one motor. The belt sands flat work and inside and outside curves, while the disc handles smaller pieces and end grain. It is used in ITI, polytechnic and TVET carpentry shops. Science Lab Supplies supplies it from Ambala, India to institutes, tender contractors and distributors.
Specifications
A 120 V motor, rated 1/2 HP (3/4 HP peak) in a cast iron housing, drives the belt at 1150 FPM and the disc at 1780 RPM. The cast aluminium table tilts from 0 to 60 degrees and can be moved between belt and disc, and a mitre gauge sets angles up to 60 degrees left or right.
| Parameter | Value |
|---|---|
| SKU | LSK-WWM-10637 |
| Sanding belt | 4 in W x 36 in L (approx. 100 x 915 mm), 1150 FPM |
| Sanding disc | 6 in (approx. 152 mm) dia., 1780 RPM |
| Motor | 120 V, 1/2 HP rated, 3/4 HP peak, cast iron housing |
| Table | Cast aluminium, tilts 0 to 60 degrees, for belt or disc |
| Mitre gauge | 0 to 60 degrees left/right |
| Switch | Toggle safety switch |
| Grit supplied | 80 |
| Overall size | 24-3/4 in H x 15 in W x 14 in D |
| Weight | 37.5 lb (approx. 17 kg); shipping 40.05 lb |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Disc Sander Belt
Trainees use the machine to shape and smooth parts after sawing: fairing curves on the belt, squaring ends and sanding bevels on the disc against the tilted table and mitre gauge. It suits the ITI Carpenter trade, TVET woodwork modules and model-making work in polytechnics.
- ITI Carpenter trade: finishing curved and straight edges after cutting.
- TVET woodwork modules: sanding accurate bevels and mitres.
- Design and model-making courses: shaping small parts on the disc.
Keep fingers clear of the abrasive, hold the work down firmly on the table, and wear eye and dust protection.
Standard Scope of Supply
The machine comes with one 80 grit sanding belt and one 80 grit sanding disc already included, together with the tilting table and mitre gauge. Spare belts, discs in other grits and a dust extractor can be listed on the quotation.
Packing, MOQ and Lead Time
Ask for a quotation for one sander or several for a whole workshop. The quotation gives the packing, delivery time and price for that quantity; because the motor is listed at 120 V, state your mains voltage so the offer matches your supply.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Bangladesh, Zambia, Rwanda, South Africa, Qatar and Sri Lanka. Enquire via the contact page or enquiry cart; see also the lab tender page.
Frequently Asked Questions
Is this a belt sander or a disc sander?
Both. One motor drives a 4 x 36 in belt and a 6 in disc, and the table can be repositioned to work with either.
Which abrasives are included?
One 80 grit sanding belt and one 80 grit sanding disc come with the machine. Finer or coarser grits can be added to the quotation.
What voltage does it run on?
The motor is listed at 120 V. Tell us your mains supply through the contact page so the quotation can address it.
Who supplies the Disc Sander Belt?
Science Lab Supplies supplies it from Ambala, India to ITI and TVET institutes, colleges, tender contractors and distributors of TVET workshop equipment.
Related Sanding Machines
These four machines extend a sanding section: a larger disc sander, a drum sander for wide boards, an orbital sander for final finishing, and a jig saw whose curved cuts are finished on the belt.
- Disc Sander — 12 in disc for larger end-grain work.
- Portable Drum Sander — levels wide panels.
- Orbital Sander Machine — final surface sanding.
- Jig Saw Machine — cuts the curves the belt then smooths.
Browse the full Woodworking Workshop Machines range or all TVET lab equipment.
Last updated: 25 September 2026
