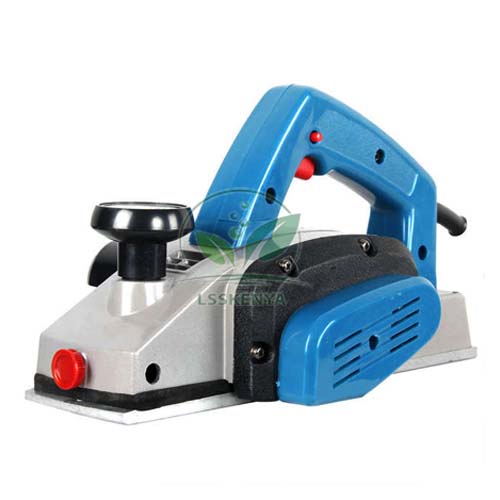

Portable Planer
Product Code : LSK-WWM-10643
Portable Planer (SKU LSK-WWM-10643) is a hand-held electric planer for reducing, levelling and chamfering timber: trimming doors, fitting frames and smoothing rough boards where a stationary planer is not practical. Carpentry and construction classes in ITI, polytechnic and TVET institutes use it for fitting and site practice. Science Lab Supplies supplies it from Ambala, India to institutes, tender contractors and distributors.
Specifications
A 6.5 A motor gives a no-load speed of 16,500 RPM to a two-blade cutter. A ratcheting knob sets depth from 0 to 3/32 in (2.6 mm) within one revolution, and a bevel guide fence holds a constant angle from 0 to 45 degrees while a shield covers the unused part of the blade.
| Parameter | Value |
|---|---|
| SKU | LSK-WWM-10643 |
| Motor | 6.5 A |
| No-load speed | 16,500 RPM |
| Depth of cut | 0 to 3/32 in (2.6 mm), ratcheting knob |
| Bevel fence | 0 to 45 degrees, with blade shield |
| Blade system | 2 blades; convertible to large high-speed steel blades |
| Chip ejection | Selectable left or right |
| Other features | Spring-loaded park rest stand, ambidextrous lock-off button |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Portable Planer
Trainees use the planer to take timber down to a line, ease sticking doors, chamfer edges with the bevel fence and remove saw marks. It teaches depth setting, even pressure and safe handling of a fast cutter, and suits carpentry, joinery and building-construction courses.
- ITI Carpenter trade: fitting doors, frames and shelves.
- TVET construction carpentry modules: trimming joists and studs on site.
- TVET joinery modules: chamfers and bevels up to 45 degrees.
The park rest keeps the blade off the bench when the tool is set down and the lock-off button helps avoid accidental starts; trainees should still unplug it before blade changes and wear eye protection.
Standard Scope of Supply
The Portable Planer is supplied as a single unit as described above, with its two-blade system and bevel guide fence; any optional accessories, spare blades or high-speed steel conversion blades are listed on the quotation.
Packing, MOQ and Lead Time
Quotations can be for one planer or for a full set of workshop tools for technical training institutes. Each states packing, delivery time and price for the quantity requested; spare blades can be added so the class is not held up by blunt cutters.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Vietnam, Malaysia, Peru, Egypt, Iraq and Nigeria. Enquire via the contact page or enquiry cart; see also the lab tender page.
Frequently Asked Questions
How deep does it cut per pass?
From 0 to 3/32 in (2.6 mm), set with a ratcheting knob that covers the full range in one revolution, so there is no need to re-zero.
Can it plane a bevel?
Yes. The bevel guide fence holds any angle from 0 to 45 degrees along the full length of the workpiece.
Where do the shavings go?
Chip ejection can be directed to the left or right, so shavings are thrown away from the user.
Who supplies the Portable Planer?
Science Lab Supplies supplies it from Ambala, India to ITI and TVET institutes, colleges, tender contractors and distributors of TVET workshop equipment.
Related Planing and Shaping Tools
A hand planer works alongside a stationary jointer for long straight edges, a router for profiles, a drum sander for final levelling and a circular saw for rough sizing. These four items can be quoted together.
- Jointer Planer — stationary planing of faces and edges.
- Electric Router — grooves and edge profiles.
- Portable Drum Sander — smooths planed boards.
- Portable Circular Saw — rough sizing before planing.
